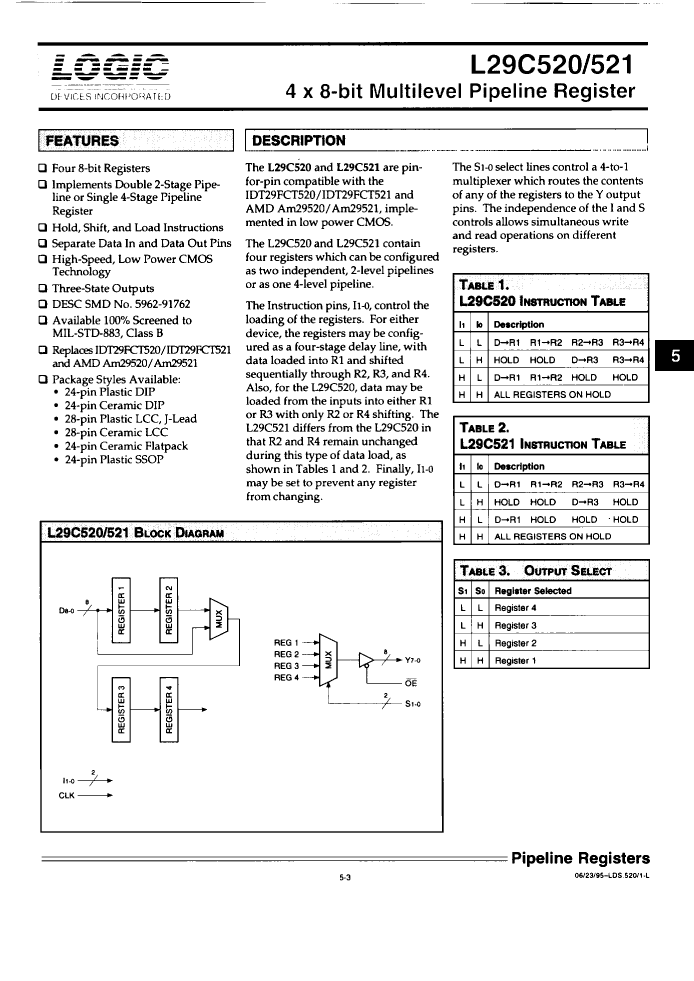

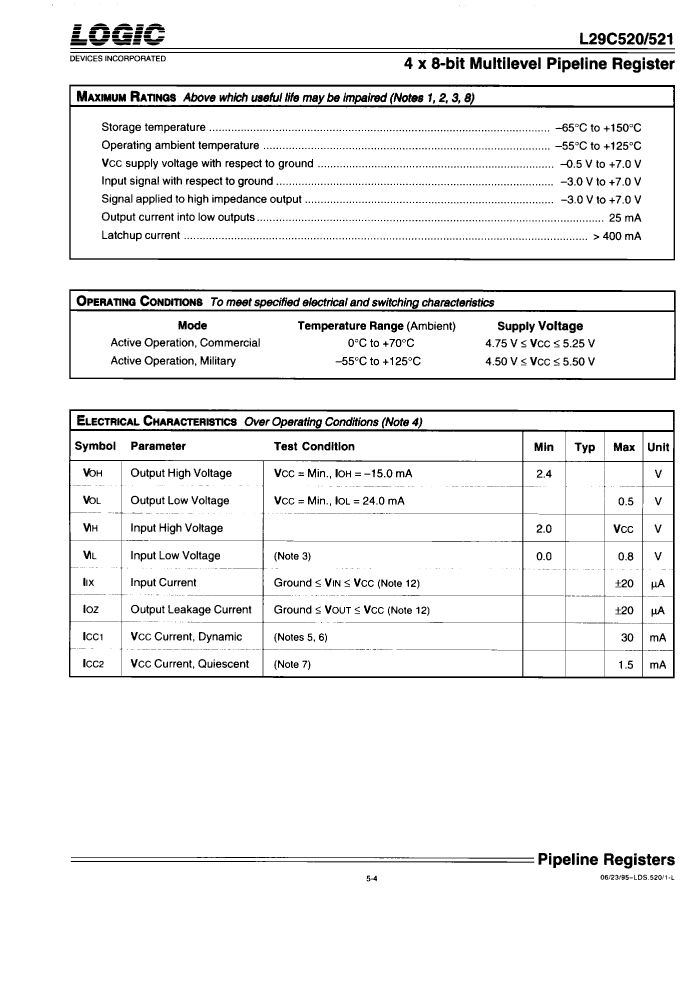

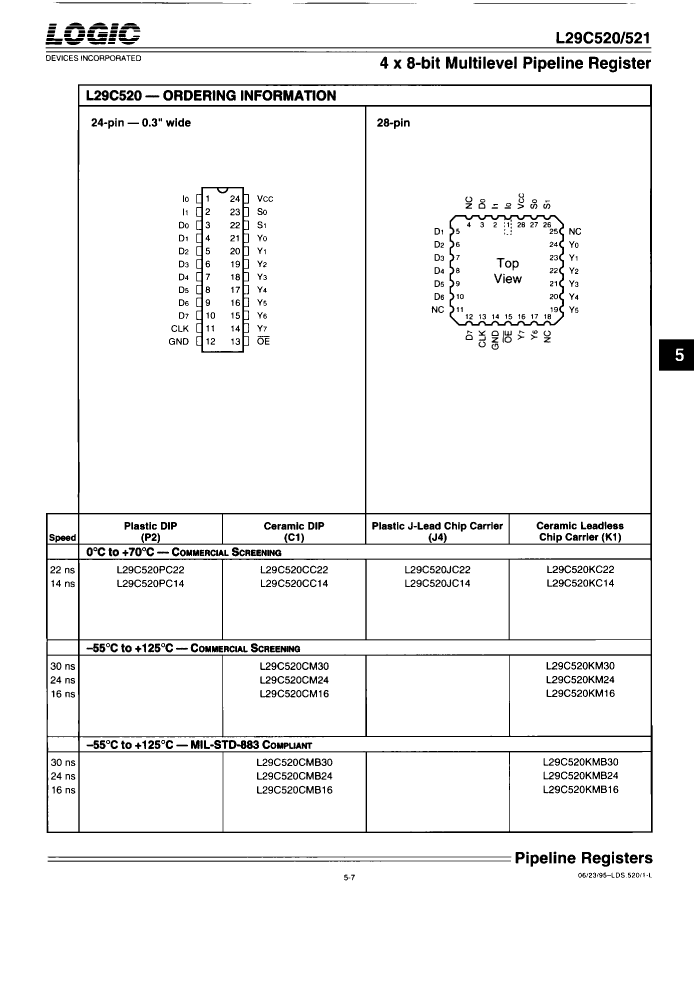

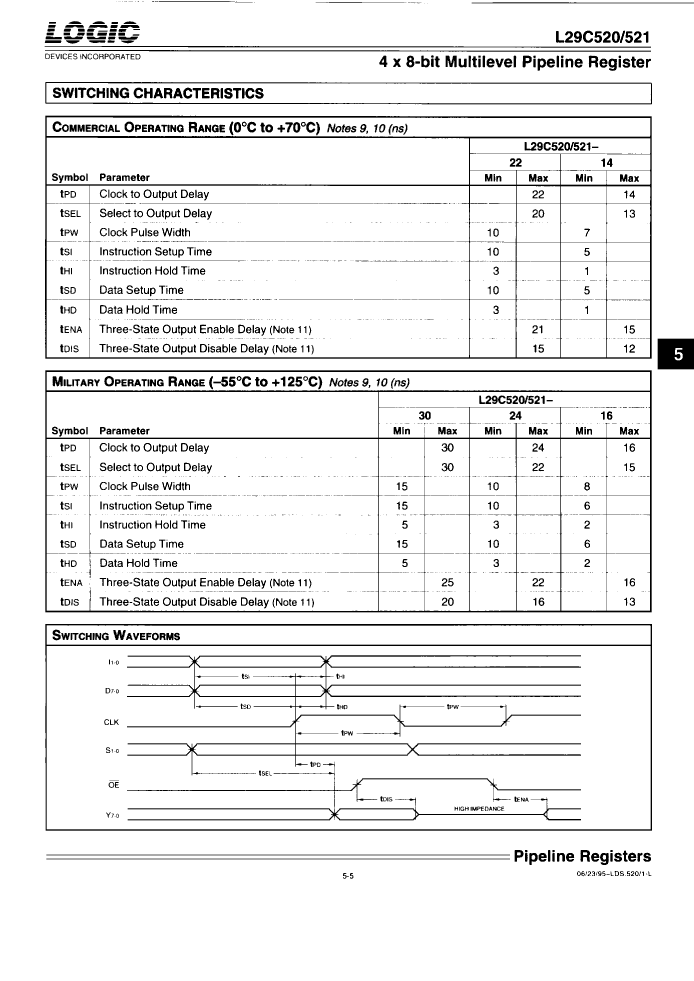

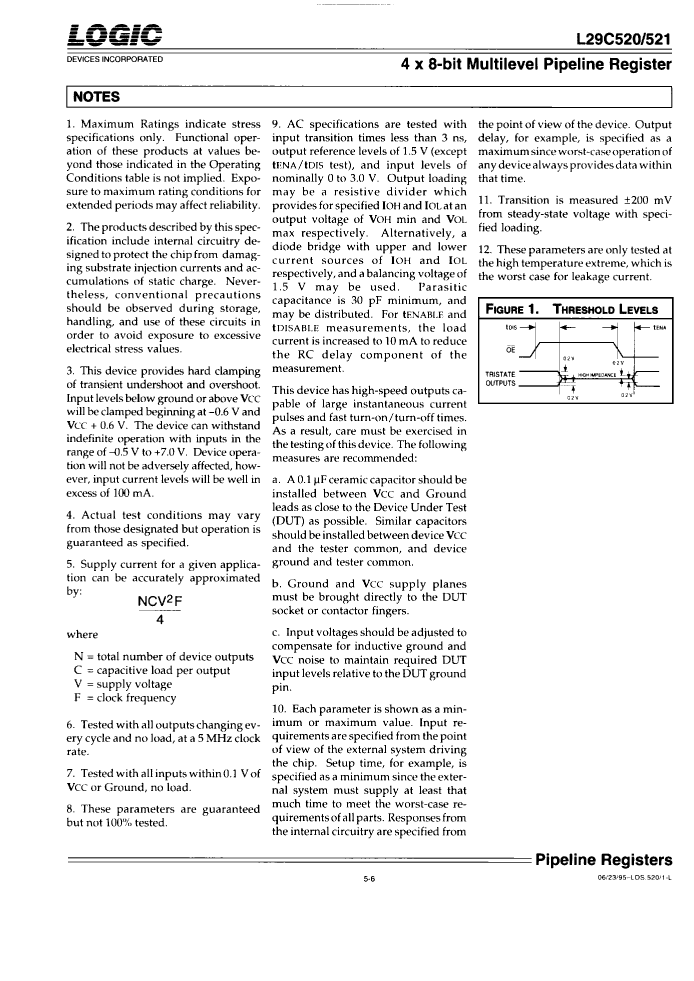

Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | LOGIC Devices |
| Parts packaging code | DIP |
| package instruction | 0.300 INCH, CERAMIC, DIP-24 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| ECCN code | 3A001.A.2.C |
| Other features | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ |
| boundary scan | NO |
| External data bus width | 8 |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| length | 31.75 mm |
| low power mode | NO |
| Humidity sensitivity level | 3 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output data bus width | 8 |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 30 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, PIPELINE REGISTER |
| Base Number Matches | 1 |
| 5962-9176205MLA | 5962-9176204M3C | 5962-9176201MLA | 5962-9176201M3C | 5962-9176203MLA | 5962-9176204MLA | 5962-9176202MLA | 5962-9176203M3C | 5962-9176205M3C | 5962-9176202M3C | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24 | Pipeline Register, 8-Bit, CMOS, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, LCC-28 | Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24 | Pipeline Register, 8-Bit, CMOS, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, LCC-28 | Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24 | Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24 | Pipeline Register, 8-Bit, CMOS, CDIP24, 0.300 INCH, CERAMIC, DIP-24 | Pipeline Register, 8-Bit, CMOS, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, LCC-28 | Pipeline Register, 8-Bit, CMOS, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, LCC-28 | Pipeline Register, 8-Bit, CMOS, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, LCC-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | QLCC | DIP | QLCC | DIP | DIP | DIP | QLCC | QLCC | QLCC |
| package instruction | 0.300 INCH, CERAMIC, DIP-24 | QCCN, LCC28,.45SQ | DIP, DIP24,.3 | QCCN, LCC28,.45SQ | 0.300 INCH, CERAMIC, DIP-24 | DIP, DIP24,.3 | DIP, DIP24,.3 | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ | QCCN, LCC28,.45SQ |
| Contacts | 24 | 28 | 24 | 28 | 24 | 24 | 24 | 28 | 28 | 28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Other features | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ | MULTIPLEXED OUTPUT; ICC SPECIFIED @ 5MHZ |
| boundary scan | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | R-GDIP-T24 | S-XQCC-N28 | R-GDIP-T24 | S-XQCC-N28 | R-GDIP-T24 | R-GDIP-T24 | R-GDIP-T24 | S-XQCC-N28 | S-XQCC-N28 | S-XQCC-N28 |
| JESD-609 code | e0 | e4 | e0 | e4 | e0 | e0 | e0 | e4 | e4 | e4 |
| length | 31.75 mm | 11.43 mm | 31.75 mm | 11.43 mm | 31.75 mm | 31.75 mm | 31.75 mm | 11.43 mm | 11.43 mm | 11.43 mm |
| low power mode | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Humidity sensitivity level | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 24 | 28 | 24 | 28 | 24 | 24 | 24 | 28 | 28 | 28 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output data bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Package body material | CERAMIC, GLASS-SEALED | UNSPECIFIED | CERAMIC, GLASS-SEALED | UNSPECIFIED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | QCCN | DIP | QCCN | DIP | DIP | DIP | QCCN | QCCN | QCCN |
| Encapsulate equivalent code | DIP24,.3 | LCC28,.45SQ | DIP24,.3 | LCC28,.45SQ | DIP24,.3 | DIP24,.3 | DIP24,.3 | LCC28,.45SQ | LCC28,.45SQ | LCC28,.45SQ |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | SQUARE |
| Package form | IN-LINE | CHIP CARRIER | IN-LINE | CHIP CARRIER | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 5.08 mm | 2.54 mm | 5.08 mm | 2.54 mm | 5.08 mm | 5.08 mm | 5.08 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Maximum slew rate | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA | 30 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | YES | NO | NO | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | Gold (Au) | TIN LEAD | Gold (Au) | TIN LEAD | TIN LEAD | TIN LEAD | Gold (Au) | Gold (Au) | Gold (Au) |
| Terminal form | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | DUAL | QUAD | DUAL | DUAL | DUAL | QUAD | QUAD | QUAD |
| width | 7.62 mm | 11.43 mm | 7.62 mm | 11.43 mm | 7.62 mm | 7.62 mm | 7.62 mm | 11.43 mm | 11.43 mm | 11.43 mm |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER | DSP PERIPHERAL, PIPELINE REGISTER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
