DVETR2805D

Description
DC-DC Regulated Power Supply Module, 2 Output, 30W, Hybrid, HERMETIC SEALED PACKAGE-10
CategoryPower/power management    The power supply circuit
File Size557KB，1 Pages
ManufacturerVPT Inc
Download Datasheet Parametric Compare View All

DVETR2805D Overview

DC-DC Regulated Power Supply Module, 2 Output, 30W, Hybrid, HERMETIC SEALED PACKAGE-10

DVETR2805D Parametric

Parameter NameAttribute value
MakerVPT Inc
Parts packaging codeMODULE
package instruction,
Contacts10
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresADDITIONAL -5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage50 V
Minimum input voltage15 V
Nominal input voltage28 V
JESD-30 codeR-CDMA-P10
Number of functions1
Output times2
Number of terminals10
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output voltage5.05 V
Minimum output voltage4.925 V
Nominal output voltage5 V
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
Maximum seat height11.56 mm
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal formPIN/PEG
Terminal locationDUAL
Maximum total power output30 W
Fine-tuning/adjustable outputNO
Base Number Matches1

Preview

Download Datasheet

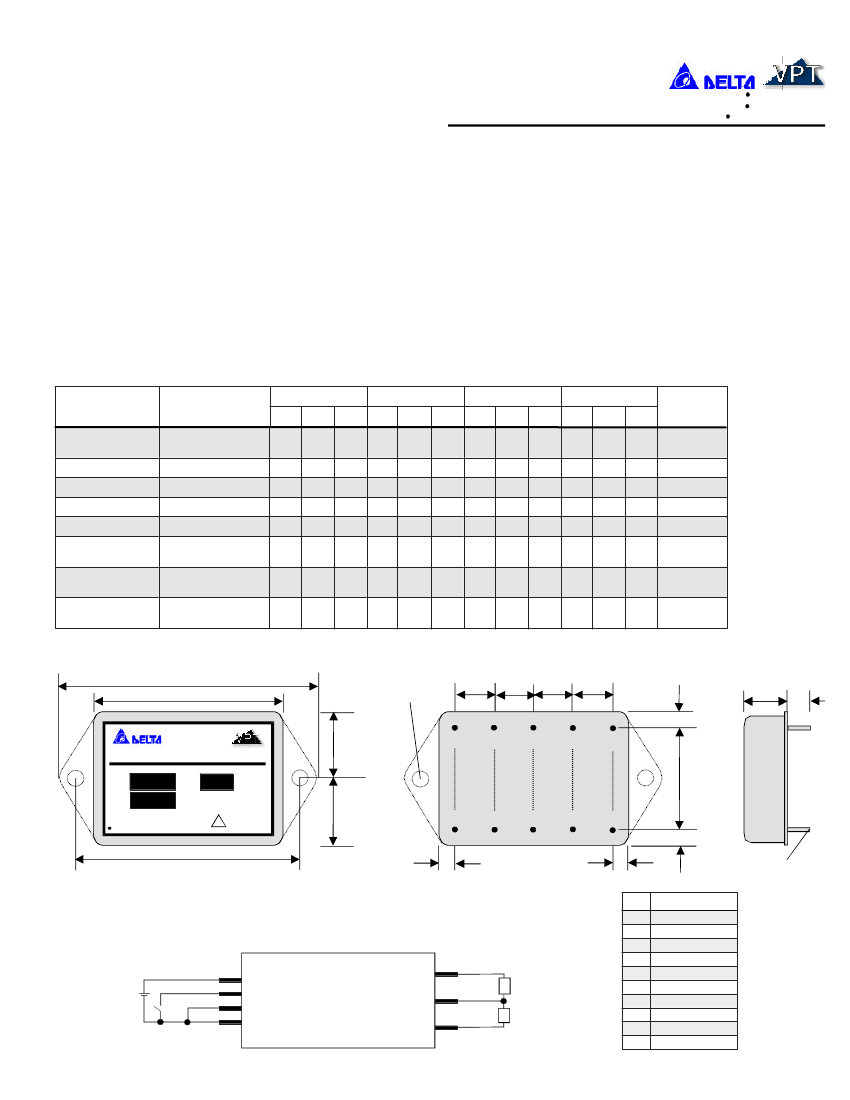

DVETR
DVETR2800D Series
!
!
!
!
!
!
!
!
!
Ph (540) 552-5000 Fx (540) 552-5003
www.vpt-inc.com info@vpt-inc.com
P.O. Box 253
Blacksburg, VA 24063
DC/DC Converters with Built-In Internal EMI Filter
15V to 50V Input Range with 80V Transient
5V, 12V and 15V Dual Outputs Available
Up to 30WOutput Power
Fault Tolerant Design without OPTO Device
Built-In Internal EMI Filter Meets MIL-STD-461C CE01, CE03, CE07, CS01 and
CS02, and MIL-STD-461D CE101, CE102, and CS101
Radiation Hardened Version Available
Low Profile (.415 inches) and Light Weight (50g) Hermetic Package
-55°C to +125°C Case Temperature Operation
500Vdc Input/Output Isolation
Electrical Performance at 25
°
C
DVETR2805D
Parameter
Input Voltage
Output Voltage
Output Power
Efficiency
Output Ripple
4
2
2
DVETR2812D
Min
15
Typ
28
Max
50
80
DVETR2814D
Min
15
DVETR2815D
Min
15
Conditions
Continuous
Transient
1
Full Load
Vin: 15-50V
Vin: 28V, Full Load
Vin: 28V, Full Load
No Load to Full +Vo
-Vo
Vin: 15 to 50V
Vin: 15 to 50V
+Vo
-Vo
+Vo
-Vo
Min
15
4.95
0
73
Typ
28
5.00
Max
50
80
Typ
28
Max
50
80
Typ
28
Max
50
80
Units
Vdc
Vdc
W
%
5.05 11.88 12.00 12.12 13.86 14.00 14.14 14.85 15.00 15.15
30
0
78
80
20
50
20
50
20
300
82
60
10
50
10
50
10
200
120
20
100
20
100
20
400
30
0
79
83
70
10
60
10
60
10
250
140
20
120
20
120
20
500
30
0
80
84
75
10
50
10
60
10
250
150
20
100
20
120
20
500
30
3
77
40
10
25
10
25
10
150
mVpp
mV
mV
mV
Load Regulation
Line Regulation
Cross Regulation
5
1. Transient time up to 1 second. 2. Equal load at each output. 3. Each output can only supply 70% of power.
4. Bandwidth is limited to 10MHz. 5. 70% load at one output and 30% load at the other output.
2.700”
1.940”
4 X 0.400”
0.162”DIA
0.172”
0.415” 0.250”
DVETR2815D
D/C
S/N
S/C
0.672”
1
2
3
4
5
1.000”
0.672”
CAGE: OZB26
10
9
8
7
6
0.172”
2.360”
(TOP VIEW)
0.040”DIA
0.170”
(BOTTOM VIEW)
0.170”
(SIDE VIEW)
28V IN
INH
-S
OUT COM
MAIN OUTPUT
+S
CASE
N/C
N/C
IN COM
Pin# Description
Typical Application
DVETR2815D
1
8
9
10
28V
28V IN
INH
IN COM
IN COM
+OUTPUT
OUT COM
-OUTPUT
3
4
5
Load
Load
1
2
3
4
5
6
7
8
9
10

DVETR2805D Related Products

DVETR2805D DVETR2812D DVETR2815D
Description DC-DC Regulated Power Supply Module, 2 Output, 30W, Hybrid, HERMETIC SEALED PACKAGE-10 DC-DC Regulated Power Supply Module, 2 Output, 40W, Hybrid, HERMETIC SEALED PACKAGE-10 DC-DC Regulated Power Supply Module, 2 Output, 40W, Hybrid, HERMETIC SEALED PACKAGE-10
Maker VPT Inc VPT Inc VPT Inc
Parts packaging code MODULE MODULE MODULE
Contacts 10 10 10
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features ADDITIONAL -5V OUTPUT AVAILABLE ADDITIONAL -12V OUTPUT AVAILABLE ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 50 V 50 V 50 V
Minimum input voltage 15 V 15 V 15 V
Nominal input voltage 28 V 28 V 28 V
JESD-30 code R-CDMA-P10 R-CDMA-P10 R-CDMA-P10
Number of functions 1 1 1
Output times 2 2 2
Number of terminals 10 10 10
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Maximum output voltage 5.05 V 12.18 V 15.3 V
Minimum output voltage 4.925 V 11.82 V 14.7 V
Nominal output voltage 5 V 12 V 15 V
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 11.56 mm 11.56 mm 11.56 mm
surface mount NO NO NO
technology HYBRID HYBRID HYBRID
Temperature level MILITARY MILITARY MILITARY
Terminal form PIN/PEG PIN/PEG PIN/PEG
Terminal location DUAL DUAL DUAL
Maximum total power output 30 W 40 W 40 W
Fine-tuning/adjustable output NO NO NO
Base Number Matches 1 1 1
