CMSH1-40M (5000PC REEL)

Description
Schottky (diode and rectifier) ​​sma 40v 1A schottky
Categorysemiconductor    Discrete semiconductor
File Size278KB，2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

CMSH1-40M (5000PC REEL) Overview

Schottky (diode and rectifier) ​​sma 40v 1A schottky

CMSH1-40M (5000PC REEL) Parametric

Parameter NameAttribute value
MakerCentral Semiconductor
Product CategorySchottky (diodes and rectifiers)
RoHStransition period
productSchottky Rectifiers
Peak reverse voltage4 V
Maximum surge current30 A
Installation styleSMD/SMT
Package/boxSMA

Preview

Download Datasheet
CMSH1-20M
CMSH1-40M
CMSH1-60M
CMSH1-100M
w w w. c e n t r a l s e m i . c o m
SURFACE MOUNT
SILICON SCHOTTKY RECTIFIER
1 AMP, 20 THRU 100 VOLTS
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMSH1-20M
Series 1.0 Amp Surface Mount Silicon Schottky
Rectifier is a high quality, well constructed, highly
reliable component designed for use in all types of
commercial, industrial, entertainment, computer, and
automotive applications. To order devices on 12mm
Tape and Reel (5000/13” Reel), add TR13 to suffix of
part number.
MARKING CODE: SEE MARKING CODE TABLE ON
FOLLOWING PAGE

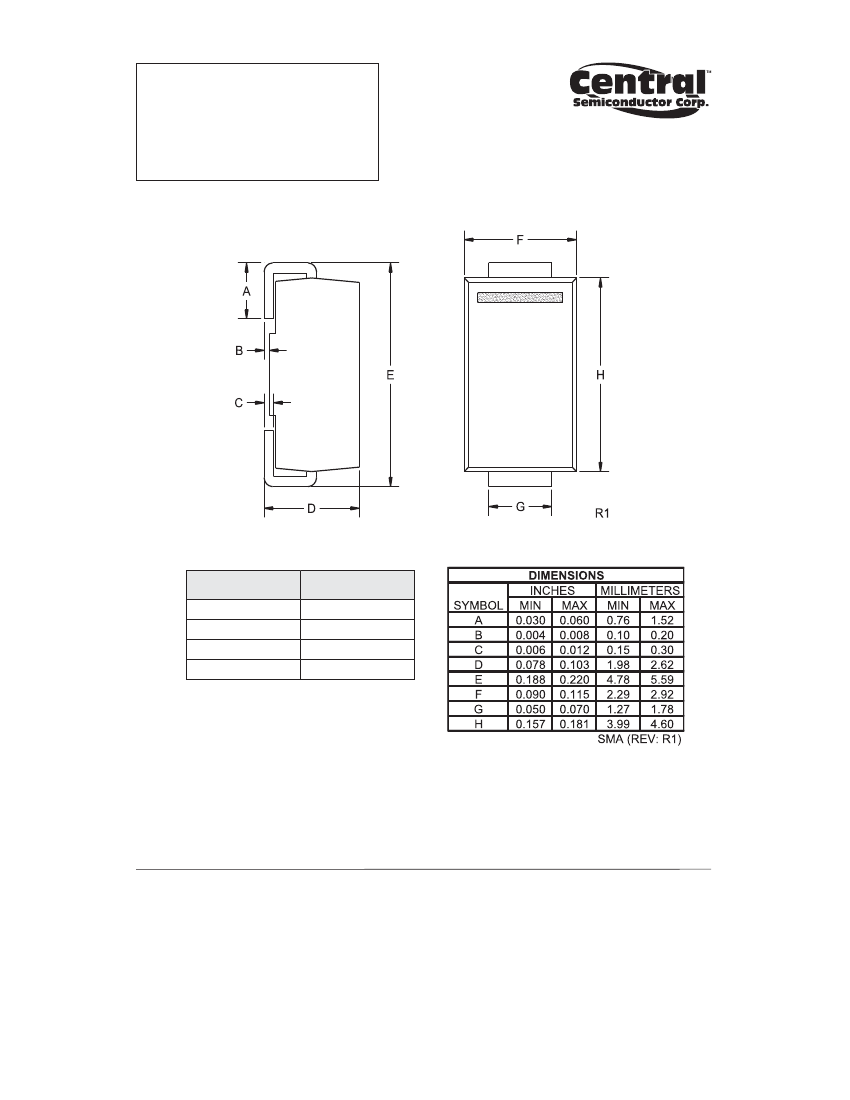

SMA CASE
FEATURES:
• Superior lot to lot consistency
• Low cost
• High reliability
• Special selections available
• “C” bend construction provides strain
relief when mounted on pc board
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TL=75°C)
Average Forward Current (TL=100°C)
Peak Forward Surge Current, tp=8.3ms
Operating and Storage Junction Temperature
Thermal Resistance
VRRM
VR
VR(RMS)
IO
IO
IFSM
TJ, Tstg
Θ
JL
30
-65 to +150
30
CMSH1
-20M
20
20
14
1.0
CMSH1
-40M
40
40
28
1.0
1.0
1.0
CMSH1 CMSH1
-60M
-100M
60
60
42
100
100
70
UNITS
V
V
V
A
A
A
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
IR
IR
VF
VF
VF
CJ
CJ
CJ
TEST CONDITIONS
VR=Rated VRRM
VR=Rated VRRM, TA=100°C
IF=1.0A (CMSH1-20M, -40M)
IF=1.0A (CMSH1-60M)
IF=1.0A (CMSH1-100M)
VR=4.0V, f=1.0MHz, (CMSH1-20M, -40M)
VR=4.0V, f=1.0MHz, (CMSH1-60M)
VR=4.0V, f=1.0MHz, (CMSH1-100M)
100
80
50
TYP
MAX
0.50
10
0.50
0.70
0.85
UNITS
mA
mA
V
V
V
pF
pF
pF
R5 (8-February 2010)

CMSH1-40M (5000PC REEL) Related Products

CMSH1-40M (5000PC REEL) CMSH1-60MLEADFREE CMSH1-20MTR13 CMSH1-20MTR13LEADFREE CMSH1-40MTR13LEADFREE CMSH1-40MLEADFREE CMSH1-100MTR13LEADFREE CMSH1-60MTR13LEADFREE CMSH1-100MLEADFREE CMSH1-20MLEADFREE
Description Schottky (diode and rectifier) ​​sma 40v 1A schottky Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 100V V(RRM), Silicon, SMA, 2 PIN Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, SMA, 2 PIN
Maker Central Semiconductor Central Semiconductor - - - - Central Semiconductor Central Semiconductor Central Semiconductor Central Semiconductor
Is it lead-free? - Lead free Contains lead Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? - conform to incompatible conform to conform to conform to conform to conform to conform to conform to
package instruction - SMA, 2 PIN SMA, 2 PIN R-PDSO-C2 SMA, 2 PIN SMA, 2 PIN SMA, 2 PIN SMA, 2 PIN R-PDSO-C2 R-PDSO-C2
Contacts - 2 2 2 2 2 2 2 2 2
Reach Compliance Code - not_compliant not_compliant compliant not_compliant not_compliant compliant compliant not_compliant compliant
ECCN code - EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features - HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
Configuration - SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials - SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type - RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code - R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
JESD-609 code - e3 e0 e3 e3 e3 e3 e3 e3 e3
Humidity sensitivity level - 1 - 1 1 1 1 1 1 1
Number of components - 1 1 1 1 1 1 1 1 1
Number of terminals - 2 2 2 2 2 2 2 2 2
Maximum operating temperature - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature - -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current - 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) - 260 NOT SPECIFIED 260 260 260 260 260 260 260
Certification status - Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage - 60 V 20 V 20 V 40 V 40 V 100 V 60 V 100 V 20 V
surface mount - YES YES YES YES YES YES YES YES YES
technology - SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY
Terminal surface - MATTE TIN (315) Tin/Lead (Sn/Pb) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) MATTE TIN (315) Matte Tin (Sn)
Terminal form - C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND
Terminal location - DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature - 10 NOT SPECIFIED 10 10 10 10 10 10 10
Base Number Matches - 1 1 1 1 1 1 - - -
