This document was generated on 11/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
Drawing (PDF)
Series
0526891071
Obsolete
0.50mm (.020") Pitch FFC/FPC Connector, SMT, Right Angle, Non-ZIF, Dual Contact
Style, Gold (Au) Contact Plating, 10 Circuits, Lead-free, High Barrier Packaging
526891075
Agency Certification
UL
E29179

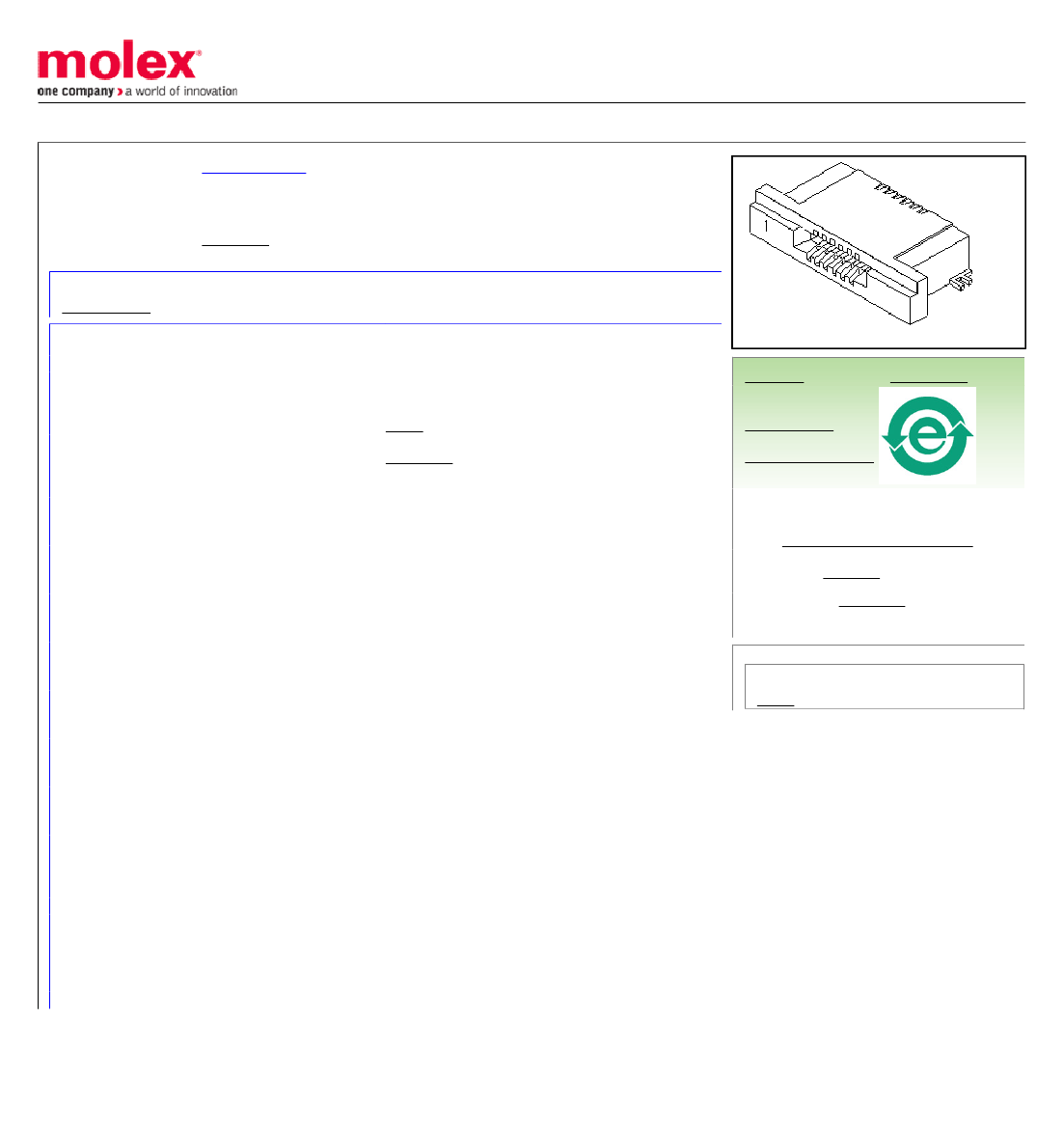

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Product Name
Replacement Part Number
FFC/FPC Connectors
52689
N/A
526891075
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
10
Natural
Dual
20
90° Angle
94V-0
2.00mm (.079")
Phosphor Bronze
Gold
Tin
Nylon
1
Right Angle
No
Yes
Embossed Tape on Reel
0.50mm (.020")
Yes
No
-20°C to +85°C
Surface Mount
FFC/FPC
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52689Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52689-041
SD-52689-048
