RS11203DN: DescriptionRESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0612, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size52KB，1 Pages; ManufacturerThin Film Technology Corp (TFT); Environmental Compliance

Download Datasheet Parametric Compare View All

RS11203DN Overview

RESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0612, CHIP, ROHS COMPLIANT

RS11203DN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Thin Film Technology Corp (TFT)
package instruction	, 0612
Reach Compliance Code	compli
ECCN code	EAR99
Component power consumption	0.064 W
The first element resistor	120000 Ω
Manufacturer's serial number	RS1
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Resistor type	ARRAY/NETWORK RESISTOR
size code	0612
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	75 V
Base Number Matches	1

Preview

Download Datasheet

View All

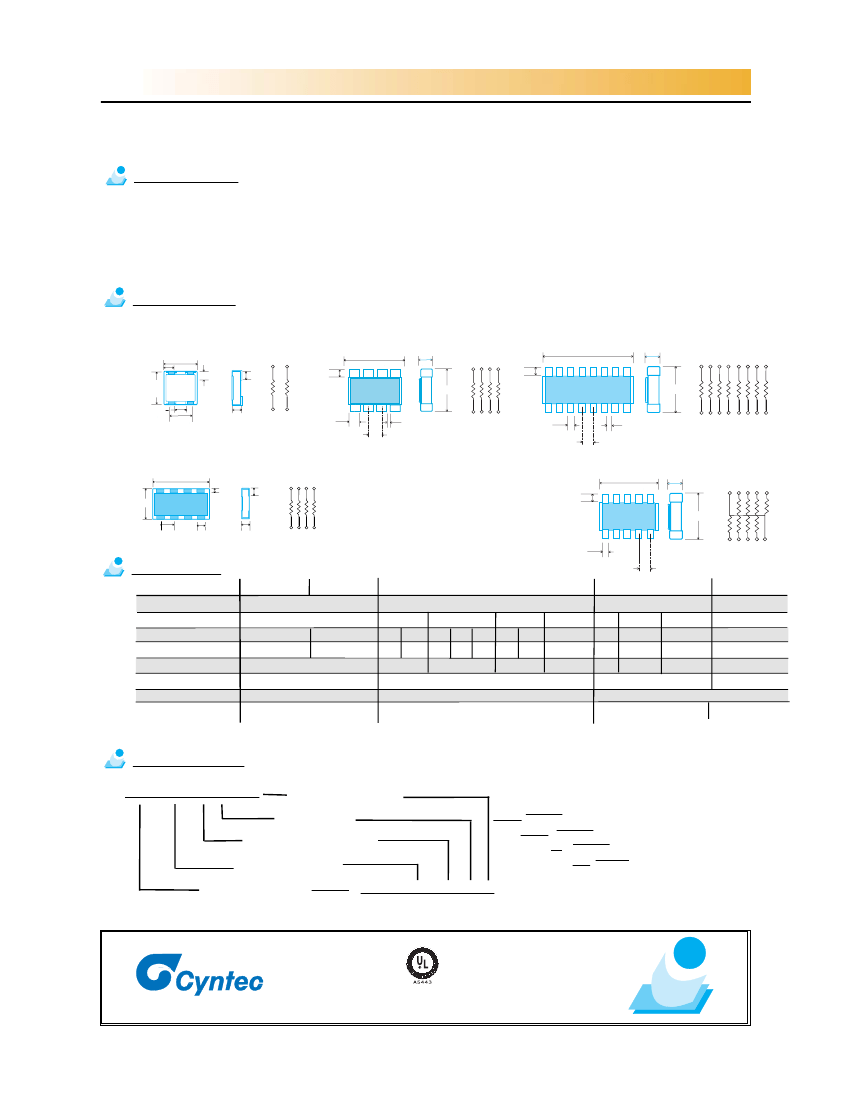

Chip Array Resistor Network

RS2N and RS4N Series

RS1, RS8A and RS8M Series

1.0 Description

The RS2N and RS4N chip resistor networks are in a surface mount chip array configuration, and offer high den-

sity. Termination applications include damping and signal pull-up/pull-down. The RS1, RS8A and RS8M resis-

tor networks are in a surface mount chip array configuration, and offer high density and low profile. They are for

automatic placement, have a symmetrical footprint, and are useable in a wide variety of soldering operations.

Tight tolerance (< ±1.0%) thin film resistors provide for lower crosstalk for high frequency applications.

2.0 Mechanical

RS8M

RS2N

1.0 ±0.05

0.15±0.1

1.0±0.05

0.25

3.2 ±0.3

0.3 ±0.2

0.4 ±0.1

4.0 ±0.3

0.4 ±0.1

1002

0.65

0.4±0.1

1.6 ±0.15

22R0

0.3 ±0.1

0.2 ±0.1

0.5

1.6 ±0.1

0.34±0.10

0.65 ±0.1

0.3 ±0.1

0.8

schematic

RS4N

2.0 ±0.1

0.22 ±.01

0.35 Max

RS8A

3.2 ±0.3

0.3 ±0.2

0.4 ±0.1

1.0 ±0.1

102

0.5

1002

0.35 ±0.1

0.4 ±0.1

1.6 ±0.15

schematic

dimension mm

0.3 ±0.1

0.635

3.0 Electrical

Type

Power/element

Resistance range

Resistance tolerance

(Code)

TCR (ppm/°C)

Max. operating voltage

Resistance series

Package

±1.0%

(F)

±250 ppm

25V

E-24

10,000 pcs/reel

RS2N

(0404)

RS4N

(0804)

10-91

(D)

(F)

RS1

(1206)

64 mW

100-33K

(B) (D)

±25 ppm

75V

E-24

5,000 pcs/reel

(F)

36K-330K 10-1 M

±5.0

(J)

(D) (F)

0

±5.0

(J)

63 mW

0, 10 to 1Mohm

±5.0%

(J)

64 mW

10-100

±1.0

(F)

schematic

RS8A

(1206)

64 mW

22-100K

±5.0

(J)

±250 ppm

50V

RS8M

(1606)

10-47K

±5.0

(J)

±0.5 ±1.0 ±0.1 ±0.5 ±1.0 ±0.5 ±1.0

±50 ppm

±100 ppm ±250 ppm

±50 ppm ±250 ppm

25V

E-24

4,000 pcs/reel

5,000 pcs/reel

4.0 Part Number

RS2N 1002 J 1

(N)

For RoHS compliant

products, add “N”

Outline type

Resistance tolerance

Resistance value

Product designator

RS4N 1002 J

RS1

Product designator

1002

Resistance value (E-24)

J

Resistance tolerance

(N)

For RoHS compliant

products, add “N”

2 N

ISO9001:1994

QS 9000:1995

Manufacturer(s) of the products described on this page are indicated by their respective logos.

38

RS11203DN Related Products

	RS11203DN	RS120R0JN	RS12703DN
Description	RESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0612, CHIP, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0612, CHIP, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, ISOLATED, SURFACE MOUNT, 0612, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	, 0612	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Component power consumption	0.064 W	0.064 W	0.064 W
The first element resistor	120000 Ω	20 Ω	270000 Ω
Manufacturer's serial number	RS1	RS1	RS1
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Network Type	ISOLATED	ISOLATED	ISOLATED
Number of components	1	1	1
Number of functions	4	4	4
Number of terminals	8	8	8
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR	TR	TR
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
size code	0612	0612	0612
surface mount	YES	YES	YES
technology	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	100 ppm/°C	250 ppm/°C	100 ppm/°C
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	0.5%	5%	0.5%
Operating Voltage	75 V	75 V	75 V
