5016453420

Description
2.00mm (.079") pitch igrid wire-to-board header, dual row, vertical, with pcb locator, 34 circuits, lead-free
CategoryThe connector    The connector
File Size114KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

5016453420 Overview

2.00mm (.079") pitch igrid wire-to-board header, dual row, vertical, with pcb locator, 34 circuits, lead-free

5016453420 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Reach Compliance Codeunknow
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT SPECIFIED
Contact materialNOT SPECIFIED
Manufacturer's serial number501645
Base Number Matches1

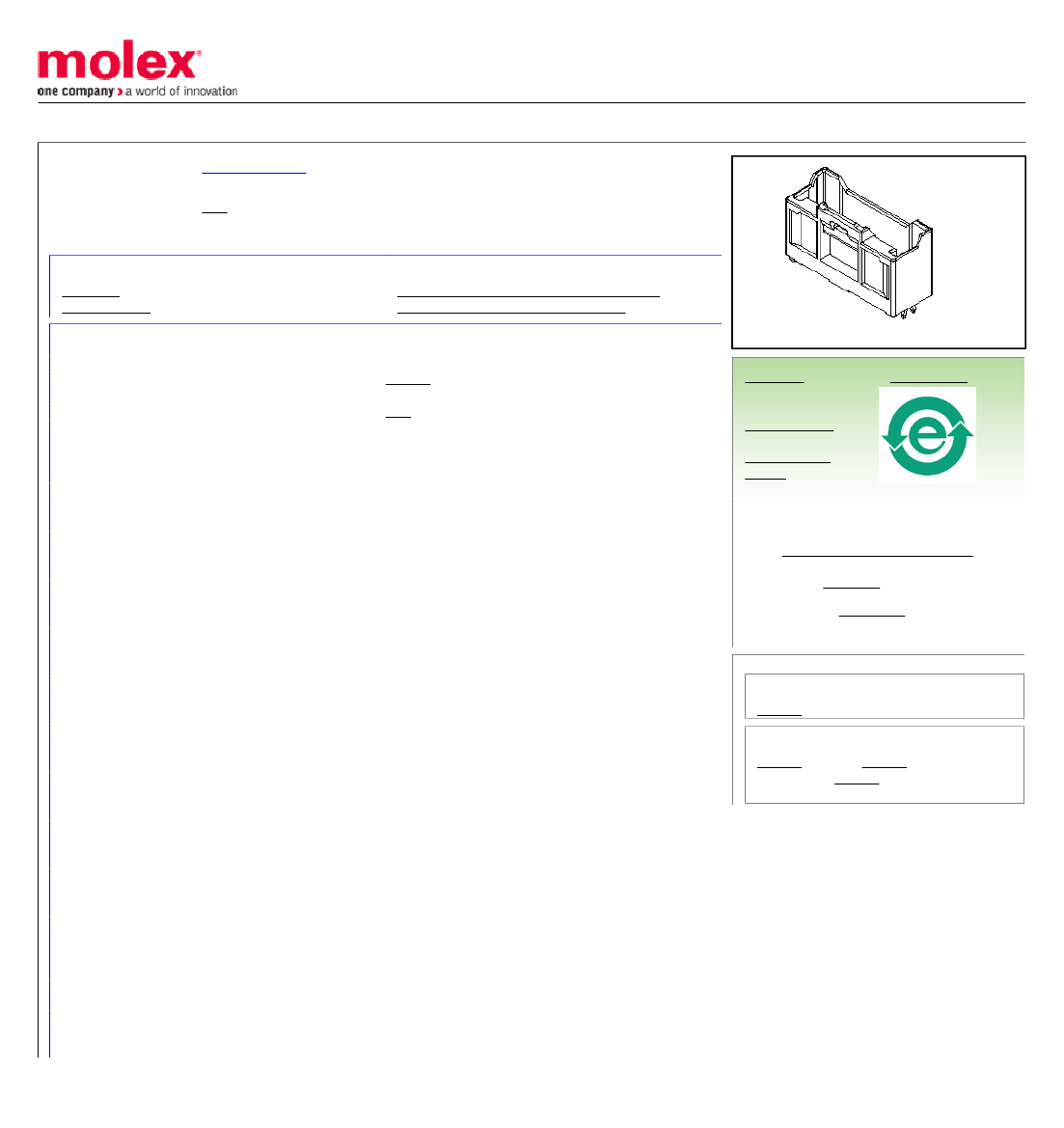

This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5016453420
Active
igrid
2.00mm (.079") Pitch iGrid™ Wire-to-Board Header, Dual Row, Vertical, with PCB
Locator, 34 Circuits, Lead-free
Documents:
3D Model

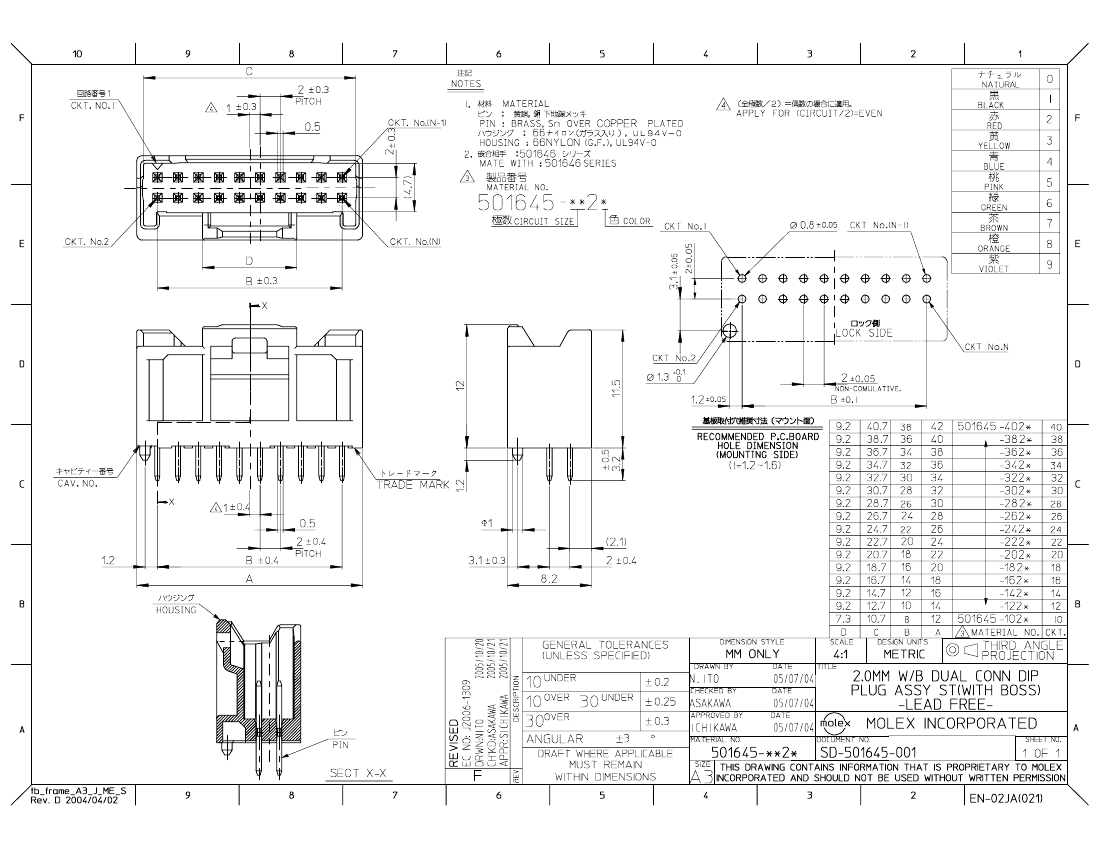

Drawing (PDF)
Product Specification PS-501646-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
501645
Wire-to-Board
igrid
iGrid™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
34
Natural
30
No
Yes
Yes
Brass
Tin
Tin
Nylon
2
Vertical
0.126 In
3.20 mm
Yes
None
0.047 In, 0.063 In
1.20 mm, 1.60 mm
Tray
0.079 In
2.00 mm
Yes
Yes
No
No
-25°C to +85°C
Through Hole
Search Parts in this Series
501645Series
Mates With
501646 Housing. 501647 Crimp Terminal
22-26 AWG. 501648 Crimp Terminal 26-28
AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
250V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Packaging Specification
SPK-501645-001

5016453420 Related Products

5016453420 5016453220
Description 2.00mm (.079") pitch igrid wire-to-board header, dual row, vertical, with pcb locator, 34 circuits, lead-free 2.00mm (.079") pitch igrid wire-to-board header, dual row, vertical, with pcb locator
Is it lead-free? Lead free Lead free
Reach Compliance Code unknow compli
Connector type BOARD CONNECTOR DIP CONNECTOR
Contact to complete cooperation NOT SPECIFIED TIN
Contact completed and terminated NOT SPECIFIED Tin (Sn)
Contact material NOT SPECIFIED BRASS
Base Number Matches 1 1
