WFC02R24S05LC: DescriptionDC/DC converters and regulators 2W reg. conv.; CategoryPower/power management The power supply circuit; File Size131KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

WFC02R24S05LC Overview

DC/DC converters and regulators 2W reg. conv.

WFC02R24S05LC Parametric

Parameter Name	Attribute value
Maker	Murata
Parts packaging code	DIP
package instruction	,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-PDMA-T8
JESD-609 code	e3
length	32.26 mm
Maximum load regulation	2%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.41 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	20.45 mm

Preview

Download Datasheet

View All

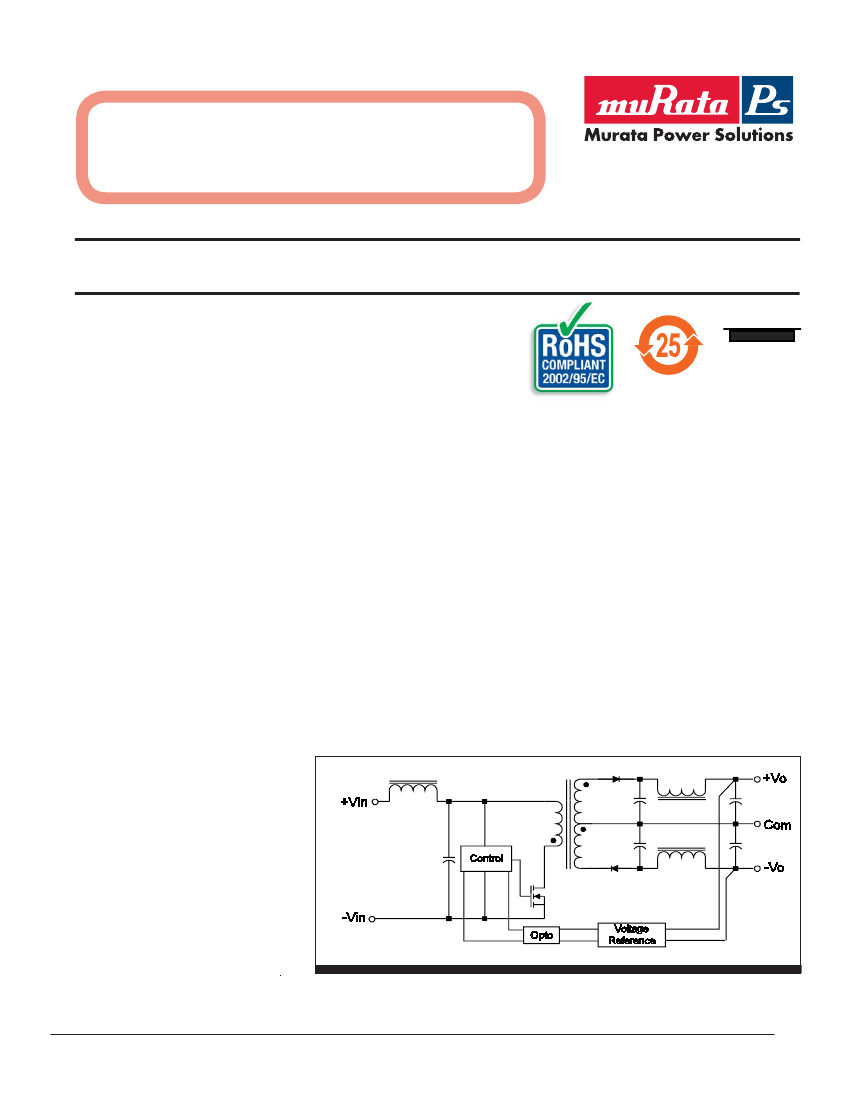

OBSOLETE PRODUCT

Contact factory for replacement model

WFC02RC

2 W

ATT

EGULATED

IDE

NPUT

ANGE

DC/

DC C

ONVERTER

FEATURES

RoHS Compliant

Low Cost, High Performance

Small DIP Package

Full Power to +85°C

Extended Temperature Range: -40°C to +85°C

Industry Standard Pinout

Full Short Circuit Protection

High Capacitive Loading Capability

Protected Against High Input Voltage

ISO9001

CERTIFIED

For full details go to

www.murata-ps.com/rohs

DESCRIPTION

The WFC02RC is a family of high performance DC/DC converters

that offers regulated outputs over input voltage ranges of 9-36V

and 18-72V while offering a wide operating temperature range

of -40°C to +85°C without derating.

Each WFC02RC contains input ﬁltering to minimize conducted

noise. The design utilizes surface mounted components, including

magnetics, to provide enhanced reliability.

The converter is designed to meet the requirements of EN60950

with the “L” pinout having 1,500 VDC isolation. All WFC02RC

converters are designed to withstand input voltage transients to

200% of nominal input voltage. An additional feature is the ability

of the WFC02RC to drive high capacitive loads.

SIMPLIFIED CIRCUIT DIAGRAM

APPLICATIONS

Telecommunications

Battery Powered Systems

Portable Instruments

Process Control Equipment

Transportation Equipment

Distributed Power Systems

Page 1

WFC02RC

REV B: RoHS

08/2007

WFC02R24S05LC Related Products

	WFC02R24S05LC	WFC02R48S15E	WFC02R48S05LC	WFC02R48S12LC	WFC02R24S05L	WFC02R48D15E	WFC02R48S12L	WFC02R48D15L	WFC02R24D05L
Description	DC/DC converters and regulators 2W reg. conv.	DC/DC Converter & Regulator 2W reg 48v - 15v	DC/DC converters and regulators 2W reg. conv.	DC/DC converter and regulator 48vin 12vout 152ma 2W regulated	DC/DC Converter & Regulator 2W reg 24v - 5V	DC/DC Converter & Regulator 2W reg 48v - +/-15v	DC/DC Converter & Regulator 2W reg 48v - 12v	DC/DC Converter & Regulator 2W reg 48v - +/-15v	DC/DC Converter & Regulator 2W reg 24v - +/-5V
Maker	Murata	Murata	Murata	-	Murata	Murata	Murata	Murata	-
Parts packaging code	DIP	DIP	DIP	MODULE	DIP	DIP	DIP	DIP	-
package instruction	,	DIP,	,	ZIP,	DIP,	DIP,	DIP,	DIP,	-
Contacts	8	24/12	8	-	24/8	24/12	24/8	24/8	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	-
Maximum input voltage	36 V	72 V	72 V	72 V	36 V	72 V	72 V	72 V	-
Minimum input voltage	9 V	18 V	18 V	18 V	9 V	18 V	18 V	18 V	-
Nominal input voltage	24 V	48 V	48 V	48 V	24 V	48 V	48 V	48 V	-
JESD-30 code	R-PDMA-T8	R-XDIP-P12	R-PDMA-T8	R-PDIP-T	R-XDIP-P8	R-XDIP-P12	R-XDIP-P8	R-XDIP-P8	-
JESD-609 code	e3	e0	e3	e3	e0	e0	e0	e0	-
length	32.26 mm	32.26 mm	32.26 mm	32.26 mm	32.26 mm	32.26 mm	32.26 mm	32.26 mm	-
Maximum load regulation	2%	2%	2%	2%	2%	2%	2%	2%	-
Number of functions	1	1	1	1	1	1	1	1	-
Output times	1	1	1	1	1	2	1	2	-
Number of terminals	8	12	8	8	8	12	8	8	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Maximum output voltage	5.15 V	15.45 V	15.45 V	12.36 V	5.15 V	15.45 V	12.36 V	15.45 V	-
Minimum output voltage	4.85 V	14.55 V	14.55 V	11.64 V	4.85 V	14.55 V	11.64 V	14.55 V	-
Nominal output voltage	5 V	15 V	15 V	12 V	5 V	15 V	12 V	15 V	-
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	MICROELECTRONIC ASSEMBLY	IN-LINE	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	10.41 mm	10.414 mm	10.41 mm	10.795 mm	10.414 mm	10.414 mm	10.414 mm	10.414 mm	-
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	-
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-
Terminal surface	MATTE TIN	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-
Terminal form	THROUGH-HOLE	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	SINGLE	DUAL	DUAL	DUAL	DUAL	-
Maximum total power output	2 W	2 W	2 W	2 W	2 W	2 W	2 W	2 W	-
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	-
width	20.45 mm	15.24 mm	20.45 mm	20.45 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	-
encapsulated code	-	DIP	-	ZIP	DIP	DIP	DIP	DIP	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
