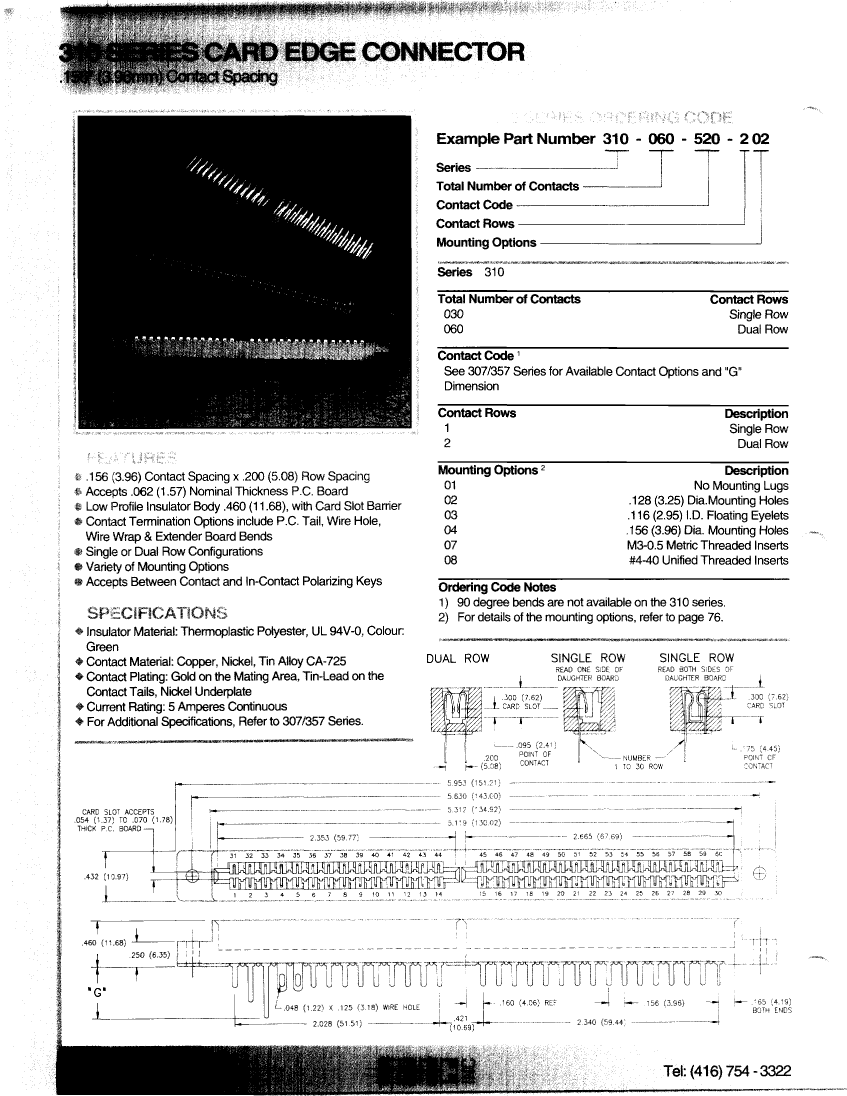

310-030-558-1 datasheet, PDF - EEWORLD Datasheet

310-030-558-1: DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric Compare View All

310-030-558-1 Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	LOW PROFILE, POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	310
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

	310-030-558-1	310-060-2	310-030-557-1	310-030-559-1	310-060-559-2	310-060-558-2
Description	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant
Other features	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	310	310	310	310	310	310
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	2	1	1	2	2
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	60	30	30	60	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
