MASWSS0148
GaAs SPST High Isolation Terminated Switch
0.3 - 4.0 GHz
Features
•
•
•
•
•
•
•
•
•
High Isolation: 55 dB @ 2 GHz
Insertion Loss: 1.6 dB @ 2 GHz
Terminated RF Input in Isolation State
Single Positive Control
CMOS Compatible Logic
Lead-Free 3 mm 12-Lead PQFN Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
RFin
C
Block
10 K
V
DD
Rev. V1
Schematic with Off-Chip Components
2
1
V
CTRL
C
Bypass
Description
M/A-COM’s MASWSS0148 is a GaAs monolithic
single pole single throw (SPST) terminated switch in
a lead-free 3 mm 12-lead PQFN plastic package.
The MASWSS0148 is ideally suited for use where
low power consumption, small size and high isola-
tion are required.
Typical applications include PCS and GSM LO
switching, switch matrices and switched filter banks
in systems such as radio and cellular equipment.
The MASWSS0148 is fabricated using a mature 1-
micron gate length GaAs MESFET process. The
process features full chip passivation for increased
performance and reliability.
50
C
Block
RFout
2. VDD can be injected at either pin 5 or pin 11.
Pin Configuration
Pin No.
1
2
3
4
5
Function
No Connection
No Connection
No Connection
No Connection
RF Output
No Connection
Pin No.
7
8
9
10
11
12
13
Function
No Connection
No Connection
V
CTRL
No Connection
RF Input
No Connection
Paddle
3
Ordering Information
1
Part Number
MASWSS0148TR-3000
MASWSS0148SMB
Package
3000 piece reel
Sample Test Board
6
1. Reference Application Note M513 for reel size information.
3. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
Absolute Maximum Ratings
4,5
Parameter
Input Power
Operating Voltage (V
DD
, V
CTRL
)
Operating Temperature
Storage Temperature
Absolute Maximum
23 dBm (V
DD
= V
CTRL
= 5 V)
8.5 V
-40°C to +85°C
-65°C to +125°C
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0148
GaAs SPST High Isolation Terminated Switch
0.3 - 4.0 GHz
Parameter
Insertion Loss
7
Rev. V1
Electrical Specifications:
T
A
= 25°C, V
DD
= 5 V, V
CTRL
= 0 / 5 V, 100 pF capacitors, Z
0
= 50
Ω
6
Test Conditions
0.3 - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 3.0 GHz
3.0 - 4.0 GHz
1.0 GHz
2.0 GHz
3.0 GHz
4.0 GHz
Insertion Loss State, 0.3 - 4.0 GHz
Isolation State
—
10% to 90% RF
90% to 10% RF
50% Control to 90% RF
50% Control to 10% RF
In-Band
2-Tone, 5 MHz spacing, +10 dBm / tone
2-Tone, 5 MHz spacing, +10 dBm / tone
Input Power = 10 dBm
Input Power = 10 dBm
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
µS
µS
µS
µS
mV
dBm
dBm
µA
µA
Min.
—
—
—
—
50
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
1.5
1.6
1.7
1.75
55
55
48
40
17
20
27
3
0.3
3.5
0.4
20
72
49
1
1
Max.
1.7
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
6
6
Isolation
Return Loss
Input Return Loss
Input 1 dB Compression
Trise, Tfall
Ton, Toff
Transients
Input IP
2
Input IP
3
Current (I
CTRL
)
Current (I
DD
)
6. For positive voltage control, external DC blocking capacitors are required on all RF ports.
7. Insertion loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 300 MHz - 1 GHz, 39 pF for 0.5 GHz - 4 GHz.
Truth Table
8,9
V
CTRL
0
1
Handling Procedures
RFin
50
Ω
Termination
RFout
RFout
Open
RFin
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
8. Differential voltage, V(state 1) - V(state 0), must be
+2.5 V minimum and must not exceed 8.5 V.
9. 0 = 0 V ± 0.2 V, 1 = VDD = 2.5 V to 8.5 V
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0148
GaAs SPST High Isolation Terminated Switch
0.3 - 4.0 GHz

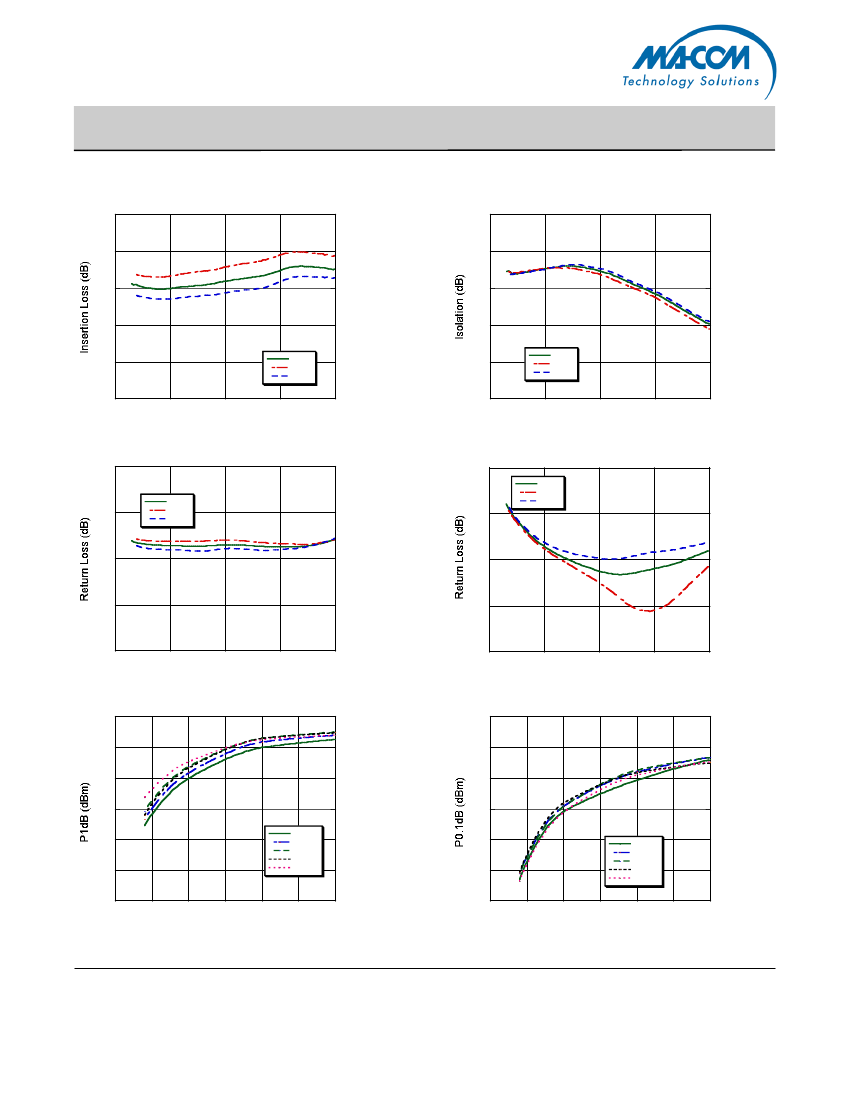

Typical Performance Curves (V
DD
= 5 V, V
CTRL
= 0 / 5 V, 100 pF capacitors)
Insertion Loss
2.5
Rev. V1
Isolation
70
2.0
60
1.5
50
1.0
40
0.5
+25°C
+85°C
-40°C
30
+25°C
+85°C
-40°C
0.0
0
1
2
3
4
20
0
1
2
3
4
Frequency (GHz)
Frequency (GHz)
Return Loss (Insertion Loss State)
0
Input Return Loss (Isolation State)
0
+25°C
+85°C
-40°C
10
+25°C
+85°C
-40°C
10
20
20
30
30
40
0
1
2
3
4
40
0
1
2
3
4
Frequency (GHz)
Frequency (GHz)
P1dB
30
25
20
P0.1dB
30
25
20
15
10
5
0
2.0
0.5 GHz
1.0 GHz
2.0 GHz
3.0 GHz
4.0 GHz
15
10
5
0
2.0
0.5 GHz
1.0 GHz
2.0 GHz
3.0 GHz
4.0 GHz
2.5
3.0
3.5
DD
4.0
4.5
5.0
2.5
3.0
3.5
DD
4.0
4.5
5.0
V
=V
CTRL
(V)
V
=V
CTRL
(V)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0148
GaAs SPST High Isolation Terminated Switch
0.3 - 4.0 GHz
Typical Performance Curves (V
DD
= 5 V, V
CTRL
= 0 / 5 V, 100 pF capacitors)
IP3
60
0.5 GHz
1.0 GHz
2.0 GHz
3.0 GHz
4.0 GHz
Rev. V1
50
40
30
20
2.0
2.5
3.0
3.5
DD
4.0
4.5
5.0
V
=V
CTRL
(V)

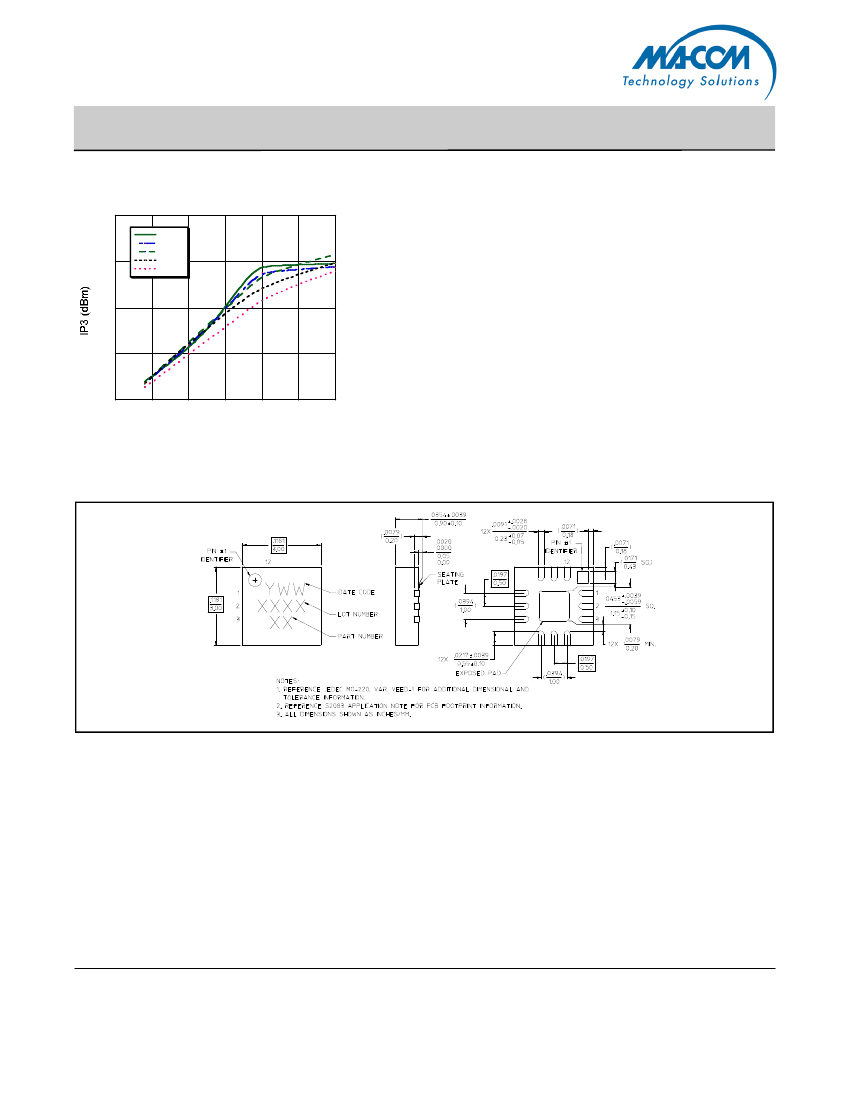

Lead-Free
3 mm 12-Lead PQFN
†
