39535-4009 Overview

pluggable terminal blocks 5.08mm euro header V vert ME HT blk 9ckt

39535-4009 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Pluggable Terminal Blocks
RoHS	yes
product	Pluggable Terminal Blocks
type	Wire-to-Board
Pitch	5.08 mm
Number of locations/contacts	9
Current rating	15 A
Voltage rating	300 V
Installation angle	Vertical
range of working temperature	- 40 C to + 140 C

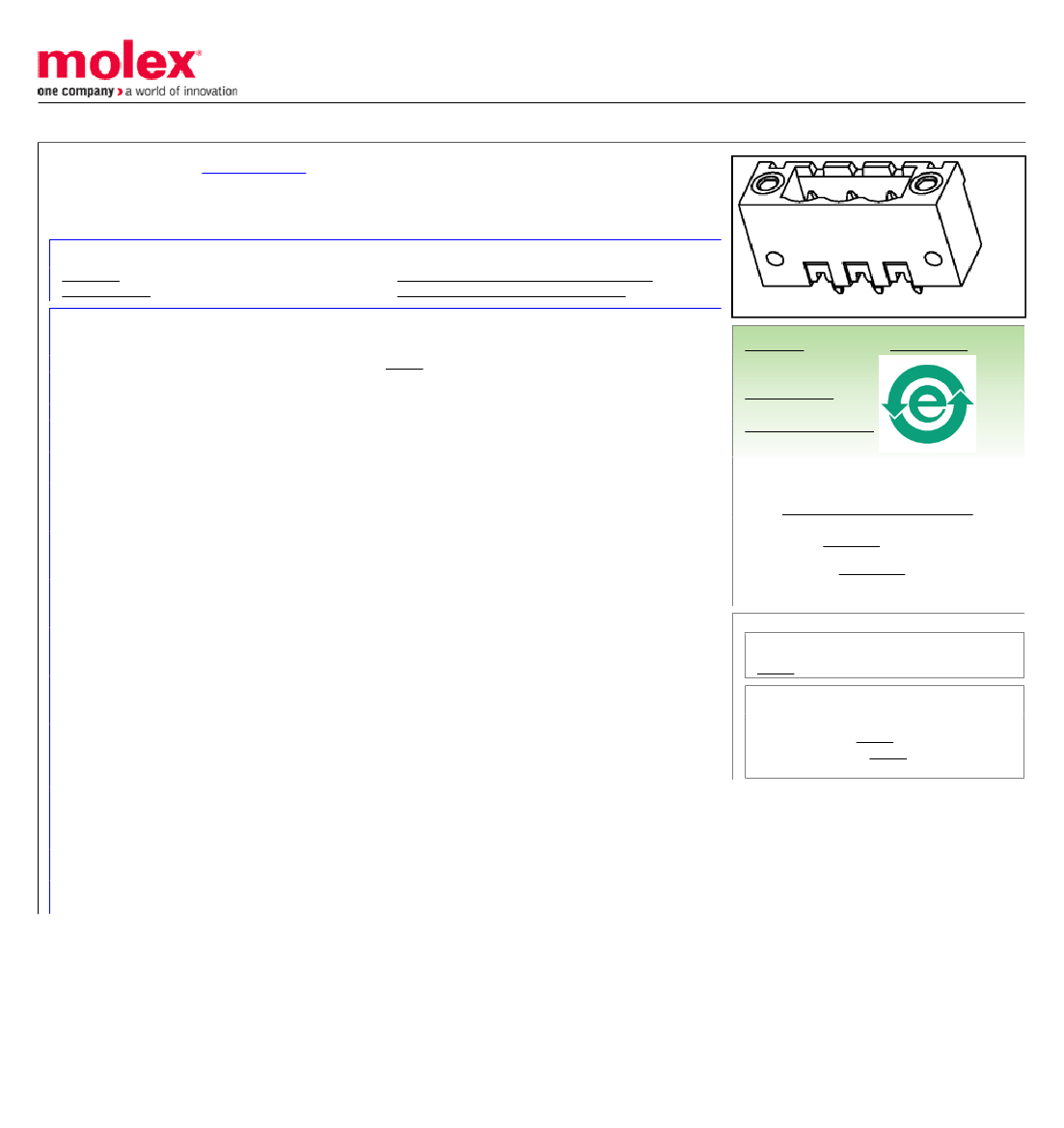

Preview

Download Datasheet

View All

This document was generated on 11/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395354009

Active

5.08mm (.200") Pitch Eurostyle™ Vertical PCB Header, with Threaded Retention

Inserts, Surface Mount Compatible, 9 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39535

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Vertical

5.08mm (.200")

3.20mm (.126")

5.08mm (.200")

Yes

Closed Ends

Yes

-40°C to +140°C

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

39535Series

Mates With

Most 5.08mm (.200") Pitch Industry

Standard Plugs, 39534 Horizontal Plug with

Retention Screws, 39537 Vertical Plug with

Retention Screws

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Country of Origin

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-39500-001

SD-39501-002, SD-39535-001

This document was generated on 11/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
