39352-0106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39352-0106

39352-0106: Descriptionpluggable terminal blocks SR bts 3.5 6 asy plu .5 6 asy pluG E gold; CategoryThe connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39352-0106 Overview

pluggable terminal blocks SR bts 3.5 6 asy plu .5 6 asy pluG E gold

39352-0106 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Pluggable Terminal Blocks
RoHS	yes
product	Pluggable Terminal Blocks
type	Wire-to-Board
Wire gauge range	24-16
Current rating	10 A
Voltage rating	300 V
Installation style	Wire
Installation angle	Horizontal
Termination type	Solde
Contact plating	Gold
Maximum wire gauge (AWG)	16
Minimum wire gauge (AWG)	24

Preview

Download Datasheet

View All

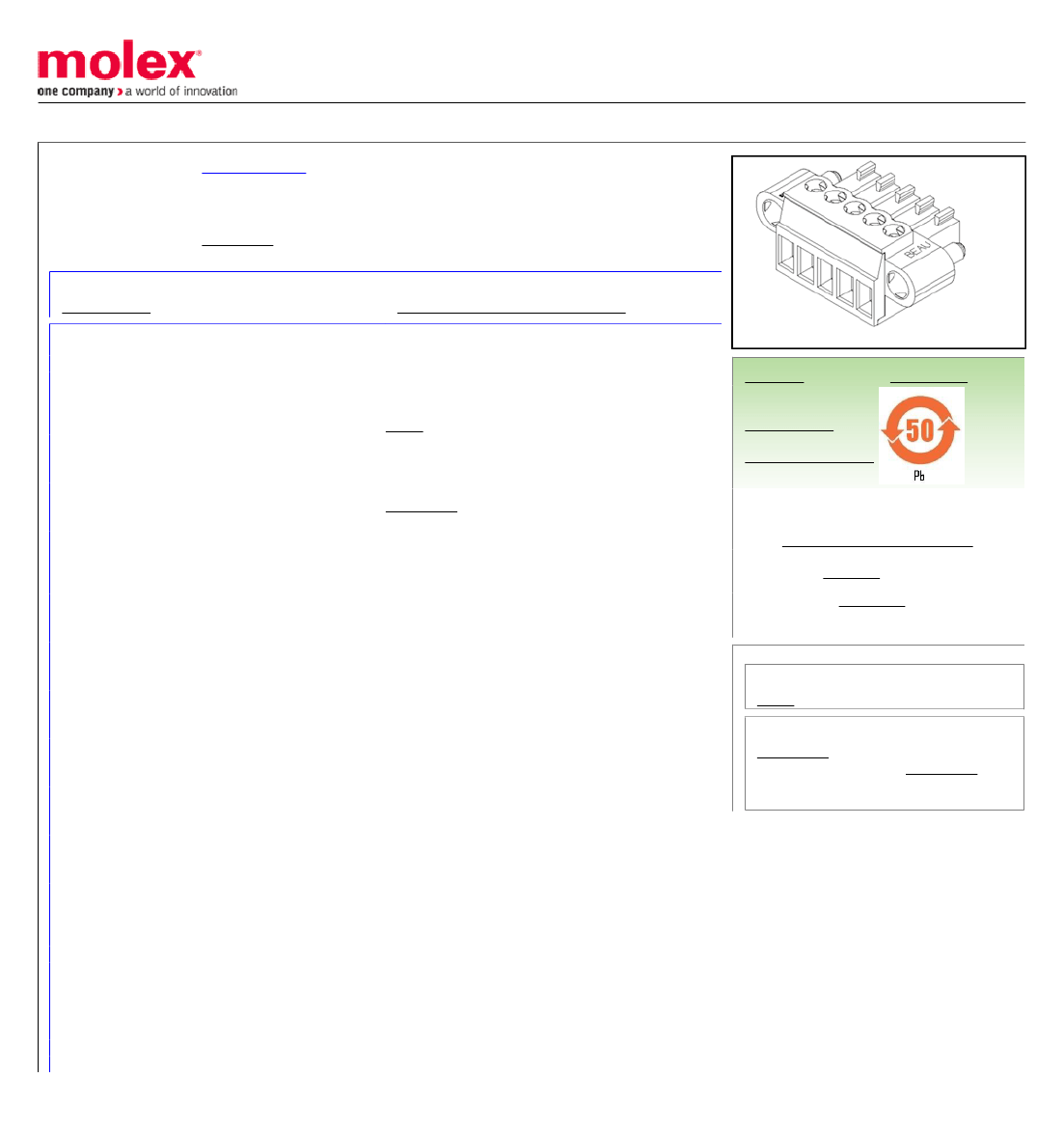

This document was generated on 11/29/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Replacement Part

Number:

Documents:

Drawing (PDF)

0393520106

Planned for Obsolescence

3.50mm (.138") Pitch Beau™ Eurostyle™ Horizontal Plug, with Retention Screws, Gold

(Au) Plated, 6 Circuits

39504-0506

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E48521

EU RoHS

RoHS Compliant by

Exemption

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Replacement Part Number

Type

Terminal Blocks

39352

Wire-to-Board

Plug

USA-198

Eurostyle™Pluggable

39504-0506

Euro Block

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Horizontal

94V-0

Yes

Beryllium Copper

Gold

Horizontal

N/A

3.50mm (.138")

0.508µm (20µ")

Yes

140°C

Surface Mount

16, 18, 20, 22, 24

0.20 - 1.00

Search Parts in this Series

39352Series

Mates With

39354-0106 vertical header with retention

inserts, gold (Au) plated, 39356-0106

horizontal header with retention inserts, gold

(Au) plated

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Country of Origin

Old Part Number

MX, US

354506-G30
