30069-12C1 datasheet, PDF - EEWORLD Datasheet

30069-12C1: Description4.20mm (.165) pitch mini-fit tpa? header, dual row, vertical, with snap-in plastic peg pcb lock, 12 circuits, tin (Sn) Plating, without drain holes; File Size428KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

30069-12C1 Overview

4.20mm (.165) pitch mini-fit tpa? header, dual row, vertical, with snap-in plastic peg pcb lock, 12 circuits, tin (Sn) Plating, without drain holes

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015977123

Active

minifit_tpa

4.20mm (.165") Pitch Mini-Fit TPA™ Header, Dual Row, Vertical, with Snap-in Plastic

Peg PCB Lock, 12 Circuits, Tin (Sn) Plating, without Drain Holes

Documents:

3D Model

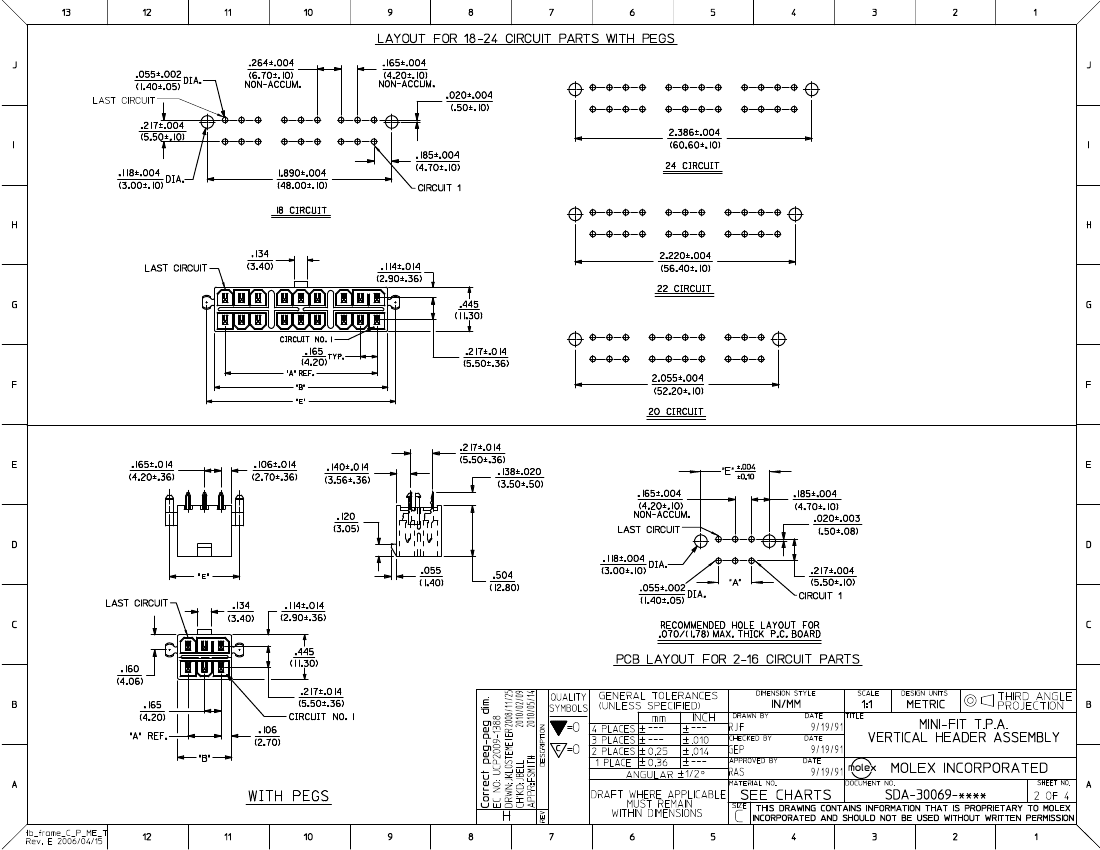

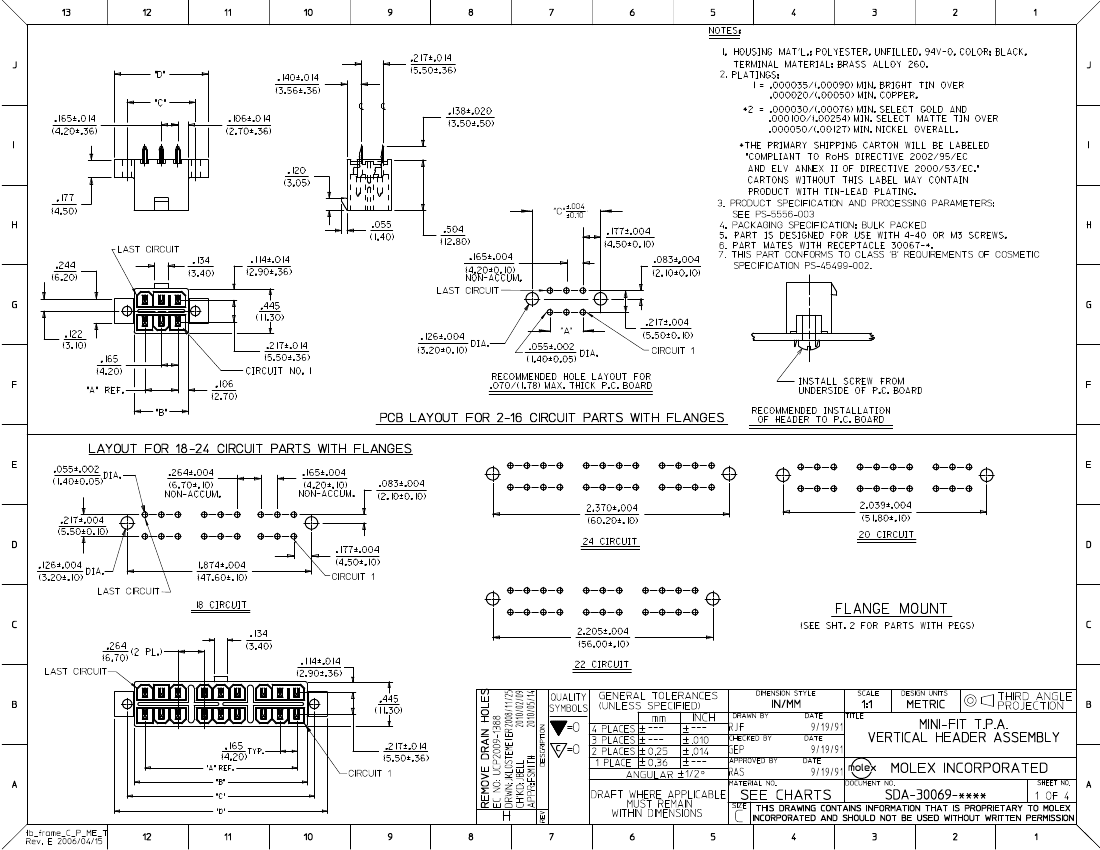

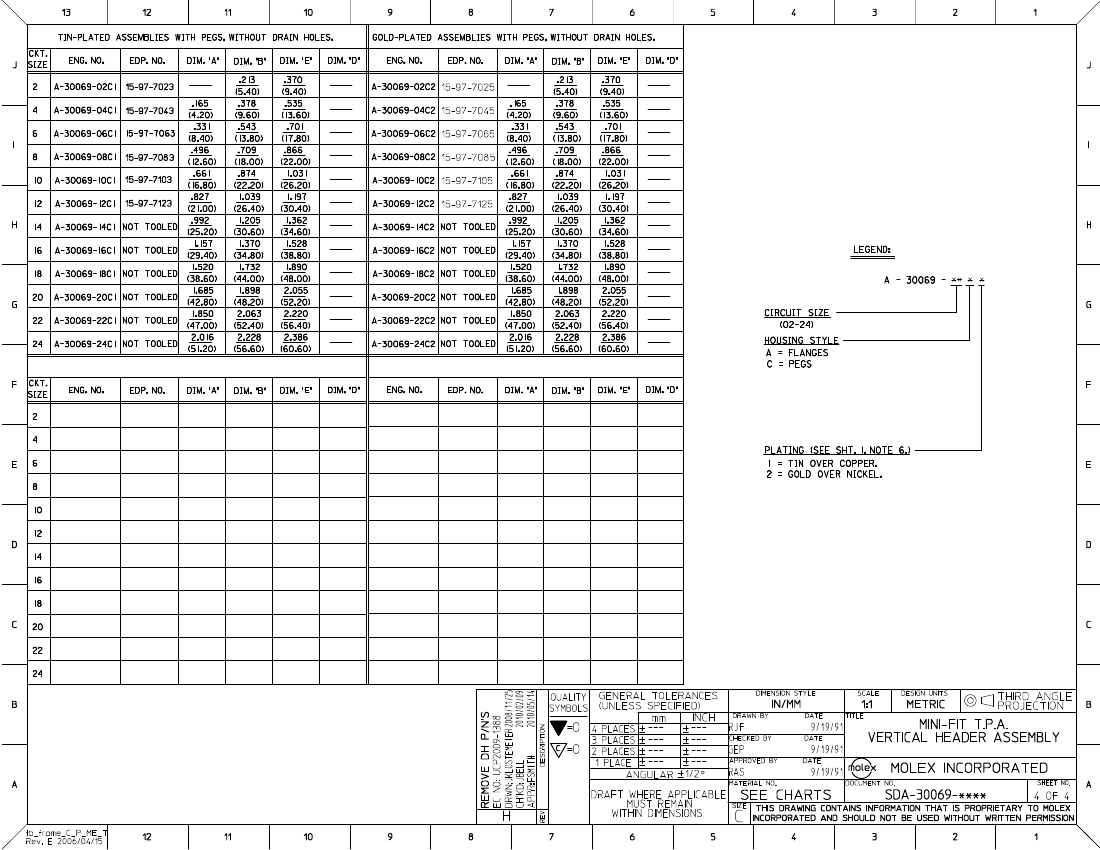

Drawing (PDF)

Product Specification PS-5556-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Comments

PCB Headers

30069

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex product specification PS-45750-001 for additional

current de-rating information.. Square Pin, Solder Type,

High Vibration Application

minifit_tpa

Mini-Fit TPA™

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Black

94V-0

None

Yes

Brass

Tin

Polyester

Vertical

Yes

0.070 In

1.80 mm

Tray

0.165 In

4.20 mm

0.165 In

4.20 mm

Search Parts in this Series

30069Series

Mates With

15-97-5041 Receptacle

Use With

Mini-Fit TPA™ Receptacle Housing 30071 ,

30072

30069-12C1 Related Products

	30069-12C1	A-30069-12C1
