39354-0004

Description
pluggable terminal blocks 3.5mm 4 ckt vertical
CategoryThe connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39354-0004 Online Shopping

Suppliers Part Number Price MOQ In stock
39354-0004 - - View Buy Now

39354-0004 Overview

pluggable terminal blocks 3.5mm 4 ckt vertical

39354-0004 Parametric

Parameter NameAttribute value
MakerMolex
Product CategoryPluggable Terminal Blocks
RoHSyes
productPluggable Terminal Blocks
typeWire-to-Board
Pitch3.5 mm
Number of locations/contacts4
Wire gauge range24-16
Current rating10 A
Voltage rating300 V
Installation styleThrough Hole
Installation angleVertical
Contact platingGold
colorBlack
Flammability ratingUL 94 V-0
Shell materialThermoplastic, High Temperature
range of working temperature0 C to + 140 C
Maximum wire gauge (AWG)16
Minimum wire gauge (AWG)24

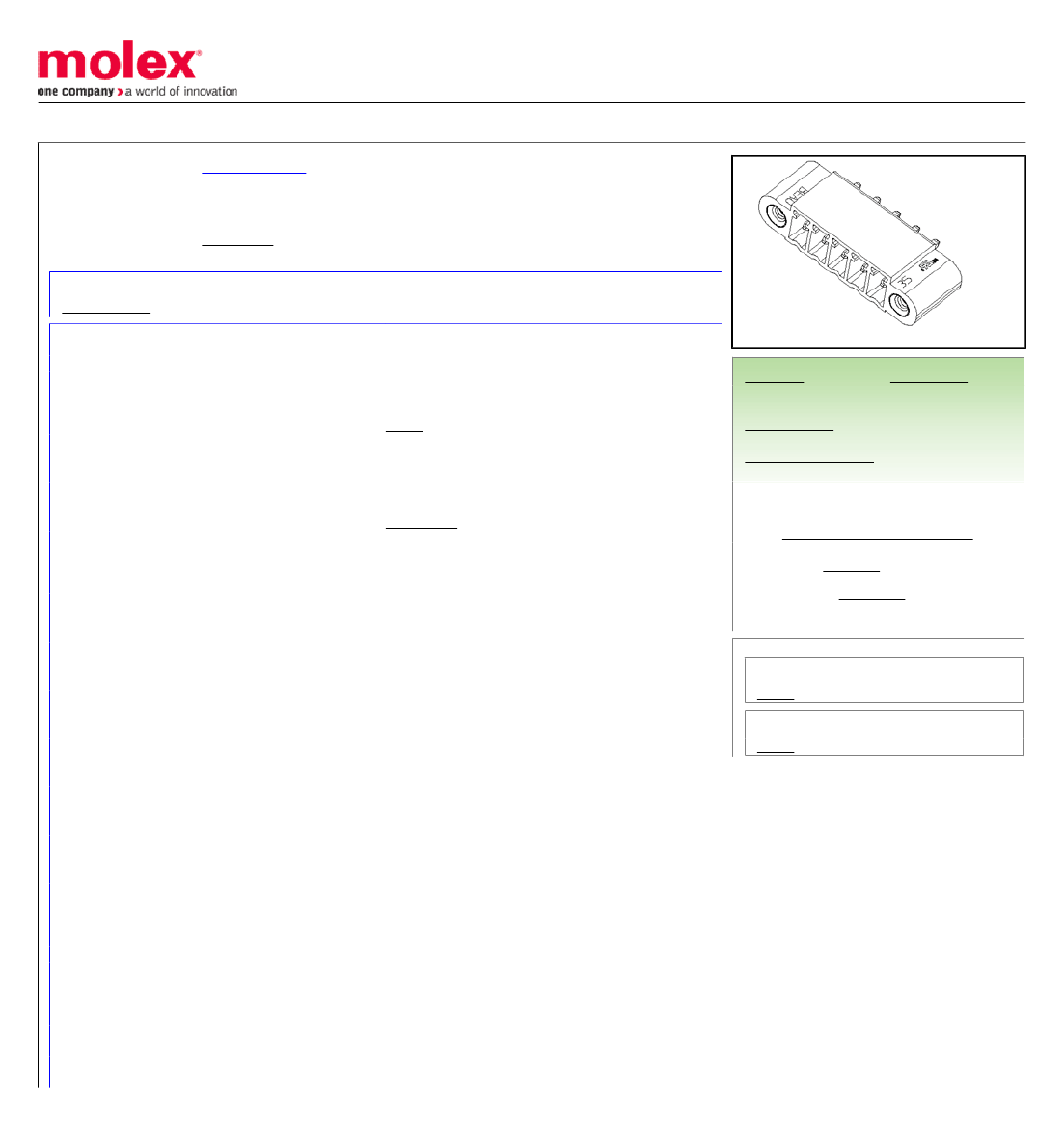

This document was generated on 10/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
Drawing (PDF)
Series
0393540004
Obsolete
3.50mm (.138") Pitch Beau™ Eurostyle™ Vertical PCB Header, with Threaded
Retention Inserts, 4 Circuits
39505-1004
Agency Certification
UL
E48521
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Name
Replacement Part Number
Type
Terminal Blocks
39354
Wire-to-Board
Available in green, blue or orange and gold plated
contacts
PCB Header
Eurostyle™Pluggable
39505-1004
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PC Tail Length
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
4
Black
N/A
94V-0
Yes
Gold
Gold
High Temperature Thermoplastic
Vertical
3.40mm (.134")
Yes
No
3.50mm (.138")
3.50mm (.138")
0.762µm (30µ")
0.762µm (30µ")
Yes
Closed Ends
No
140°C
N/A
Search Parts in this Series
39354Series
Mates With
39352 Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Country of Origin
Old Part Number
MX, US
355604
