ABU4-200.0000MHZ-2-G-L1-P datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABU4-200.0000MHZ-2-G-L1-P

ABU4-200.0000MHZ-2-G-L1-P: DescriptionParallel - 7Th Overtone Quartz Crystal, 200MHz Nom, UM-4, 3 PIN; CategoryPassive components Crystal/resonator; File Size637KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABU4-200.0000MHZ-2-G-L1-P Overview

Parallel - 7Th Overtone Quartz Crystal, 200MHz Nom, UM-4, 3 PIN

ABU4-200.0000MHZ-2-G-L1-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7282300824
package instruction	UM-4, 3 PIN
Reach Compliance Code	compliant
Other features	FOAM
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 7TH OVERTONE
Drive level	1000 µW
frequency stability	0.0015%
frequency tolerance	20 ppm
load capacitance	18 pF
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Series resistance	140 Ω

Preview

Download Datasheet

View All

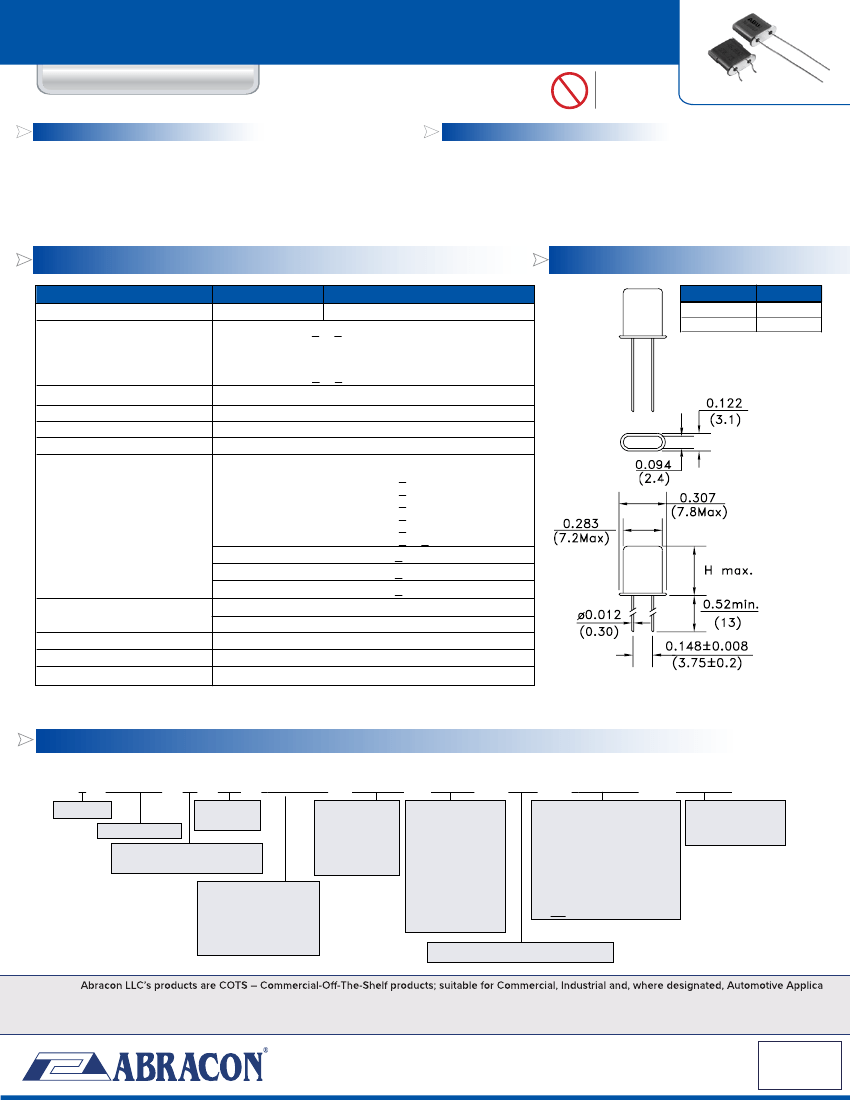

COMMUNICATION CRYSTALS

ULTRA MINIATURE • UM-1 • UM-4

ABU, ABU4

RoHS

Compliant

APPLICATIONS:

• Pagers

• Hand-held phones

• Cordless phones

• Communication equipment

| | | | | | | | | | | | | | |

7.8 x 3.1 x 8.0 mm

FEATURES:

• Compact size.

• High precision crystal.

• Hermetically sealed.

• Excellent frequency temperature characteristics

across a wide temperature range.

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range

Operation Mode

6MHz - 200MHz

10MHz - 200MHz

6.00MHz < F < 25.00MHz (Fundamental)

25.0MHz < F < 72.0MHz (3rd overtone)

72.00MHz < F < 160.0MHz (5th overtone)

160.0MHz < F < 200.00MHz (7th overtone)

0° C to +70°C

(See Options)

-40°C to +125°C

±50ppm max.

(See Options)

±50ppm max.

(See Options)

120

Ω

max. for 6.0MHz < F < 7.0MHz

100

Ω

max. for 7.0MHz < F < 8.0MHz

Ω

max. for 8.0MHz < F < 10.0MHz

Ω

max. for 10.0MHz < F < 11.0MHz

Ω

max. for 11.0MHz < F < 12.0MHz

Ω

max. for 12.0MHz < F < 14.0MHz

Ω

max. for 14.0MHz < F < 25.0MHz

Ω

max. for 25.0MHz < F < 72.0MHz

100

Ω

max. for 72.0MHz < F < 160.0MHz

140

Ω

max. for 160.0MHz < F < 200.0MHz

7pF max.

18pF

(See Options)

1mW max., 100µW correlation

±3pp m max. (tighter aging available)

500M

Ω

min. at

100Vdc ±15V

OUTLINE DIMENSIONS

ABU4 (UM-4)

PART NUMBER

H MAX.

ABU (UM-1)

UM-1 (

ABU)

UM-4 (

ABU4)

0.315 (8.0)

0.185 (4.7)

Dimensions: Inches (mm)

Operating Temperature

Storage Temperature

Frequency Tolerance

25°C

Frequency Stability over Temp.

Equivalent Series Resistance

(ESR)

Fundamental

3rd Overtone

5th Overtone

7th Overtone

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging

25°C First Year

Insulation Resistance

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABUX - Frequency - CL - ESR - Temperature - Tolerance

Blank or 4

XX.XXXX MHz

RXXX

(value in

Ω

)

-1

-7

-2

-3

-4

for ± 10ppm

for ± 15ppm

for ± 20ppm

for ± 25ppm

for ± 30ppm

- Stability

-R3

-R5

-U

-G

-X

-W

-Y

-H

-Z

Mode

Value Added

Packaging

- T (Tape

Reel)

- P (Foam)

- TY (Tray Packing)

for ± 3ppm

for ± 5ppm

for ± 10ppm

for ± 15ppm

for ± 20ppm

for ± 25ppm

for ± 30ppm

for ± 35ppm

for ± 50ppm

-I

-L

-L1

-V

-M

-MJ

(Insulator Tab)

(3rd Lead welded)

(3rd Lead Soldered)

(Vinyl Sleeving)

(SMT Formed Leads)

(Metal Jackets

and Formed Leads)

-QXX (Trimmed Leads)

Please specify CL in pF or S

for Series (10 to 33 pF)

-A for -10°C to + 60°C

-B for -20°C to + 70°C

-C for -30°C to + 70°C

-N for -30°C to + 85°C

-D for -40°C to + 85°C

-F (for Fundamental AT > 25 MHz)

ATTENTION:

tions. Abracon’s products are not speciﬁcally designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability

where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,

written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.

5101 Hidden Creek Ln Spicewood TX 78669

Phone: 512-371-6159 | Fax: 512-351-8858

For terms and conditions of sales, please visit:

www.abracon.com

ABRACON IS

REVISED:

10.03.2018

ISO9001-2015

CERTIFIED
