TTL/CMOS VOLTAGE CONTROLLED CRYSTAL OSCILLATOR

ACVX1222

FEATURES:

• 14-Pin DIP 5V

• 5.08mm in height

• Large frequency pulling available

• Tight symmetry (45/55%) available

• Good linearity

RoHS

Compliant

APPLICATIONS:

• PLLs

• Clock recovery

• Reference signal tracking

• Synthesizers

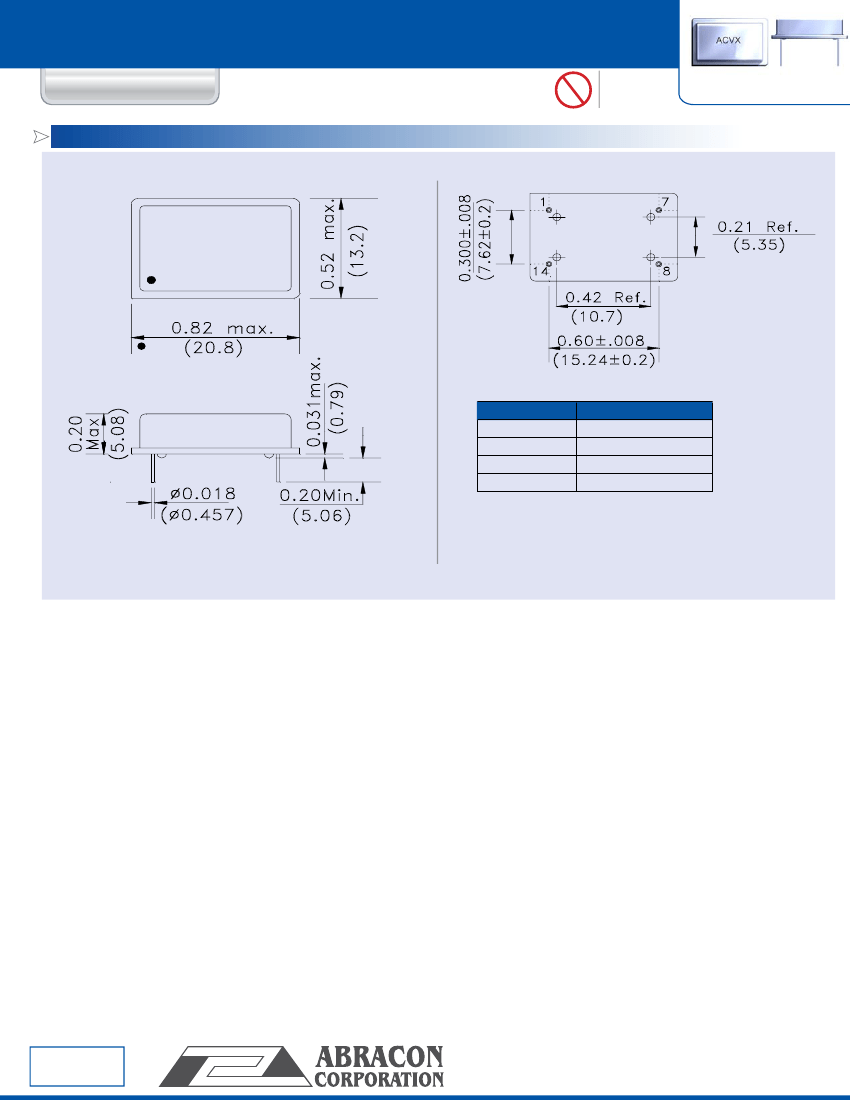

20.8 x 13.2 x 5.08 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

Abracon P/N:

Frequency range:

Operating temperature:

Storage temperature:

Frequency Stability vs.

Temperature:

Frequency Stability vs. Aging:

Frequency Stability vs.

Supply Voltage:

Supply Voltage (Vdd):

Supply Current (Idd):

Symmetry:

Rise and Fall Time (Tr/Tf):

Output Load:

Output Voltage:

Transfer Function:

Control Voltage (Vcc):

Center Voltage:

Frequency Deviation:

Linearity:

Start-up time:

ACVX1222 Series

1.0MHz to 200.0MHz

0° C to + 70° C (see options)

-40° C to + 85° C

± 100ppm max. (see options)

± 5ppm/year max.

± 5ppm max.

5.0 Vdc ±5%

See Table 1

40/60% max. @ 1/2 Vdd (see option)

10ns max.

TTL/CMOS (10TTL or 15pF gate)

VOH=0.9*Vdd min.

VOL=0.4 V max.

Positive

0.5Vdc to 4.5Vdc

2.5 VDC ± 0.5V

± 100 ppm min. (see options)

± 10% max.

10ms.max.

Table 1

Freq

MHz

Idd max.

Pullability

≤26

≤45

≤70

≤200

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ACVX1222 - Frequency -

Trimed Lead

Gull Wing

0.45(11.43)

Q45

0.40(10.16)

Q40

0.35(8.89)

Q35

0.30(7.62)

Q30

0.25(6.35)

Q25

0.20(5.08)

Q20

0.15(3.81)

Q15

0.10(2.54)

Q10

Frequency

XXX.XXXMHz

Operating Temp.

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Frequency Stability

±20ppm

±25ppm

R**

±30ppm

±35ppm

±50ppm

Symmetry

45/55%@0.5Vdd

45/55%@1.4Vdd

Pulling

N05

N15

N20

N25

N30

Please contact ABRACON if parts are intended for life dependent applications.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

± 50ppm

± 150ppm

± 200ppm

± 250ppm

± 300ppm

* Temp option D, E, and 0°C to +70°C only

** Temp option D, E, F, N, and 0°C to +70°C only

Revised: 04.11.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
