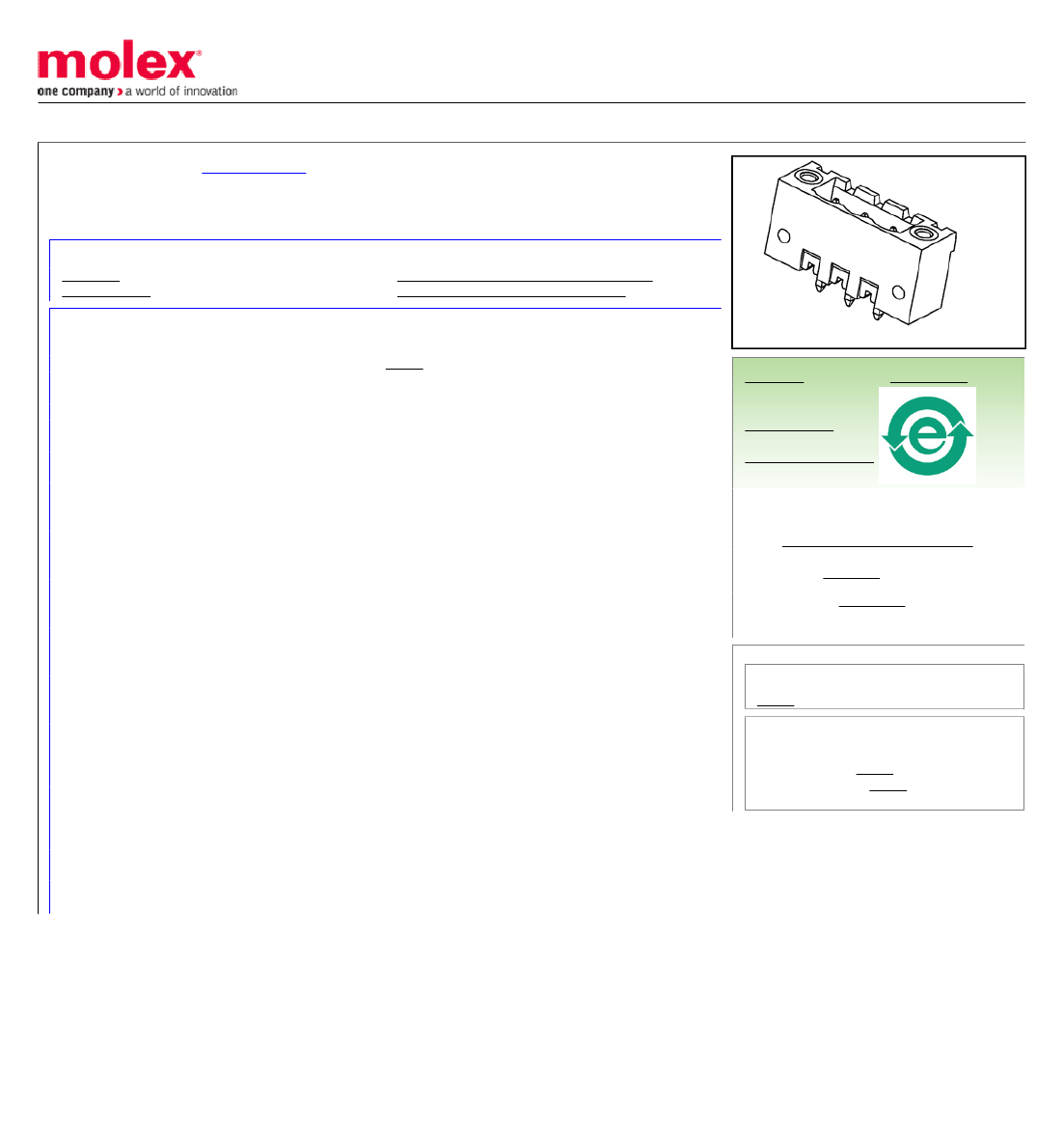

This document was generated on 11/10/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0395254012
Active
5.00mm (.197") Pitch Eurostyle™ Vertical PCB Header, with Threaded Retention
Inserts, Surface Mount Compatible, 12 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Terminal Blocks
39525
Wire-to-Board
PCB Header
USA-355
ESE, Eurostyle™Pluggable
Euro Block
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Component Type
Product Literature Order No
Product Name
Type
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
12
N/A
Yes
1
Vertical
3.90mm (.154")
3.20mm (.126")
No
5.00mm (.197")
5.00mm (.197")
Yes
Closed Ends
No
N/A
-40°C to +140°C
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39525Series
Mates With
Most 5.00mm (.197") Pitch Industry
Standard Plugs, 39524 Horizontal Plug with
Retention Screws, 39527 Vertical Plug with
Retention Screws
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Country of Origin
CN
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39501-002, SD-39525-001
This document was generated on 11/10/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
