70066-0111

Description
2.54mm (.100") pitch SL crimp housing, single row, version D, back ribs, 7 circuits
CategoryThe connector    The connector
File Size110KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

70066-0111 Overview

2.54mm (.100") pitch SL crimp housing, single row, version D, back ribs, 7 circuits

70066-0111 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number70066
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Total number of contacts7
Base Number Matches1

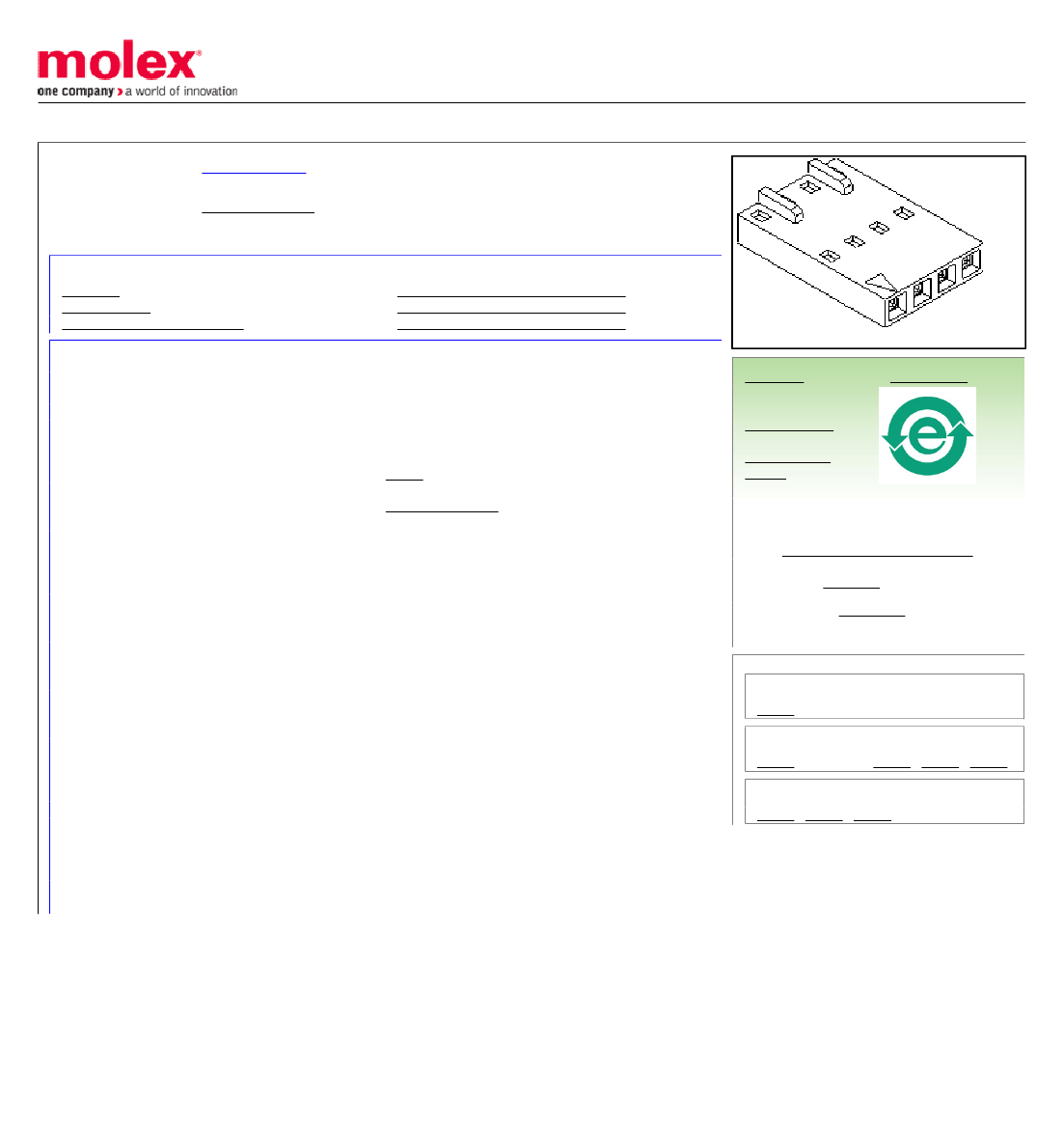

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0050579303
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Crimp Housing, Single Row, Version D, Back Ribs, 3
Circuits
Documents:
3D Model
Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-70058 (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
70066
Version D
cgrid__sl_products
SL™
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
3
Black
94V-0
Female
No
Polyester Alloy
1
Bag
No
0.100 In
2.54 mm
Yes
-40°C to +105°C
Search Parts in this Series
70066Series
Mates With
70004 Interim Clip, 70013 , 70022 , 70104
Use With
70021 , 70058 , 71851
Material Info
Old Part Number
70066-0107
Reference - Drawing Numbers
Packaging Specification
Product Specification

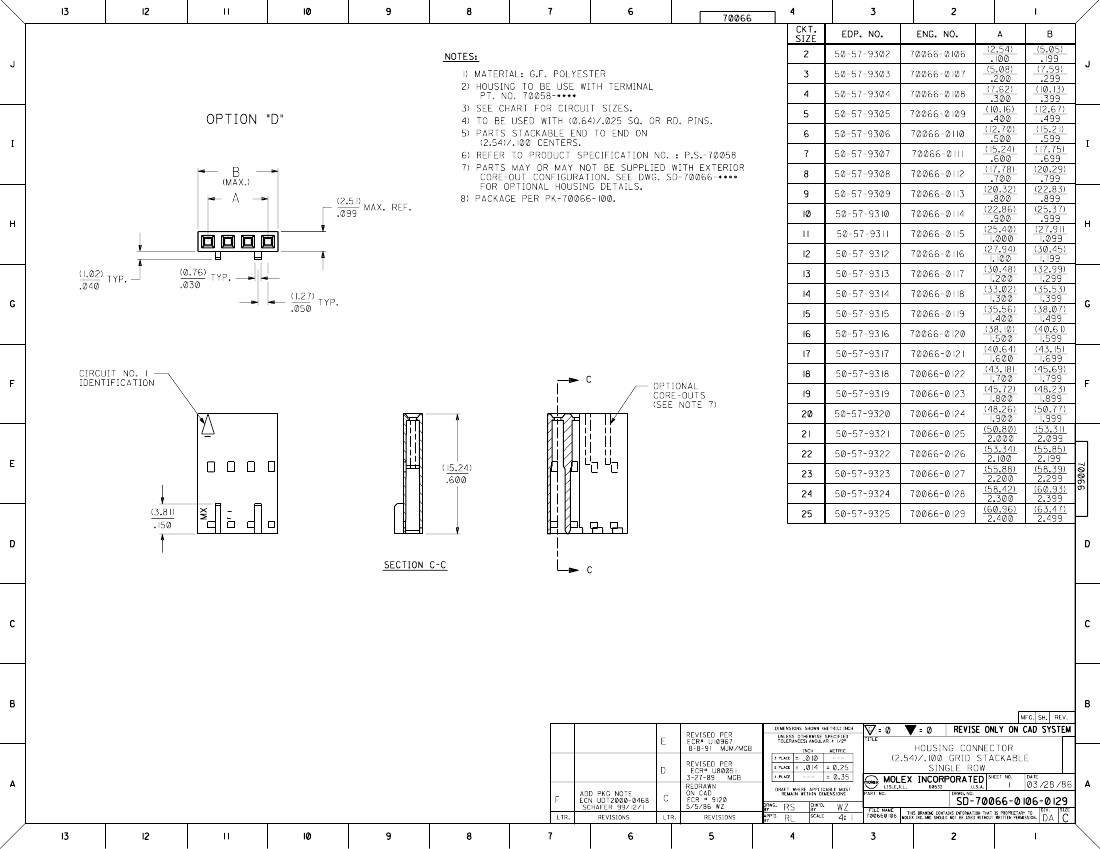

Sales Drawing
Test Summary
PK-70066-100
PS-70058, PS-70400
SD-70066-0106-0129
TS-70058-001
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
