300211C

Description
5.08mm (.200") pitch KK? PC board connector, top entry mount style C, 1.0??m (40??") tin (Sn), 11 circuits
File Size122KB，3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

300211C Overview

5.08mm (.200") pitch KK? PC board connector, top entry mount style C, 1.0??m (40??") tin (Sn), 11 circuits

Preview

Download Datasheet

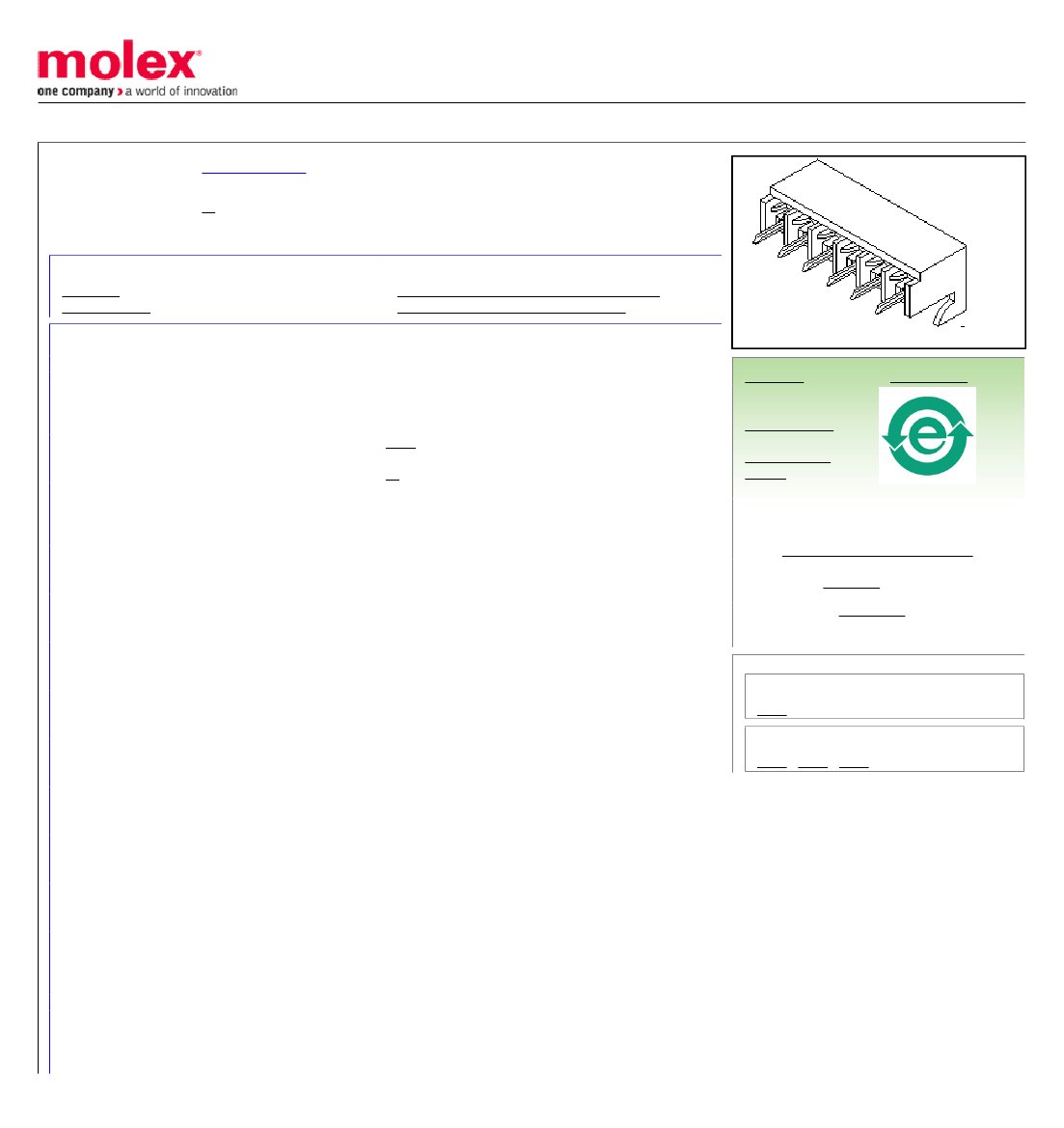

This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0010101023
Active
kk
5.08mm (.200") Pitch KK® PC Board Connector, Top Entry Mount Style C, 1.0µm
(40µ") Tin (Sn), 2 Circuits
Documents:
3D Model

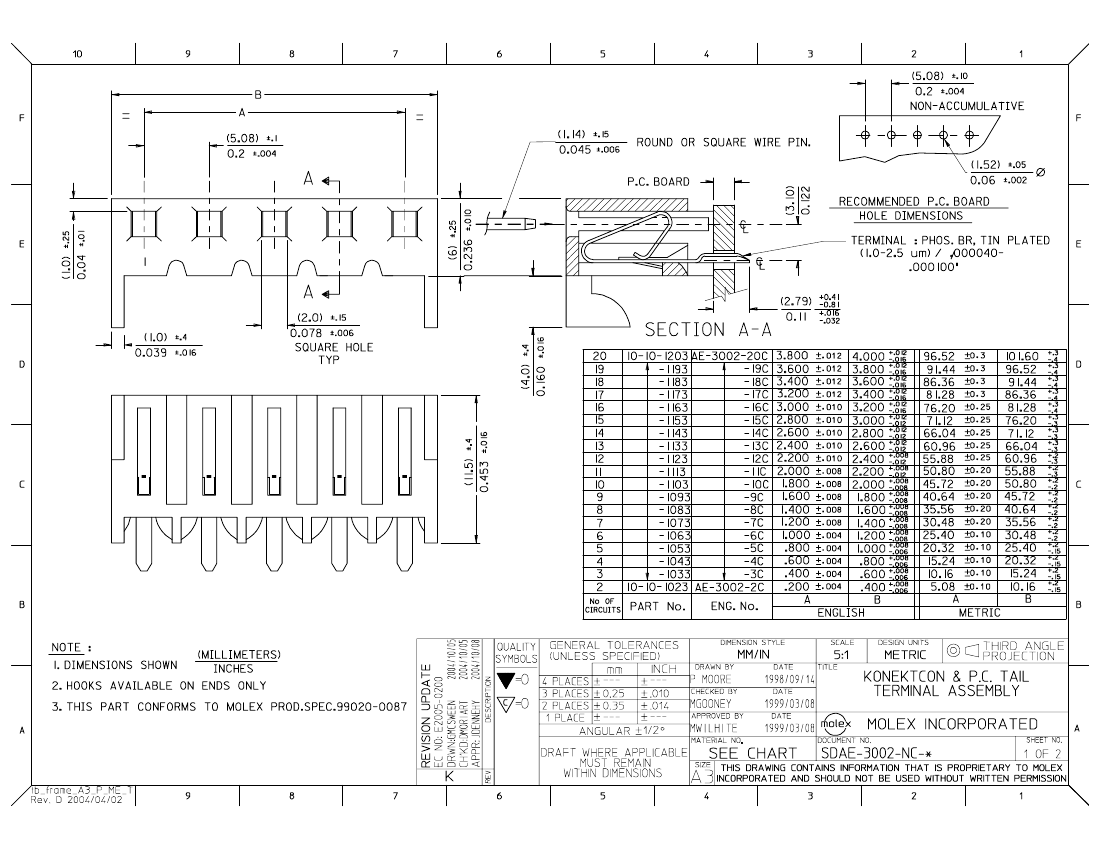

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
3002
Board-to-Board
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
2
Natural
25
94V-2
No
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
0.110 In
2.79 mm
No
None
0.062 In
1.60 mm
Tray
0.200 In
5.08 mm
40.00
1.000
40.00
1.00
No
0°C to +75°C
Through Hole
Search Parts in this Series
3002Series
Mates With
3003 , 2599 , 3008
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
