54765-8070

Description
Board to board/mezzanine connector 80 ckt receptacle lead free
CategoryThe connector    The connector
File Size34KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54765-8070 Online Shopping

Suppliers Part Number Price MOQ In stock
54765-8070 - - View Buy Now

54765-8070 Overview

Board to board/mezzanine connector 80 ckt receptacle lead free

54765-8070 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Samacsys DescriptionBoard to Board & Mezzanine Connectors 80 Ckt Receptacle lead free
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number54765
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts80
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

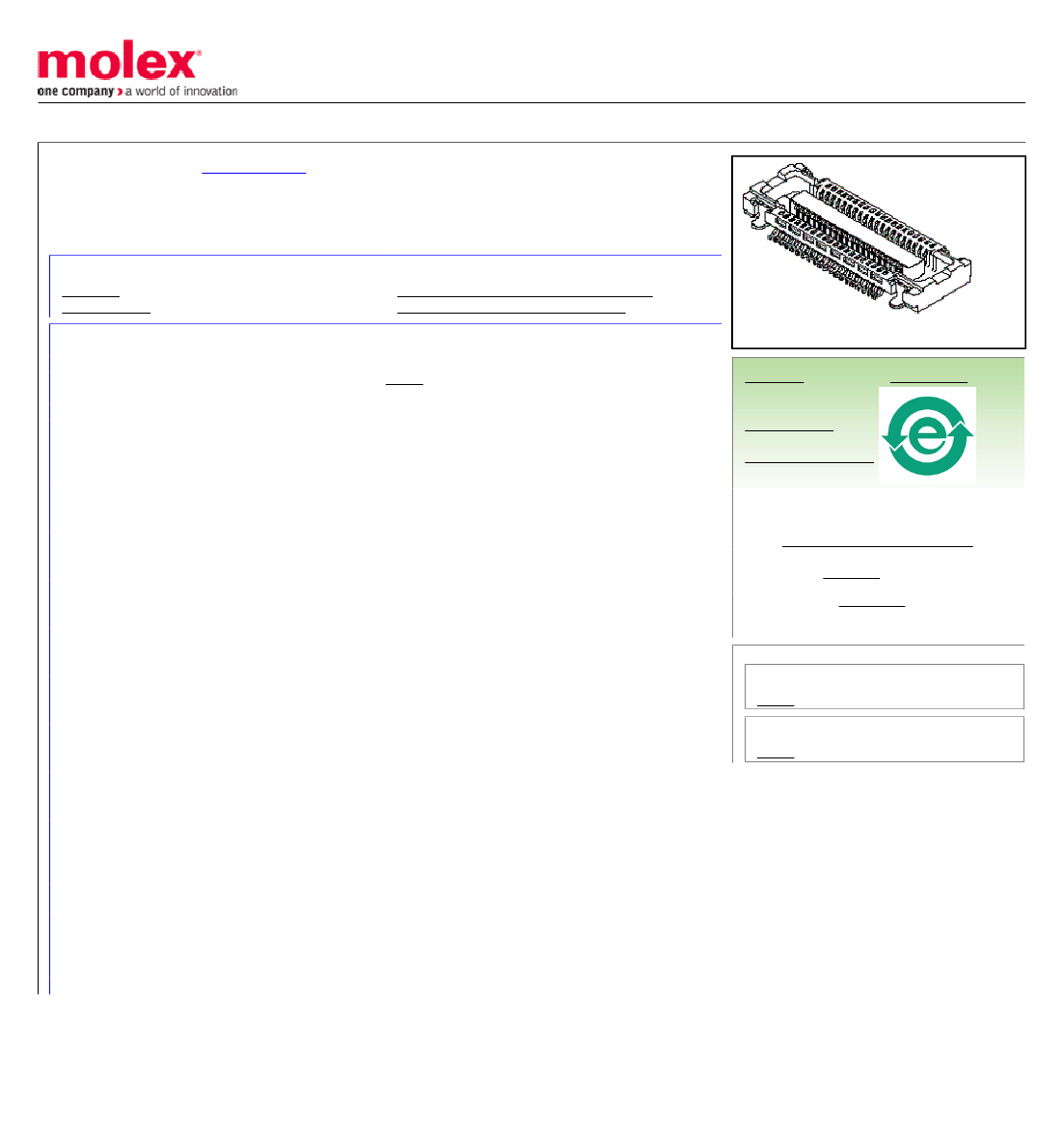

Part Number:
Status:
Description:
0547658070
Active
0.40mm (.016") Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual
Row, Vertical Stacking, 1.50mm (.059") Stacking Height, with Solder Tabs and Mating
Guide, 80 Circuits, Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54765-012 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Receptacles
54765
Board-to-Board, Signal
Solder Tab Plating: Lead-Free, Tin
SlimStack™
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
80
Black
30
No
Yes
None
1.50mm (.059")
Phosphor Bronze
Gold
Gold
High Temperature Thermoplastic
2
Vertical
No
Yes
1.60mm (.063")
Embossed Tape on Reel
0.40mm (.016")
No
N/A
-25°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54765Series
Mates With
55604 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
50V
Material Info
Country of Origin
JP
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54765-012, RPS-54765-030
SD-54765-030, SD-54765-031
This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
