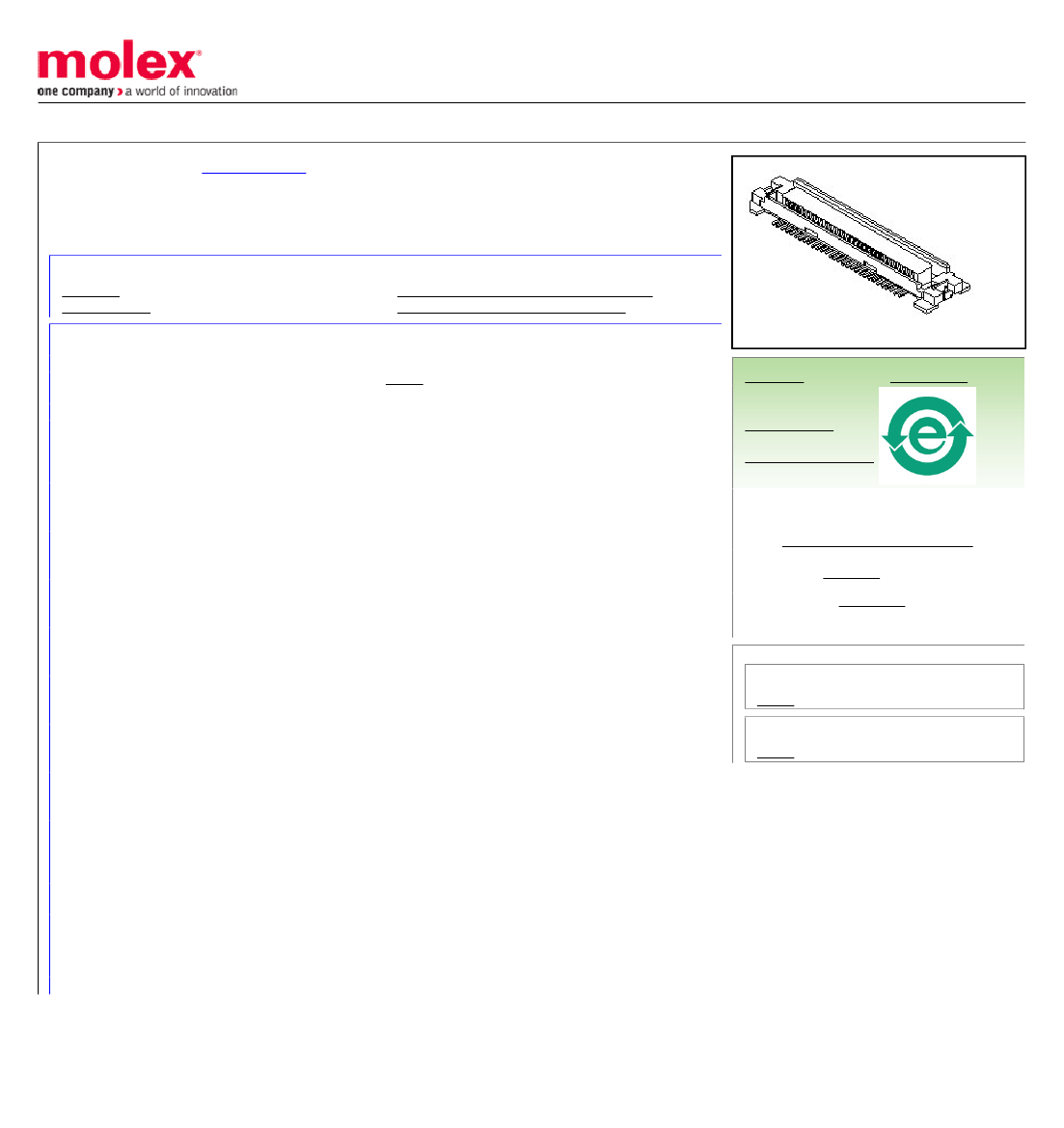

This document was generated on 11/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0529210674
Planned for Obsolescence
0.635mm (.025") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical
Stacking, 3.00mm (.118") Stacking Height, Embossed Tape Packaging, 60 Circuits,
Lead-free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52921-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Receptacles
52921
Board-to-Board, Signal
Stacking-Type|Solder Tab Plating: Lead-Free, Tin
SlimStack™
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Comments
Product Name
Physical
Circuits (Loaded)
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Robotic Placement
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
60
50
No
Yes
3.00mm (.118")
Phosphor Bronze
Gold
Gold
2
Vertical
Yes
Yes
1.60mm (.063")
Embossed Tape on Reel
0.64mm (.025")
0.102µm (4µ")
0.254µm (10µ")
Yes
Vacuum Pick-Up Tape
N/A
-55°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52921Series
Mates With
53671
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
100V
Material Info
Country of Origin
JP
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-52921-002
SD-52921-001, SD-52921-002
