NSP20.9531%A: DescriptionRESISTOR, WIRE WOUND, 2W, 1%, 200ppm, 0.953ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size101KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

NSP20.9531%A Overview

RESISTOR, WIRE WOUND, 2W, 1%, 200ppm, 0.953ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

NSP20.9531%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1494337170
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e2
Manufacturer's serial number	NSP
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	250 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	2 W
Rated temperature	25 °C
resistance	0.953 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

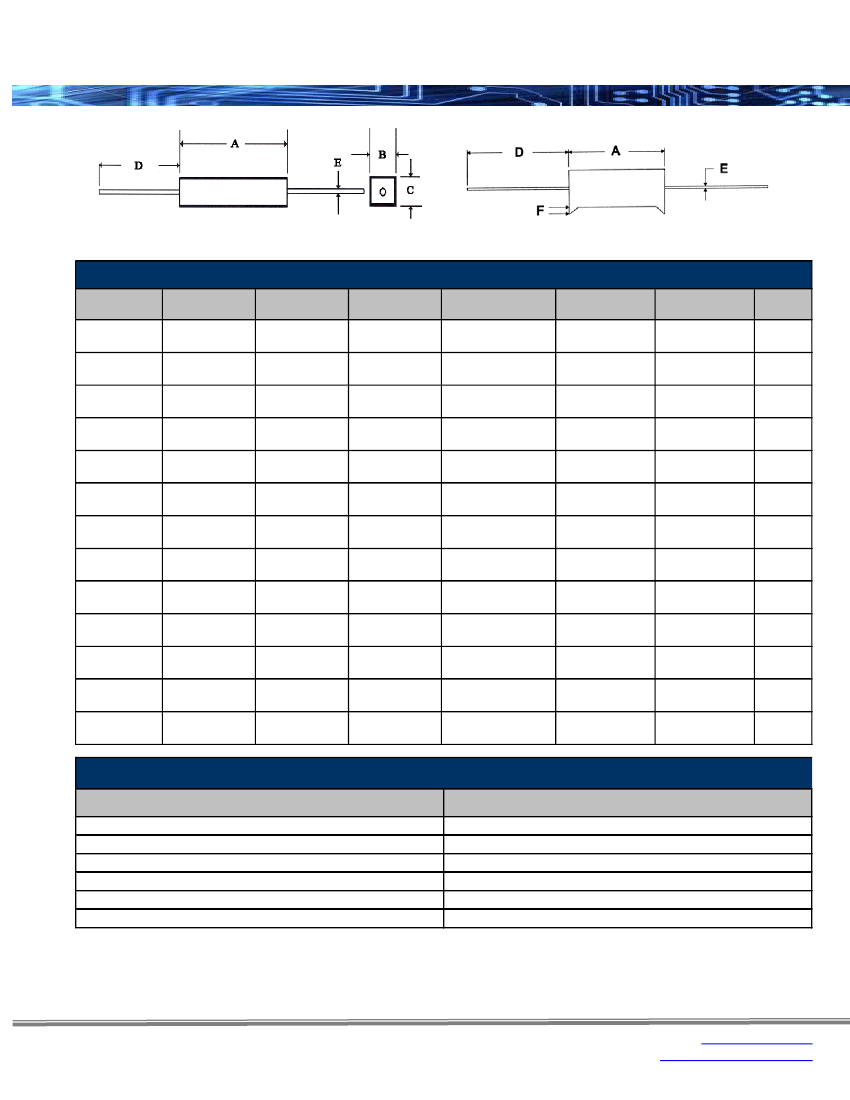

NSP/NSPP Series

Ceramic Housed – Consumer Grade

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

Flameproof construction

Temperature coefficient of resistance of ±200ppm/ºC

Low resistance values

Power derating is linear from100% at 25ºC to zero at 250ºC

Also available with standoffs as NSPP

Other styles and configurations available - contact factory

RoHS compliant / lead-free

Electrical Specifications

Type / Code

NSP 2

NSP 3

NSP 5

NSP 7

NSP 10

NSP 15

NSP 20

Power Rating (Watts)

@ 25ºC

10W

15W

20W

Maximum

Working

Voltage (*)

100V

200V

300V

350V

500V

600V

700V

Resistance

Temperature

Coefficient

±200 ppm/ºC

Ohmic Range (Ω) and Tolerance

1%, 5%

0.1 - 20K

0.1 - 2K

0.1 - 5.1K

NSP 25

25W

(*) Lesser of

√PR

or maximum working voltage.

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

NSP

Type

NSP

NSPP

Description

Standard

With Standoff

Code

1.2K

Tolerance

Values

E96

E24

Types

All

Qty

1,000

Description

Bulk

Code

Rev Date: 05/18/2010

This specification may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

www.seielect.com
