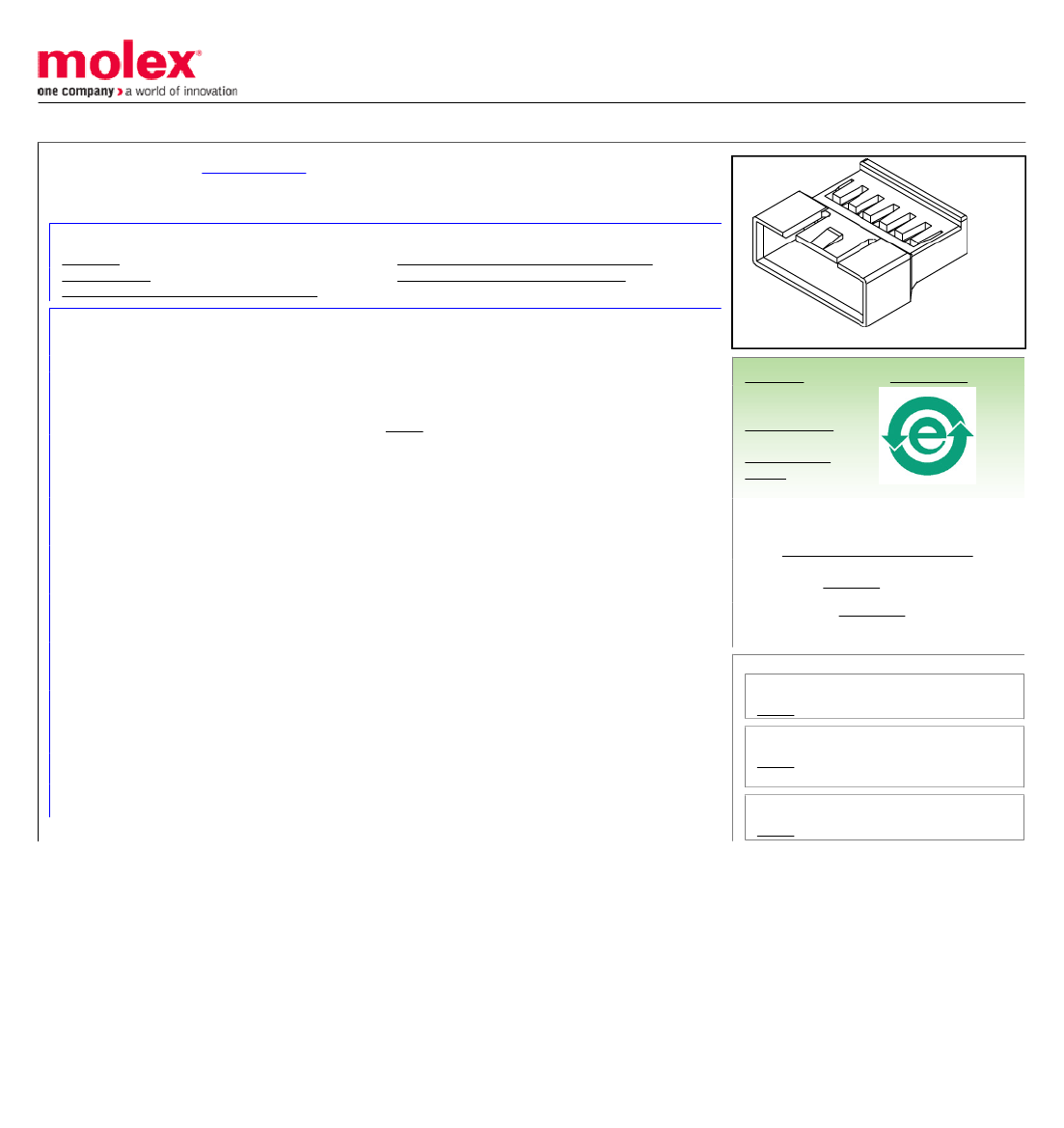

Preview

351840900: Description2.50mm (.098") pitch wire-to-wire plug housing, natural, 9 circuits; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

351840900 Overview

2.50mm (.098") pitch wire-to-wire plug housing, natural, 9 circuits

351840900 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACT: 35053-9002
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	35184
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0351840400

Active

2.50mm (.098") Pitch Wire-to-Wire Plug Housing, Natural, 4 Circuits

Documents:

3D Model

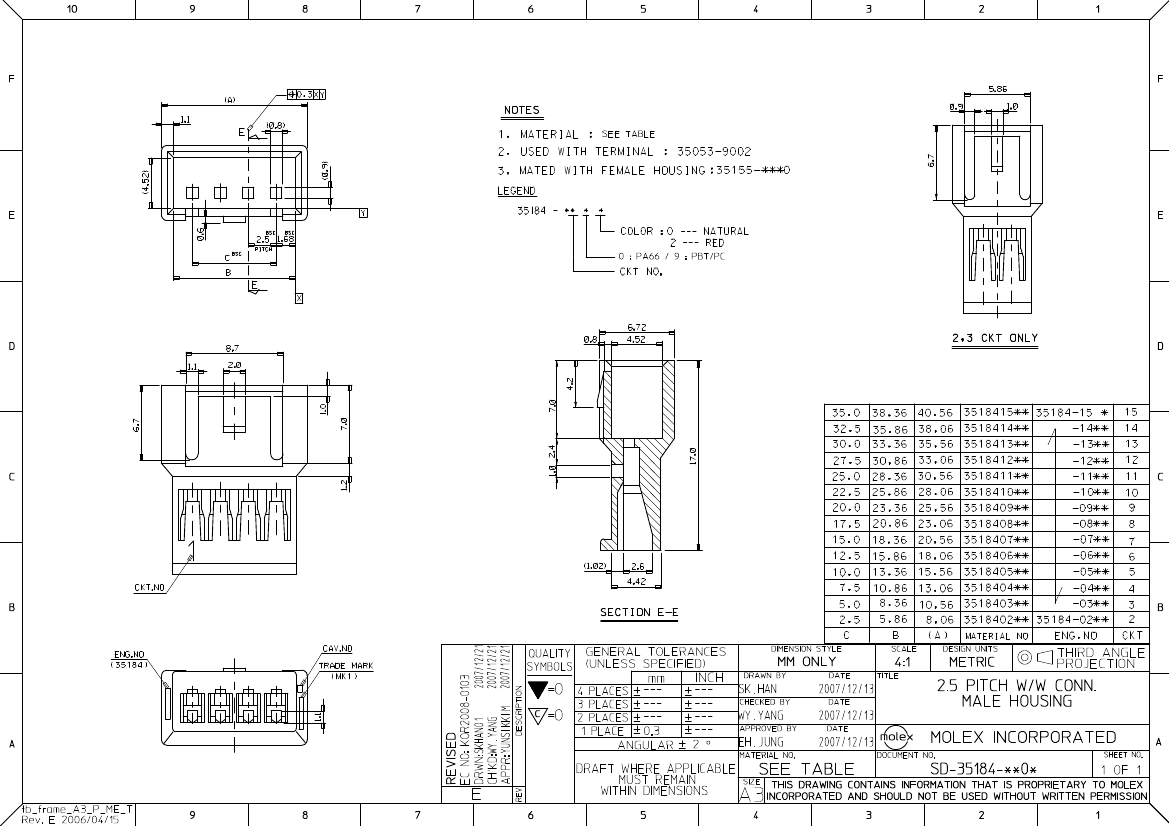

Drawing (PDF)

Product Specification PS-35053-001 (PDF)

Product Specification PS-35184-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Product Name

Crimp Housings

35184

N/A

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Temperature Range - Operating

No

4

Natural

94V-0

Male

No

None

Yes

Nylon

1

Bag

No

0.098 In

2.50 mm

-40°C to +105°C

Search Parts in this Series

35184Series

Mates With

35155 Wire-to-Board Housing, 35572 Wire-

to-Wire and Wire-to-Board Housing

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35053-001, PS-35184-001

SD-35184-**0*

Use With

35053 Wire-to-Wire Terminal

This document was generated on 04/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

351840900 Related Products

	351840900	351840400	351840800	0351841200	351841400	0351841400	35184-1200	35184-1400
Description	2.50mm (.098") pitch wire-to-wire plug housing, natural, 9 circuits	4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR	2.50mm (.098") pitch wire-to-wire plug housing, natural, 8 circuits	2.50mm (.098") pitch wire-to-wire plug housing, natural, 12 circuits	2.50mm (.098") pitch wire-to-wire plug housing, natural, 14 circuits	2.50mm (.098") pitch wire-to-wire plug housing, natural, 14 circuits	2.50mm (.098") pitch wire-to-wire plug housing, natural, 12 circuits	2.50mm (.098") pitch wire-to-wire plug housing, natural, 14 circuits
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown	compliant	compli	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	-	Lead free	Lead free
Other features	COMPATIBLE CONTACT: 35053-9002	COMPATIBLE CONTACTS: 35053	COMPATIBLE CONTACT: 35053-9002	-	COMPATIBLE CONTACT: 35053-9002	-	COMPATIBLE CONTACTS: 35053	COMPATIBLE CONTACTS: 35053
Contact point gender	MALE	MALE	MALE	-	MALE	-	MALE	MALE
DIN compliance	NO	NO	NO	-	NO	-	NO	NO
Filter function	NO	NO	NO	-	NO	-	NO	NO
IEC compliance	NO	NO	NO	-	NO	-	NO	NO
MIL compliance	NO	NO	NO	-	NO	-	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	-	NO	-	NO	NO
Number of rows loaded	1	1	1	-	1	-	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	9	4	8	-	14	-	12	14
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0	-	94V-0	94V-0
