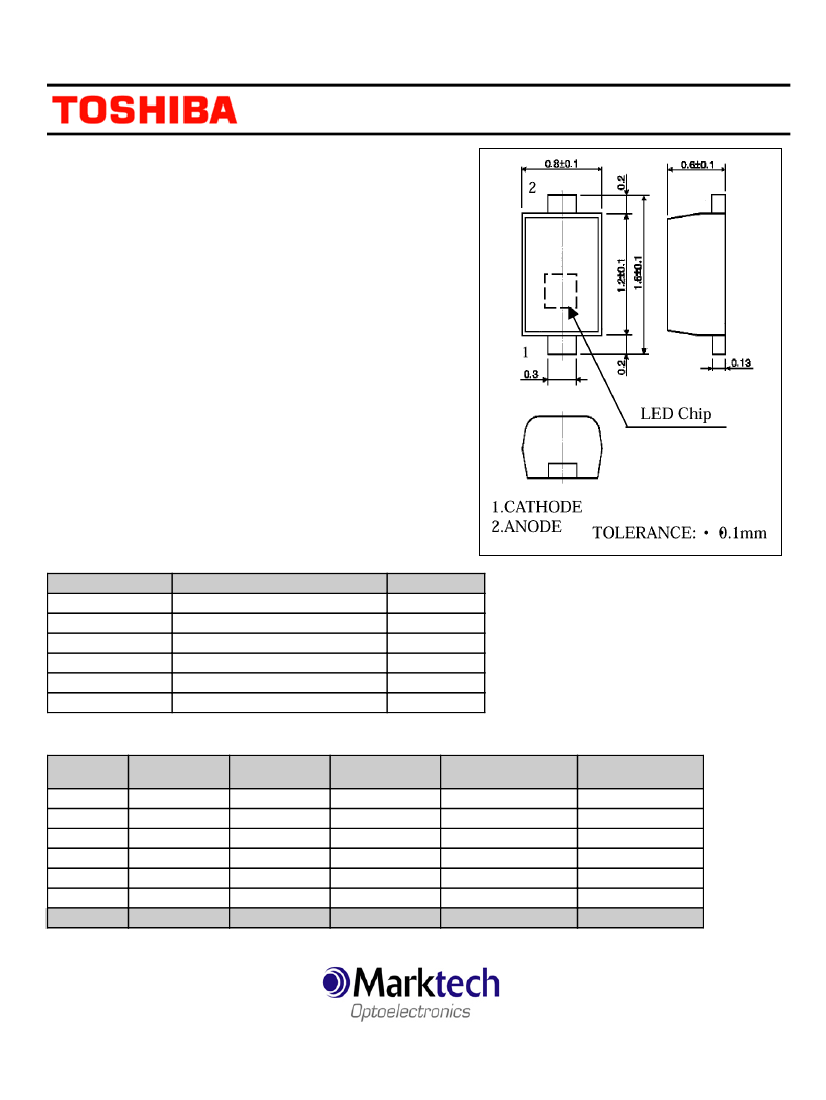

Toshiba TLxV1020 SMT LED
Features
1.6(L)x0.8(W)x0.6(H)mm Size
InGaAlP Technology
High Luminous Intensity
Low Power Consumption
Suitable for Backlighting
Applications
Backlighting
Series Line−Up
Part Number
TLGV1020
TLOV1020
TLPGV1020
TLRMV1020
TLSV1020
TLYV1020
Color
Ultra Bright Yellow Green
Ultra Bright Orange
Ultra Pure Green
Ultra Red
Ultra Bright High Efficency Red
Ultra Bright Yellow
Material
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
Maximum Ratings (Ta=25
o
C)
Part Number
TLGV1020
TLOV1020
TLPGV1020
TLRMV1020
TLSV1020
TLYV1020
Unit
Forward Current
I
F
15
15
15
15
15
15
mA
Reverse Voltage
V
R
4
4
4
4
4
4
V
Power Dissipation
P
D
34.50
34.50
34.50
34.50
34.50
34.50
mW
Operating Temperature
T
opr
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
o
Storage Temperature
T
stg
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
−40 ~ +100
o
C
C
Company Headquarters
3 Norhway Lane North
Latham, New York 12110
Toll Free: 800.984.5337
Fax: 518.785.4725
Web: www.marktechopto.com | Email: info@marktechopto.com
West Coast Sales Office
950 South Coast Drive, Suite 265
Costa Mesa, California 92626
Toll Free: 800.984.5337
Fax:
714.850.9314
Toshiba TLxV1020 SMT LED

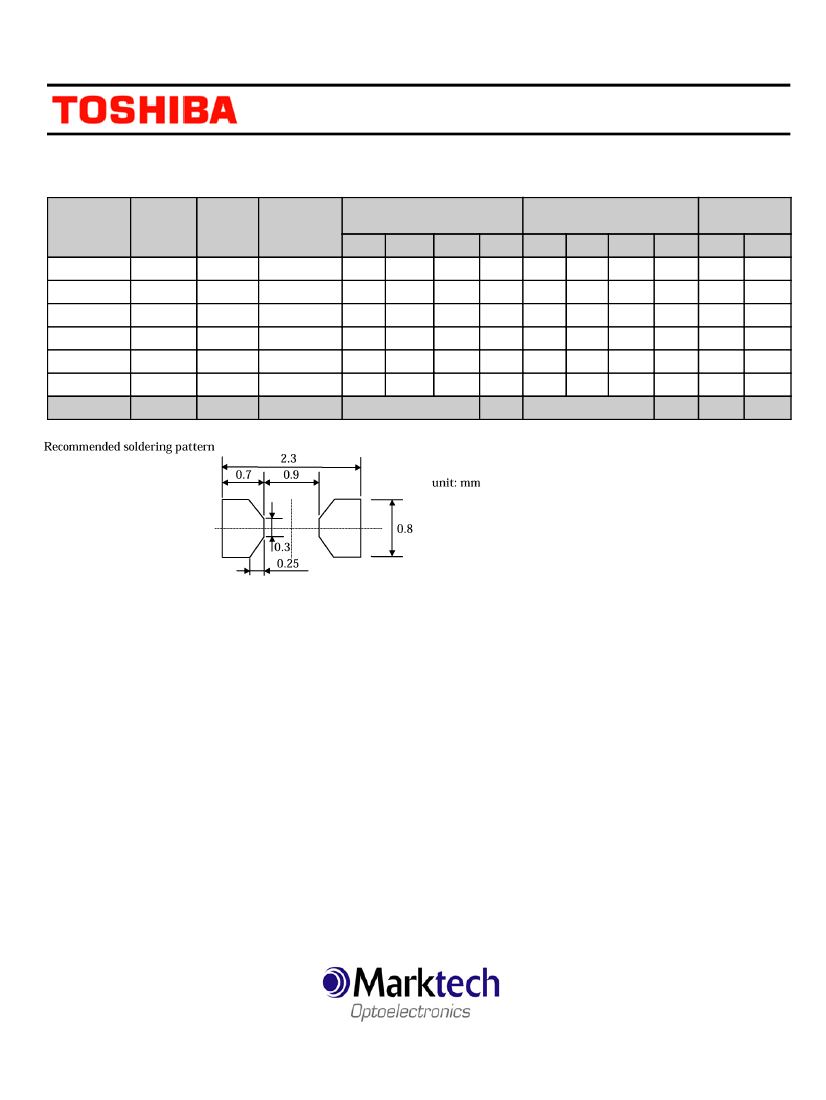

Electrical and Optical Characteristics (Ta=25 C)
Part
Number
PWL nm
λP
Material
View
Angle
2θ
1/2
140 x 130
140 x 130
140 x 130
140 x 130
140 x 130
140 x 130
deg
o
o
o
o
o
o
o
o
o
o
o
o
o
Luminous Intensity
I
v
min.
4.76
8.50
1.53
4.76
8.50
8.50
typ.
14.00
38.00
3.50
15.00
30.00
25.00
mcd
max.
IF@
− 5mA
− 5mA
− 5mA
− 5mA
− 5mA
− 5mA
−
min.
−
−
−
−
−
−
Forward Voltage
V
F
typ.
2.00
2.00
2.00
2.00
2.00
2.00
V
max.
IF@
Rev Current
I
R
max.
10
10
10
10
10
10
µ
A
−
VR@
4V
4V
4V
4V
4V
4V
TLGV1020
TLOV1020
TLPGV1020
TLRMV1020
TLSV1020
TLYV1020
−
574
612
562
636
623
590
nm
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
−
2.30 5mA
2.30 5mA
2.30 5mA
2.30 5mA
2.30 5mA
2.30 5mA
−

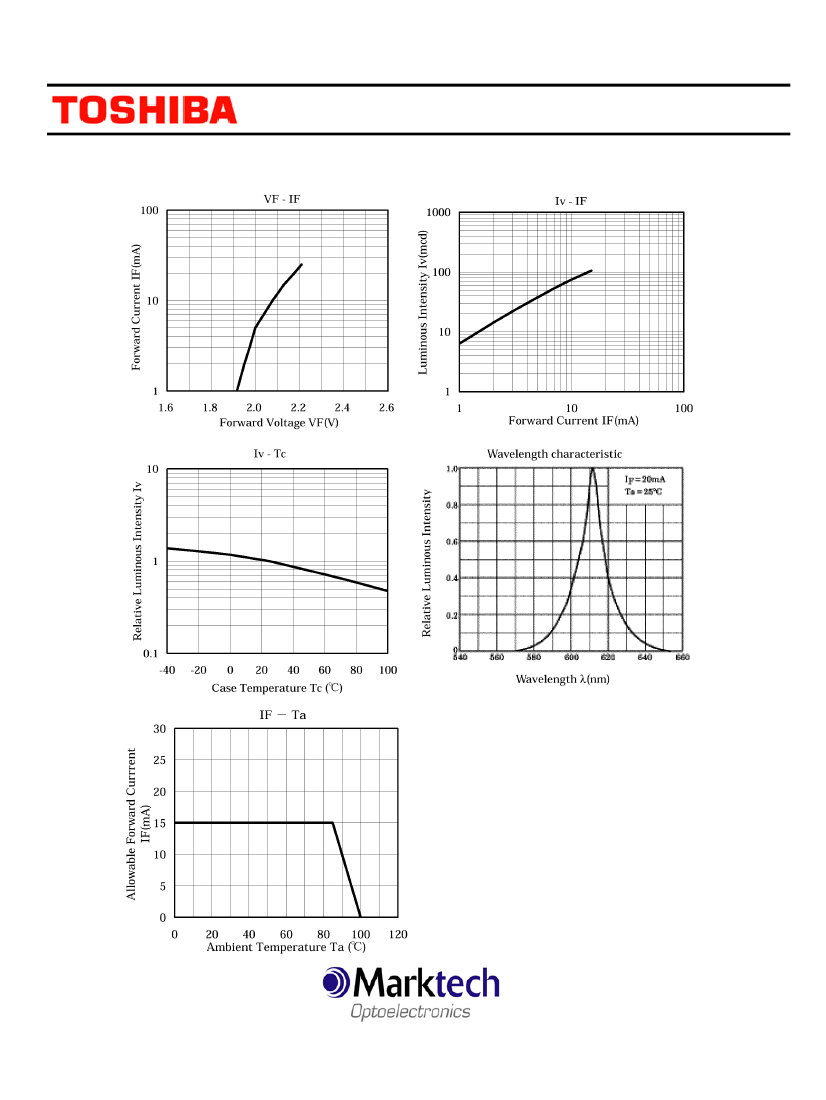

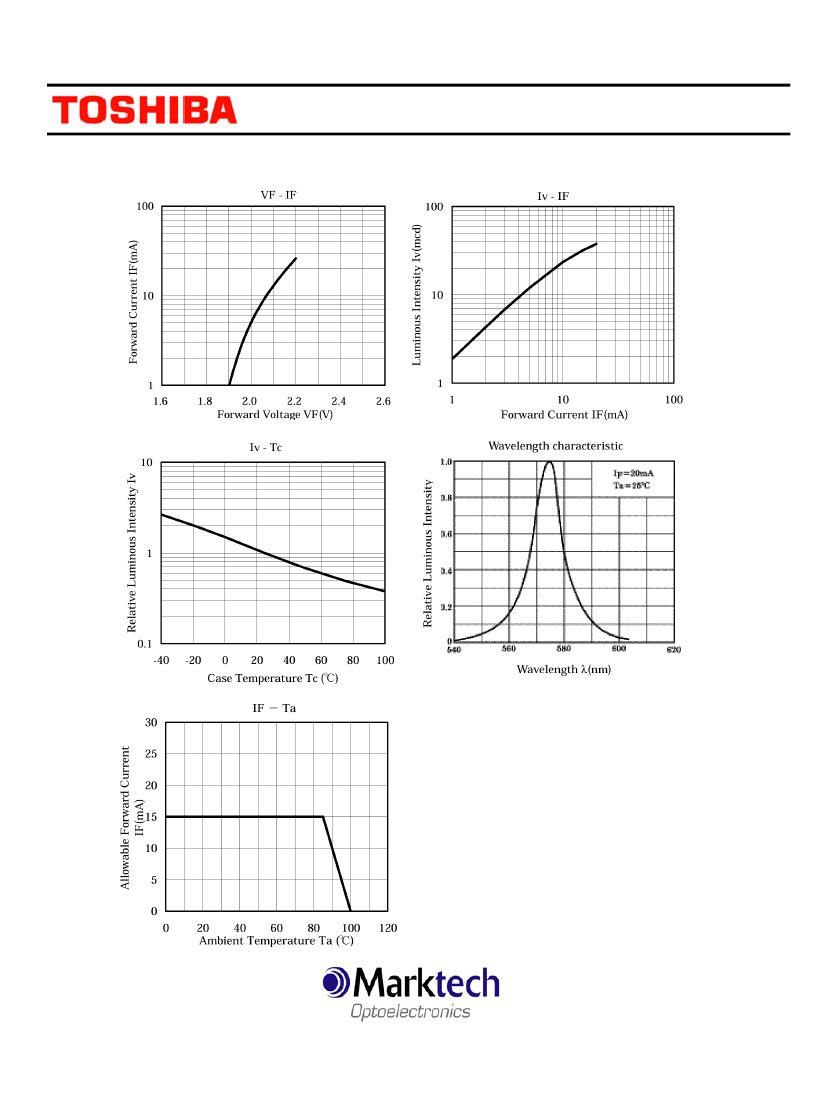

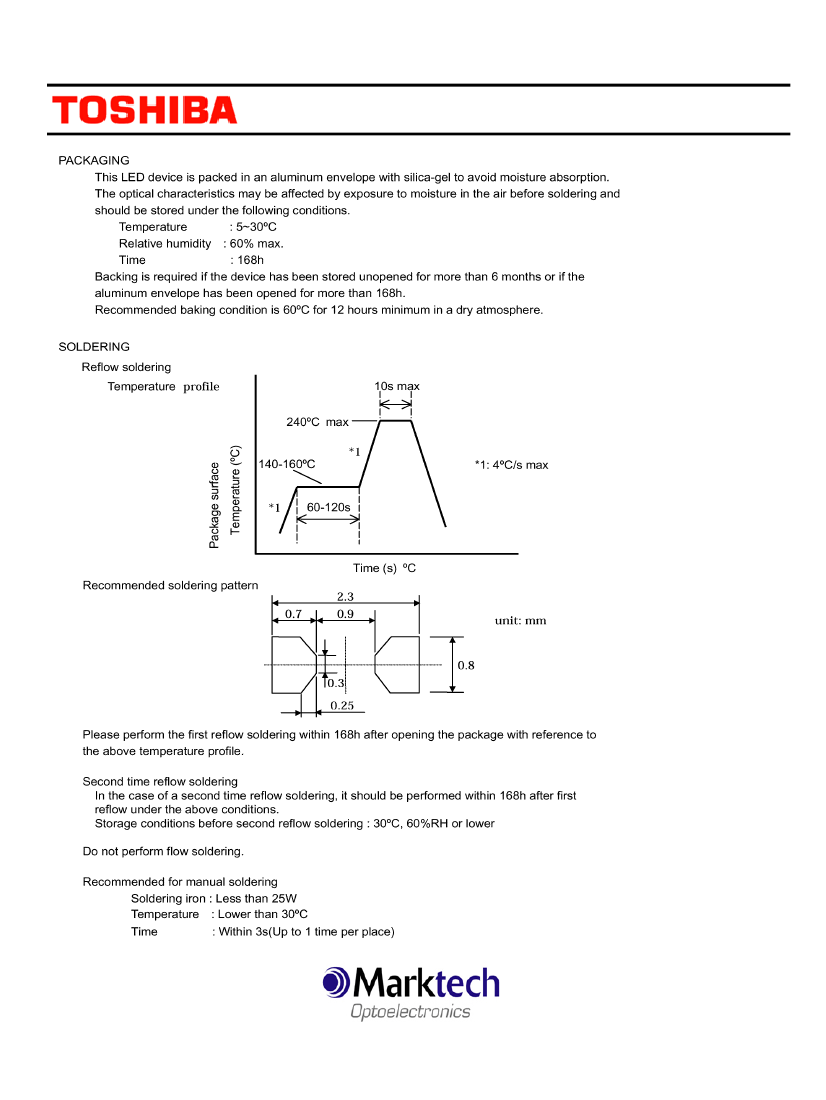

NOTICE:
•
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can
malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the buyer, when
utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and to avoid situations in
which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
•
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the most recent
TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling Guide for
Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc..
•
The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal equipment,
office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are neither intended nor
warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause
loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or spaceship
instruments, transportation instruments, traffic signal instruments, combustion control instruments, medical instruments, all types of safety
devices, etc.. Unintended Usage of TOSHIBA products listed in this document shall be made at the customer’s own risk.
•
Gallium arsenide (GaAs) is a substance used in the products described in this document. GaAs dust and fumes are toxic. Do not break, cut
or pulverize the product, or use chemicals to dissolve them. When disposing of the products, follow the appropriate regulations. Do not
dispose of the products with other industrial waste or with domestic garbage.
•
The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by TOSHIBA
CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its use. No license is
granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or others.
•
The information contained herein is subject to change without notice.
