Part Number:
Status:
Description:
0901210143
Active
2.54mm (.100") Pitch C-Grid III™ Header, Single Row, Right Angle, 23 Circuits, Tin
(Sn) Plating
Documents:
3D Model

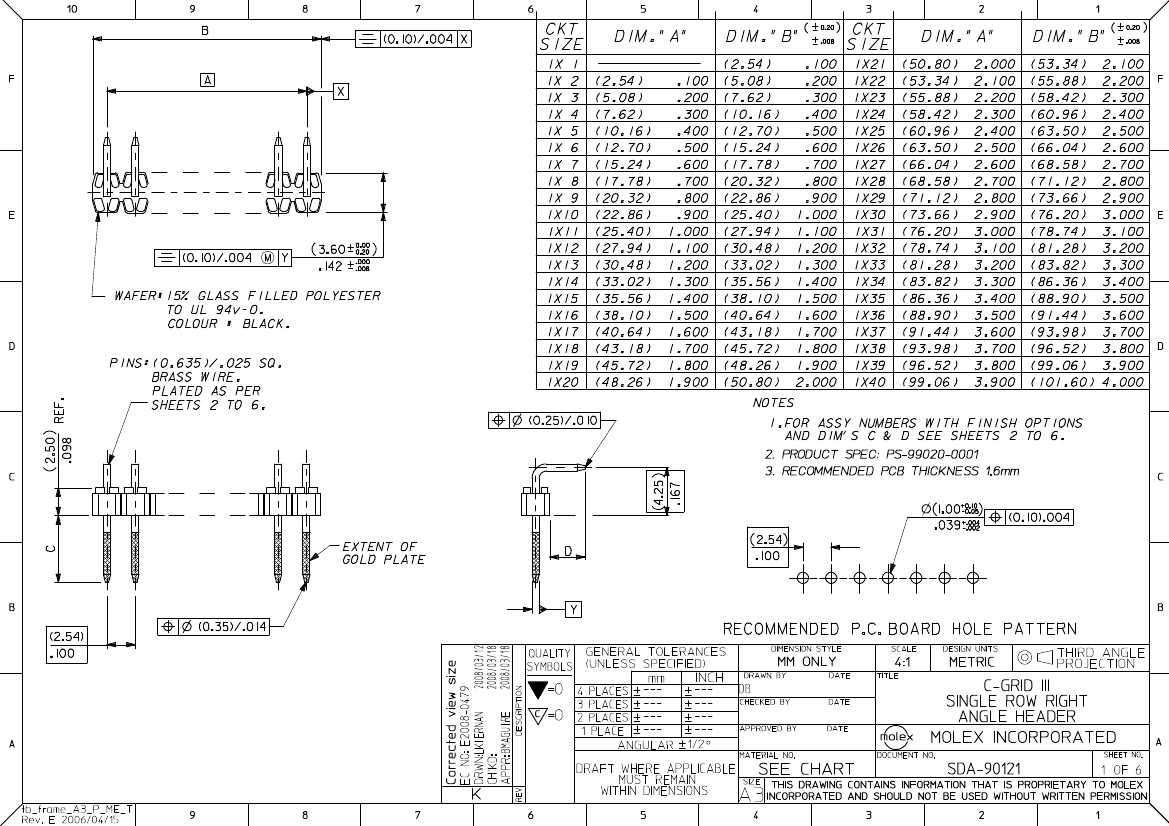

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Product Name
PCB Headers
90121
Wire-to-Board
C-Grid III™
Series

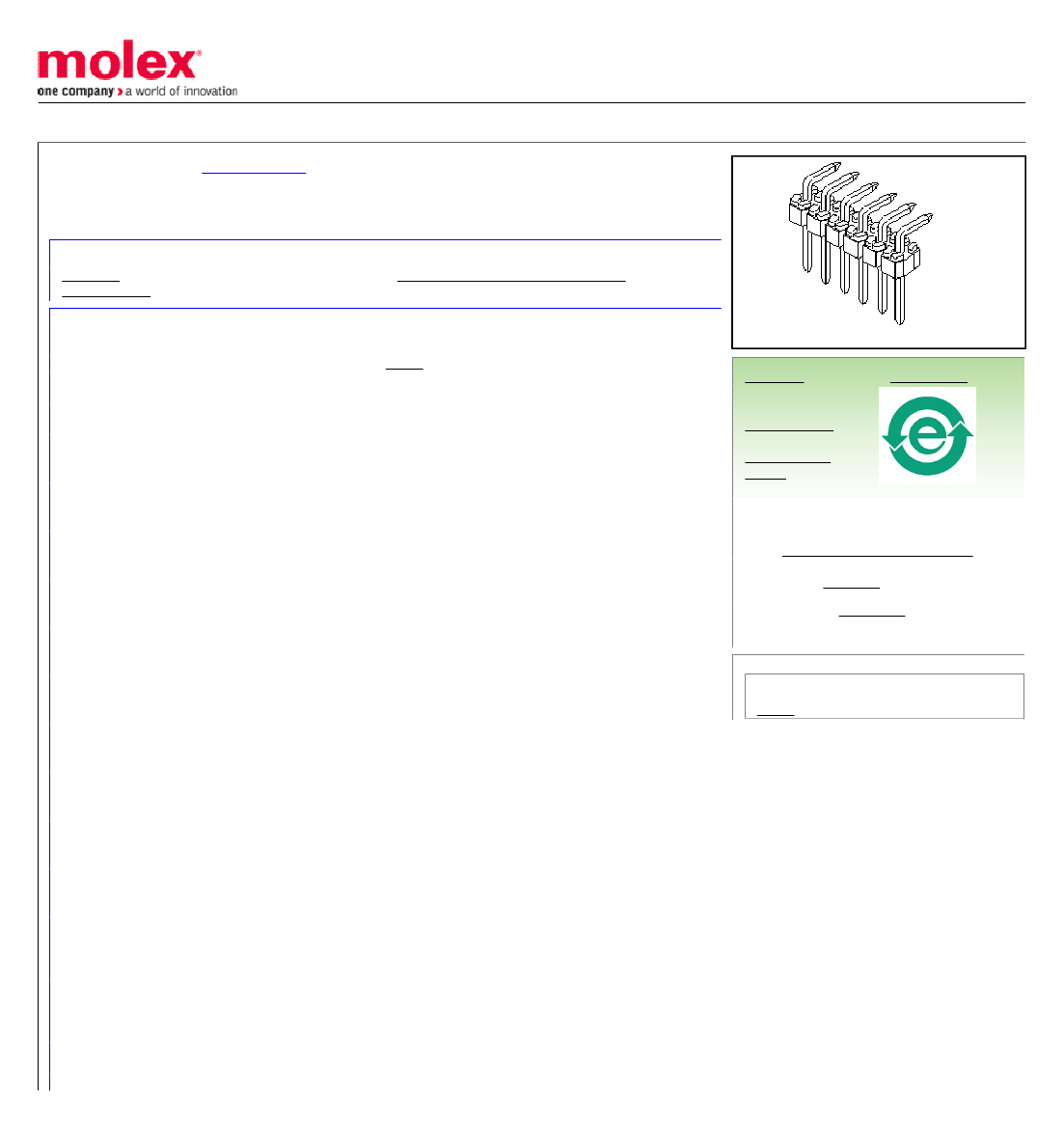

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
23
23
Black
No
No
No
None
None
Brass
Tin
Tin
Polyester
1
Right Angle
0.114 In
2.90 mm
No
None
Bag
0.100 In
2.54 mm
160
4.00
120
3
No
No
No
No
-55°C to +125°C
Through Hole
Search Parts in this Series
90121Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
350V
Material Info

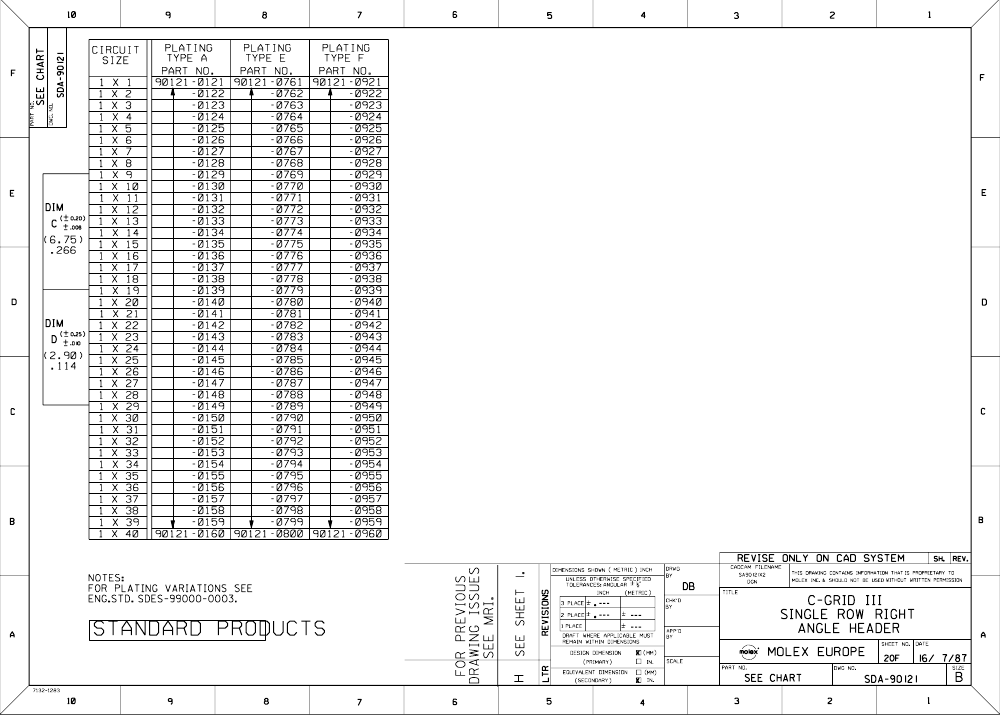

Reference - Drawing Numbers
Sales Drawing
SDA-90121
