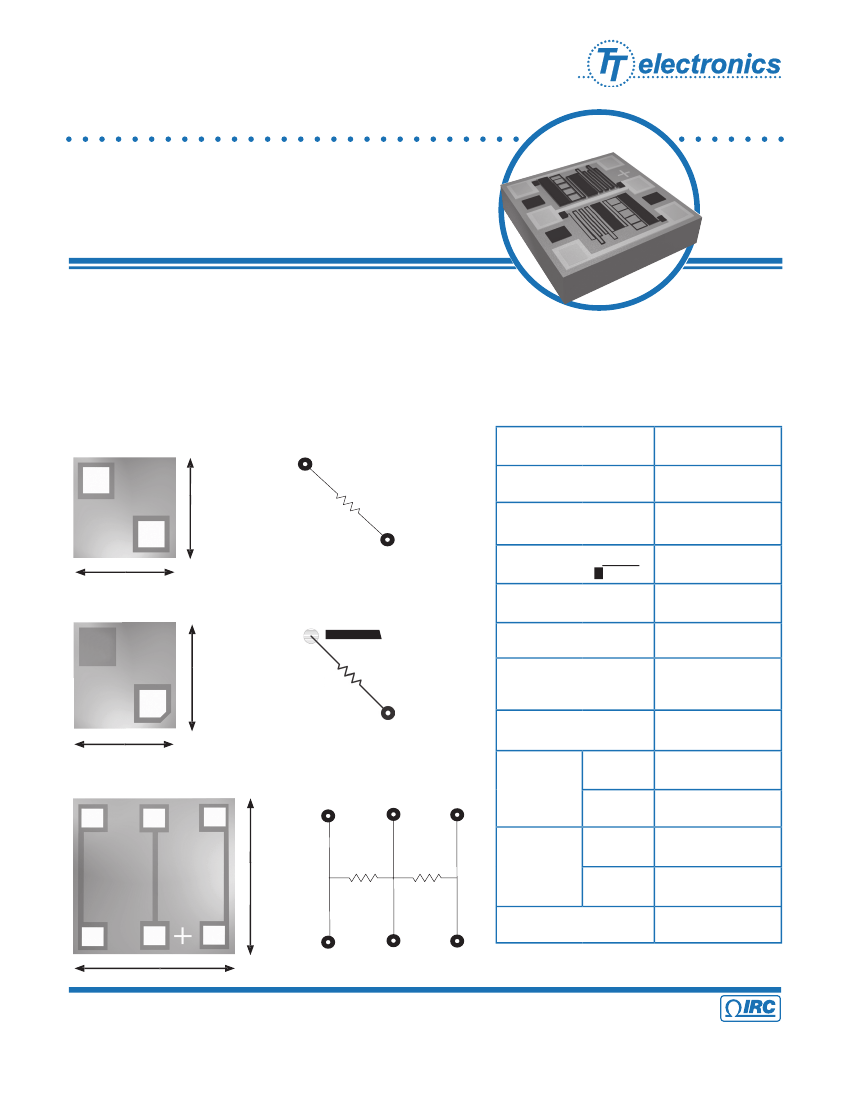

Wire Bondable
High Range Chip Resistors
WBC-CR Series
•
New CHROMAXX
TM
film system
•
Discrete or tapped schematics
•
MIL inspection available
•
High resistor density
IRC Advanced Film Division
IRC’s WBC-CR series now brings higher ohmic range thin film
capabilities to hybrid applications. Using IRC’s new CHROMAXX
TM
film system on silicon substrates provides thin film performance on an extremely small footprint. Custom
resistance values, sizes and schematics are available on request from the factory.
Physical Data
R0202 - Discrete
(0.508mm ±0.025)
0.020˝ ±0.001
Electrical Data
Absolute Tolerance
Absolute TCR
R
Package Power Rating
(@ 70°C)
Rated Operating Voltage
(not to exceed
√
P x R )
Operating Temperature
Back contact
Noise
Substrate Material
Top contact
Substrate Thickness
Aluminum
Gold
R0202 and
T0303
B0202
Passivation
to ±0.1%
to ±100ppm/°C
250mW
100V
-55°C to +150°C
<-30dB
Oxidized Silicon
(10KÅ SiO
2
min)
0.010˝ ±0.001
(0.254mm ±0.025)
10KÅ minimum
15KÅ minimum
Silicon
(Gold available)
Gold
3KÅ minimum
Silicon Dioxide or
Silicon Nitride
0.004˝ min bond pad size
0.020˝ ±0.001
(0.508mm ±0.025)
B0202 - Discrete back contact
(0.508mm ±0.025)
0.020˝ ±0.001
R
Top contact
pad chamfered
0.004˝ min bond pad size
0.020˝ ±0.001
(0.508mm ±0.025)
T0303 - Tapped network ½R + ½R
Bond Pad
Metallization
(0.762mm ±0.025)
0.030˝ ±0.001
Backside
½R
½R
0.030˝ ±0.001
(0.762mm ±0.025)
0.004˝ min bond pad size
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
A subsidiary of
TT electronics plc
WBC-CR Series Issue April 2006
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
Wire Bondable
High Range Chip Resistors
Power Derating Data
IRC Advanced Film Division
TCR/Inspection Code Table
Absolute TCR
±300ppm/°C
±100ppm/°C
Commercial
Code
00
01
MIL Inspection
Code*
04
05
*Notes: Product supplied to Class H of MIL-PRF 38534 include 100% visual inspection
Manufacturing Capabilities Data
Resistance Range
1.01MΩ-2.0MΩ
Available Absolute
Tolerances
F G J K
Available Ratio
Tolerances (T0303 only)
D F G J
Best Absolute TCR
±100ppm/°C
Tracking TCR
(T0303 only)
±5ppm/°C
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
WBC
WBC-CR Series Issue April 2006
Wire Bondable
High Range Chip Resistors
Environmental Data
Test
Method
MIL-STD-202
Method 107
Test condition F
MIL-STD-883
Method 1008
150°C, 1000 hours
-55°C, 1000 hours
MIL-STD-202
Method 108
70°C, 1000 hours
MIL-STD-202
Method 108
125°C, 1000 hours
Max
∆R
IRC Advanced Film Division
Typical
∆R
Thermal Shock
±0.1%
±0.02%
High Temperature Exposure
±0.1%
±0.05%
Low Temperature Storage
±0.03%
±0.01%
Life
±0.5%
±0.01%
Life at Elevated Temperature
±0.5%
±0.05%
Ordering Data
Prefix
Style
R0202CR = Discrete Element
B0202CR = Discrete Element with Back Contact
T0303CR = Tapped Network
WBC -
RO2O2CR
A
S
- 01 - 2004 -
F
B
Bonding pads
A = Aluminum; G = Gold
Backside
G = Gold; S = Silicon
TCR/Inspection Code
Reference TCR/Inspection Code Table
Total Resistance (R)
4-Digit Resistance Code; Ex: 1014 = 1.01MΩ; 2004 = 2.0MΩ
Absolute Tolerance Code
K = ±10%; J = ±5%; G = ±2%; F = 1%
Ratio Tolerance Code (T0303 Only)
J = ±5%; G = ±2%; F= ±1%; D = 0.5%
Packaging
Standard packaging is 2˝ x 2˝ chip tray. For additional information or to discuss your
specific requirements, please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
WBC
WBC-CR Series Issue April 2006
