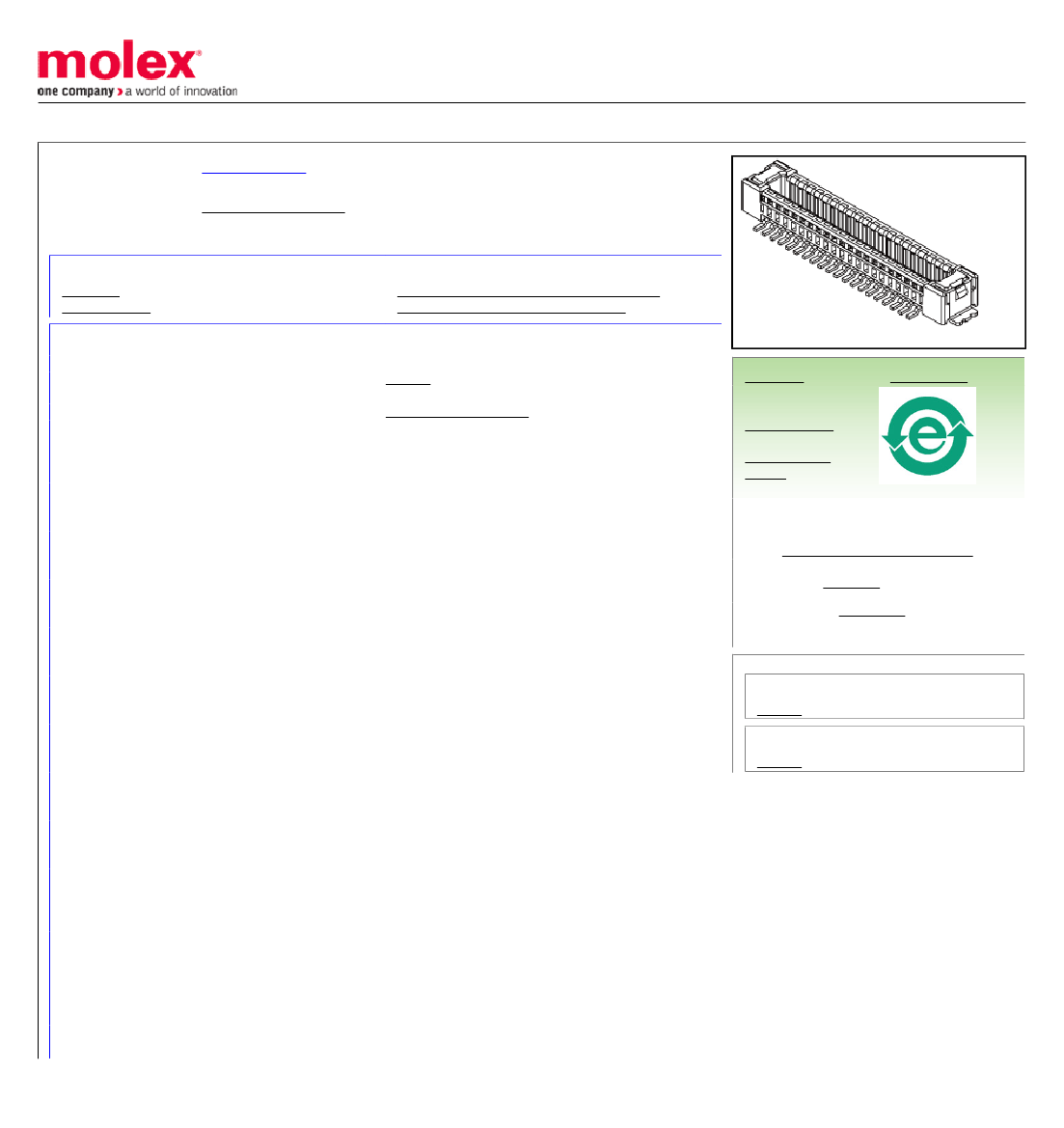

5016390510: Description0.40mm (.016") pitch slimstack board-to-board plug, smt, dual row, vertical stacking; File Size118KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5016390510 Overview

0.40mm (.016") pitch slimstack board-to-board plug, smt, dual row, vertical stacking

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5016390510

Active

slimstack_mm016_pitch

0.40mm (.016") Pitch SlimStack™ Board-to-Board Plug, SMT, Dual Row, Vertical

Stacking, 1.70mm (.067") Stacking Height, With Solder Tabs, 50 Circuits

Documents:

3D Model

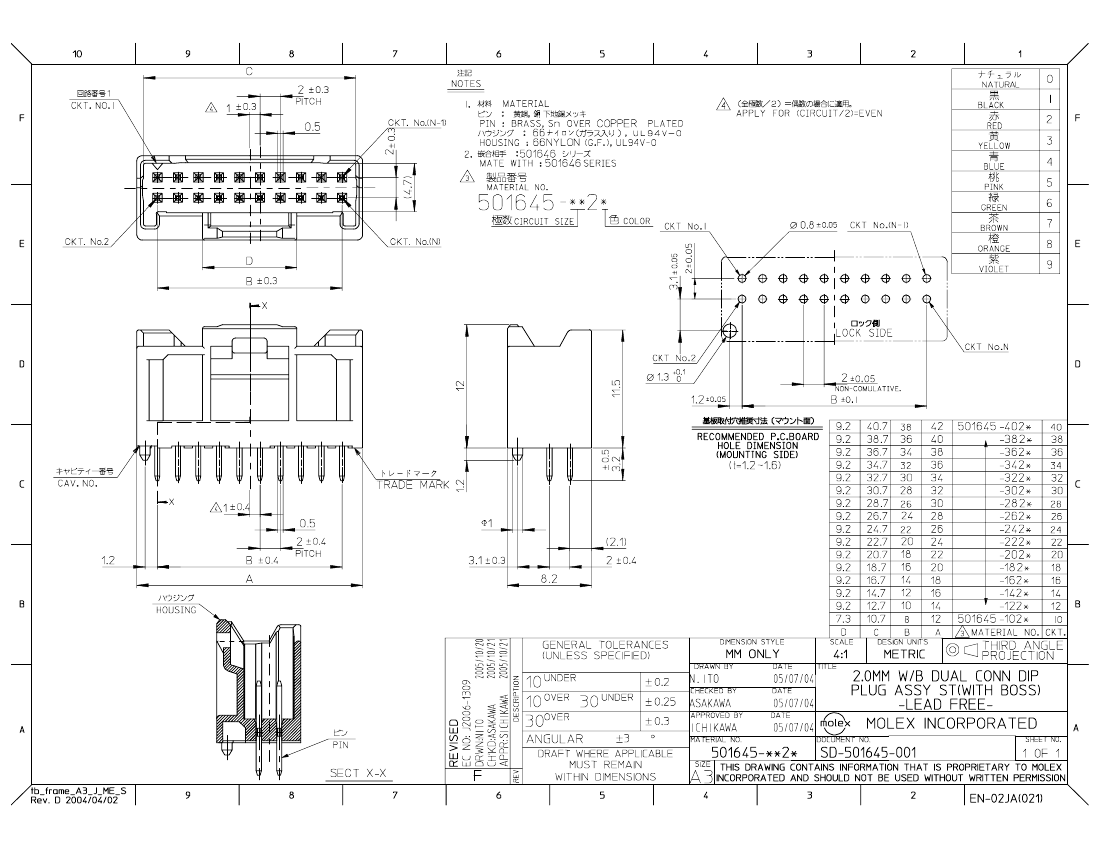

Drawing (PDF)

Product Specification PS-501635-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

501639

Board-to-Board

slimstack_mm016_pitch

SlimStack™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

Yes

0.067 In

1.70 mm

Brass, Phosphor Bronze

Gold

Vertical

Yes

Embossed Tape on Reel

0.016 In

0.40 mm

0.016 In

0.40 mm

Yes

-25°C to +85°C

Surface Mount

Search Parts in this Series

501639Series

Mates With

501635 PCB Receptacle

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-501639-001

PS-501635-001

SD-501639-001, SD-501639-002
