Part Number:
Status:
Description:
5016351020
Active
0.40mm (.016") Pitch SlimStack™ Board-to-Board Receptacle, SMT, Dual Row,
Vertical Stacking, 2.50mm (.098") Stacking Height, With Solder Tabs, 100 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-501635-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Receptacles
501635
Board-to-Board
SlimStack™

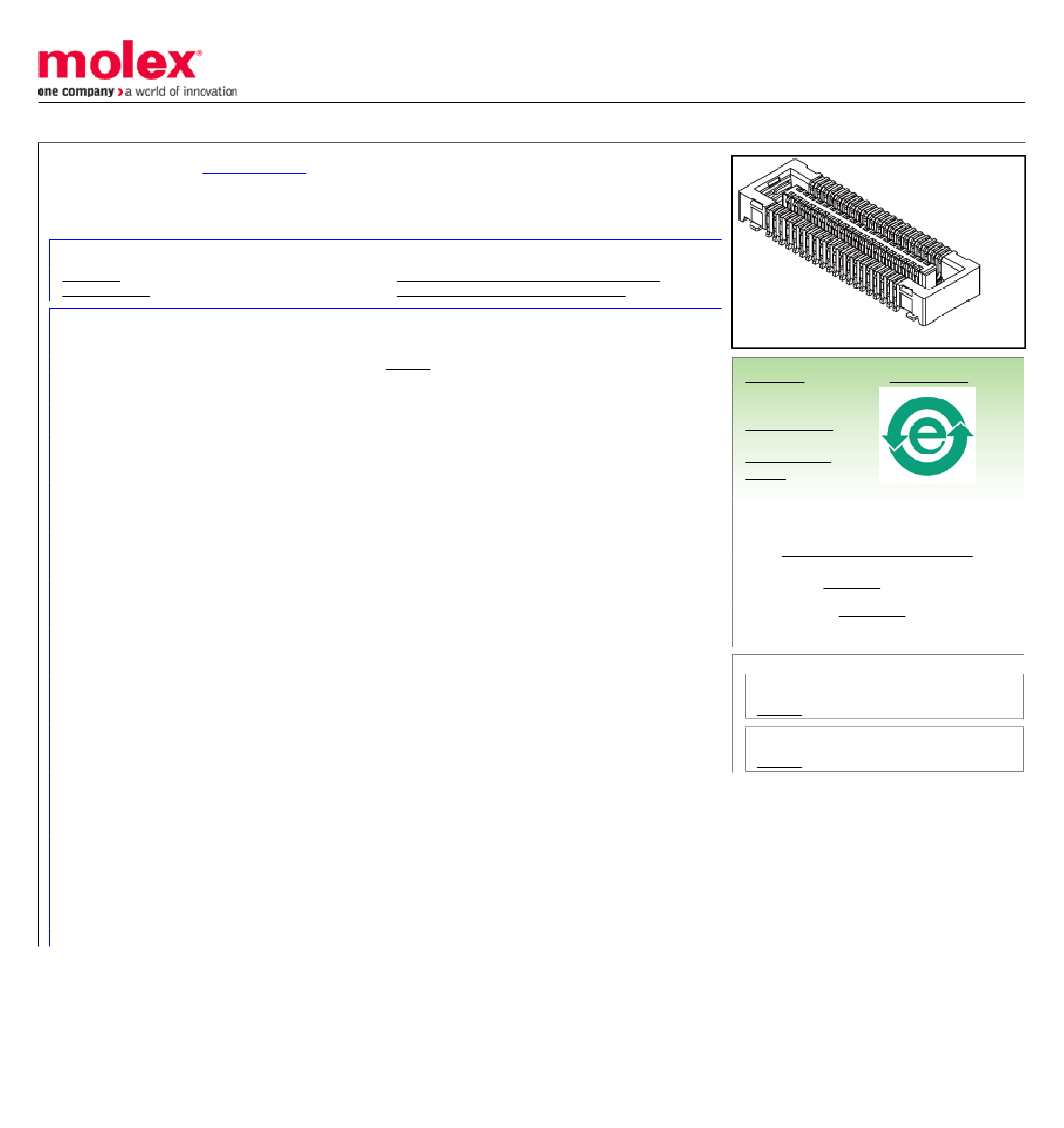

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Product Name
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
100
Black
30
No
Yes
0.098 In
2.50 mm
Copper Alloy, Phosphor Bronze
Gold
Gold
2
Vertical
Yes
Embossed Tape on Reel
0.016 In
0.40 mm
0.016 In
0.40 mm
No
No
-25°C to +85°C
Surface Mount
Search Parts in this Series
501635Series
Mates With
502396 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
50V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-501635-002, RPS-501635-004
SD-501635-003, SD-501635-004
