5016285191 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5016285191

5016285191: Description0.30mm (.012") pitch easy-On type fpc connector, 0.90mm (.035") mated height, right angle, smt, bottom; CategoryThe connector The connector; File Size394KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5016285191 Overview

0.30mm (.012") pitch easy-On type fpc connector, 0.90mm (.035") mated height, right angle, smt, bottom

5016285191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compli
Factory Lead Time	16 weeks
Board mount options	FITTING NAIL
body width	0.035 inch
subject depth	0.122 inch
body length	0.685 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.302 mm
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	51
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

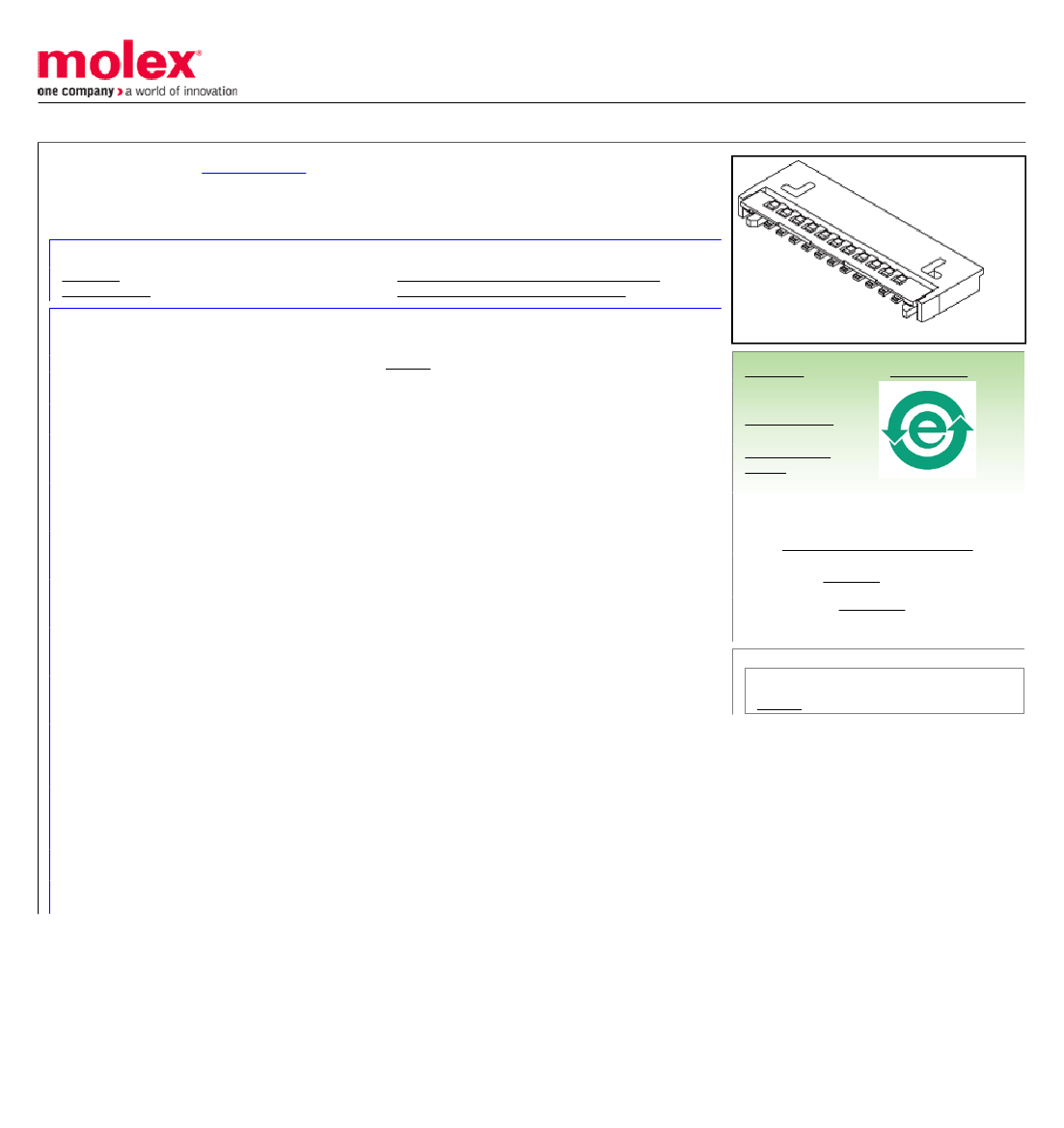

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5016285191

Active

0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 0.90mm (.035") Mated Height,

Right Angle, SMT, Bottom Contact Style, 51 Circuits, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501628-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

FFC/FPC Connectors

501628

FPC with tabs

Easy-On™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Product Name

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Bottom

90° Angle

0.035 In

0.90 mm

Copper Alloy

Gold

Right Angle

Yes

Embossed Tape on Reel

0.012 In

0.30 mm

Yes

-25°C to +85°C

Surface Mount

FPC only

Search Parts in this Series

501628Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.2A

50V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-501628-001, RPS-501628-003, RPS-501628-004

SD-501628-001, SD-501628-003

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
