MAADSS0013
Digital Attenuator, 4-Bit, Single Control
15 dB, 0.05 - 4.0 GHz
Features
•
•
•
•
•
•
•
•
•
•
Integrated Logic
Positive Single Control
Insertion Loss: 1 dB @ 1.0 GHz
IP3: 42 dBm typical @ 2.0 GHz
Attenuation Accuracy: 0.2 dB + 2% @ 1.0 GHz
1-dB Attenuation Steps to 15 dB
Low DC Power Consumption
Lead-Free 3mm PQFN-16LD Plastic Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Re-flow Compatible
Rev. V1
Functional Schematic
3
Description
M/A-COM’s MAADSS0013 is a 4-bit, 1-dB step
GaAs MMIC digital attenuator in a lead-free 3mm
PQFN-16LD surface mount plastic package. The
MAADSS0013 is ideally suited for use where high
accuracy, very low power consumption and low
intermodulation products are required. Typical
applications include radio, cellular, wireless LANs,
GPS equipment and other gain / level control
circuits.
The MAADSS0013 is part of a digital attenuator
family. This family includes 4, 5, and 6 bit
attenuators with 0.5, 1, or 2 dB steps and up to 31.5
range.
3. Blocking capacitors are required on all RF ports.
Pin Configuration
Pin No.
1
2
3
4
5
6
7
Function
V
DD
RF In/Out
N/C or GND
Ext. C to GND
Ext. C to GND
Ext. C to GND
N/C or GND
Ext. C to GND
Pin No.
9
10
11
12
13
14
15
16
Function
N/C or GND
N/C or GND
RF In/Out
N/C or GND
V8 (8 dB Bit)
V4 (4 dB Bit)
V2 (2 dB Bit)
V1 (1 dB Bit)
Ordering Information
1,2
Part Number
MAADSS0013TR-1000
MAADSS0013TR-3000
MAADSS0013SMB
Package
1000 piece reel
3000 piece reel
Sample Board
8
Absolute Maximum Ratings
4,5
Parameter
Input Power
0.5 - 4.0 GHz
Control Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+33 dBm
-0.5 V < V
C
< 5.5 V
-40°C to +85°C
-65°C to +150°C
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0013
Digital Attenuator, 4-Bit, Single Control
15 dB, 0.05 - 4.0 GHz
Electrical Specifications
6,7
: T
A
= 25°C, Z
0
= 50
Ω,
V
DD
= 5 V, V
C
= 2.8 V
Parameter
Test Conditions
Units
Min.
Typ.
Max.
Rev. V1
Reference Insertion Loss
1.0 GHz
dB
—
1.0
1.3
Attenuation Accuracy
VSWR
Trise, Tfall
Ton, Toff
Transients
Input P1dB
1.0 GHz
0.05 - 4.0 GHz
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF,
50% Control to 10% RF
In Band
2.0 GHz
2-Tone, +5 dBm/tone, 1 MHz Spacing
0.5 GHz
2.0 GHz
2-Tone, +5 dBm/tone, 1 MHz Spacing
0.5, 2.0 GHz
V
C
= 2.8 V
V
DD
= 5 V
± (0.2 dB + 2% of attenuation setting in dB) dB
Ratio
ns
ns
mV
dBm
—
—
—
—
—
—
—
1.5:1
40
65
75
30
75
80
—
—
—
—
—
—
—
Input IP
2
dBm
Input IP
3
I
C
I
DD
dBm
µA
µA
—
—
—
42
15
170
—
25
250
6. External DC blocking capacitors are required on all RF ports.
7. Low frequency performance is determined by DC block and GND capacitor value.
Truth Table
8
VC1
0
1
0
0
0
1
VC2
0
0
1
0
0
1
VC4
0
0
0
1
0
1
VC8
0
0
0
0
1
1
Attenuation (dB)
Reference IL
1
2
4
8
15
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
8. 0 = 0 V , 1 = +2.8 to 5 V.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0013
Digital Attenuator, 4-Bit, Single Control
15 dB, 0.05 - 4.0 GHz

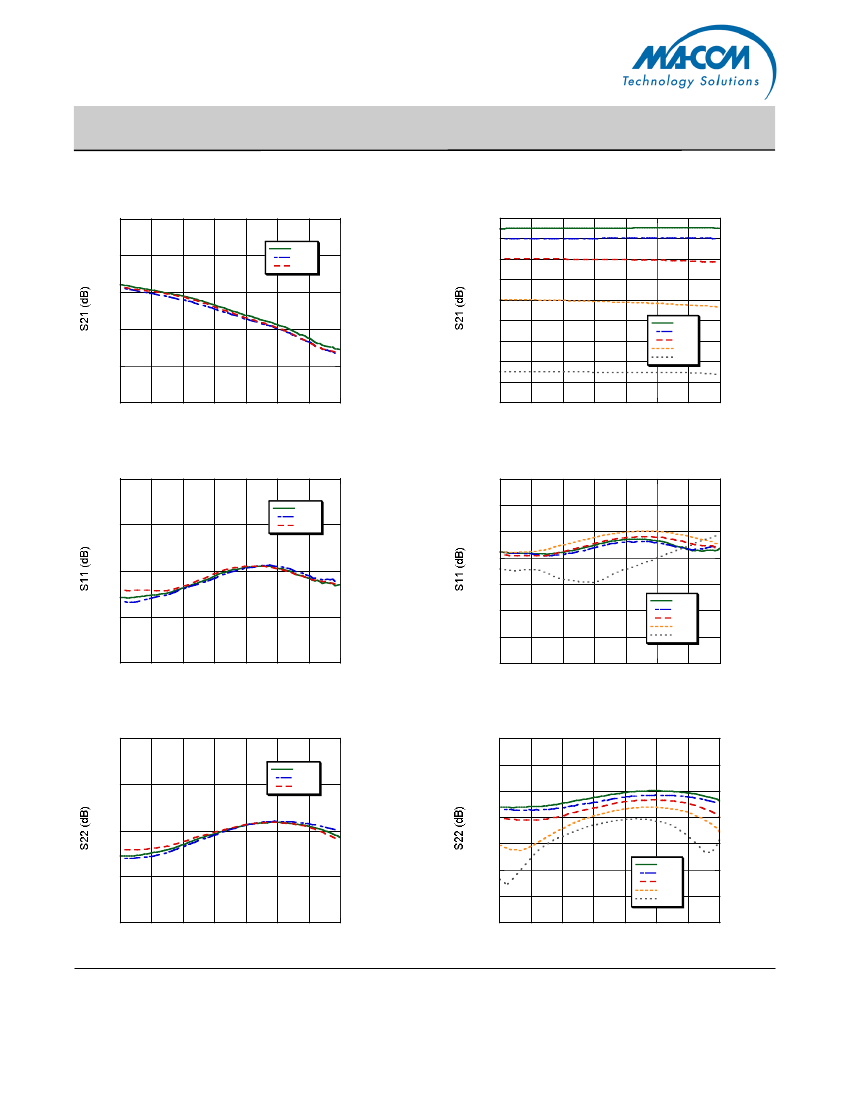

Typical Performance Curves
Insertion Loss
0.0
+25°C
-40°C
+85°C
Rev. V1
Relative Attenuation across all major states
0
-2
-0.5
-4
-6
-1.0
-8
-10
-12
1 dB
2 dB
4 dB
8 dB
15 dB
-1.5
-2.0
-14
-16
-2.5
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
-18
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Frequency (GHz)
Frequency (GHz)
Input Return Loss, Insertion Loss State
0
+25°C
-40°C
+85°C
Input Return Loss, across all major attenuation states
0
-10
-20
-30
-10
-20
-40
-30
-50
-60
-40
0.5
-70
0.5
1 dB
2 dB
4 dB
8 dB
15 dB
1.0
1.5
2.0
2.5
3.0
3.5
4.0
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Frequency (GHz)
Frequency (GHz)
Output Return Loss, Insertion Loss State
0
+25°C
-40°C
+85°C
Output Return Loss, across all major attenuation states
0
-10
-20
-30
-10
-20
-40
-30
-50
-60
-40
0.5
-70
0.5
1 dB
2 dB
4 dB
8 dB
15 dB
1.0
1.5
2.0
2.5
3.0
3.5
4.0
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Frequency (GHz)
Frequency (GHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAADSS0013
Digital Attenuator, 4-Bit, Single Control
15 dB, 0.05 - 4.0 GHz
Typical Performance Curves

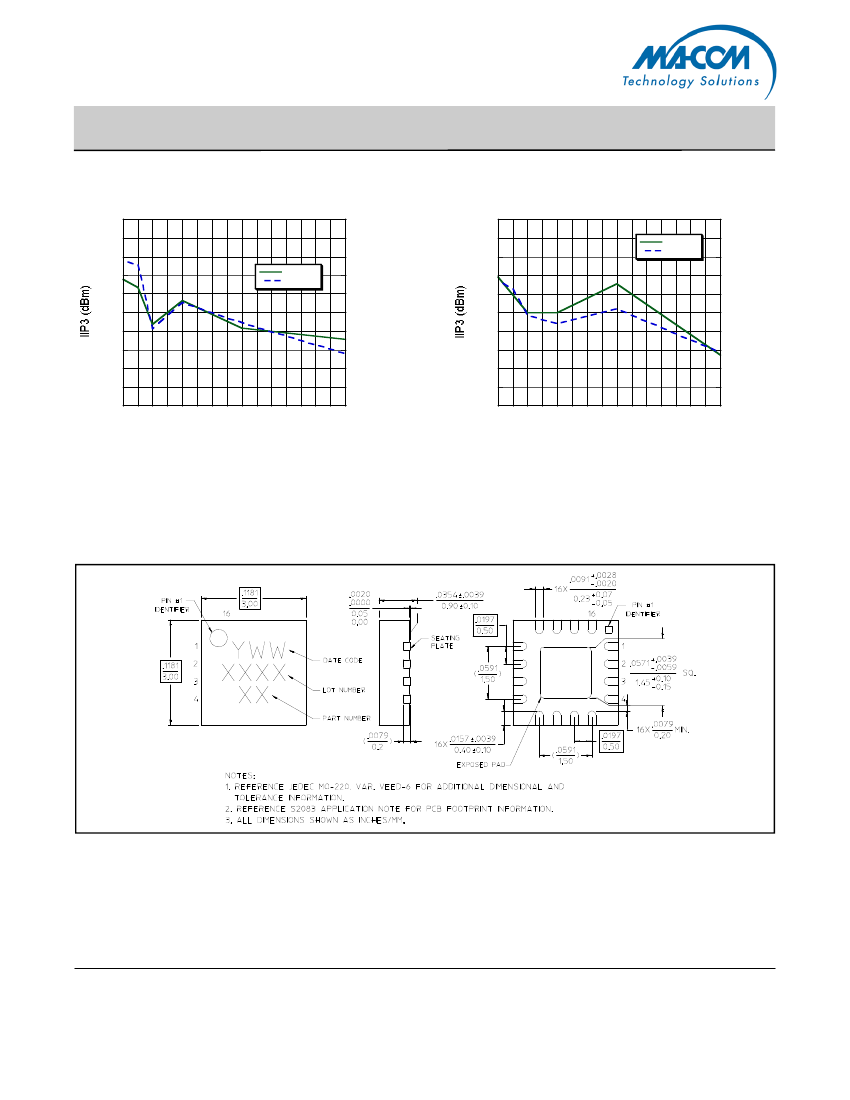

Input IP3 @ 0.5 GHz
50
Rev. V1
Input IP3 @ 2 GHz
50
IIP3_Low
IIP3_High
48
IIP3_Low
IIP3_High
48
46
46
44
44
42
42
40
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
40
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Attenuation
Attenuation
Lead Free
3 mm 16-Lead PQFN
†
† Reference Application Note S2083 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
