2095-2-56-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2095-2-56-1

2095-2-56-1: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2095-2-56-1 Overview

Board Connector, 56 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Plug

2095-2-56-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307965702
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.379 inch
body length	2.217 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	2095
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	56
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

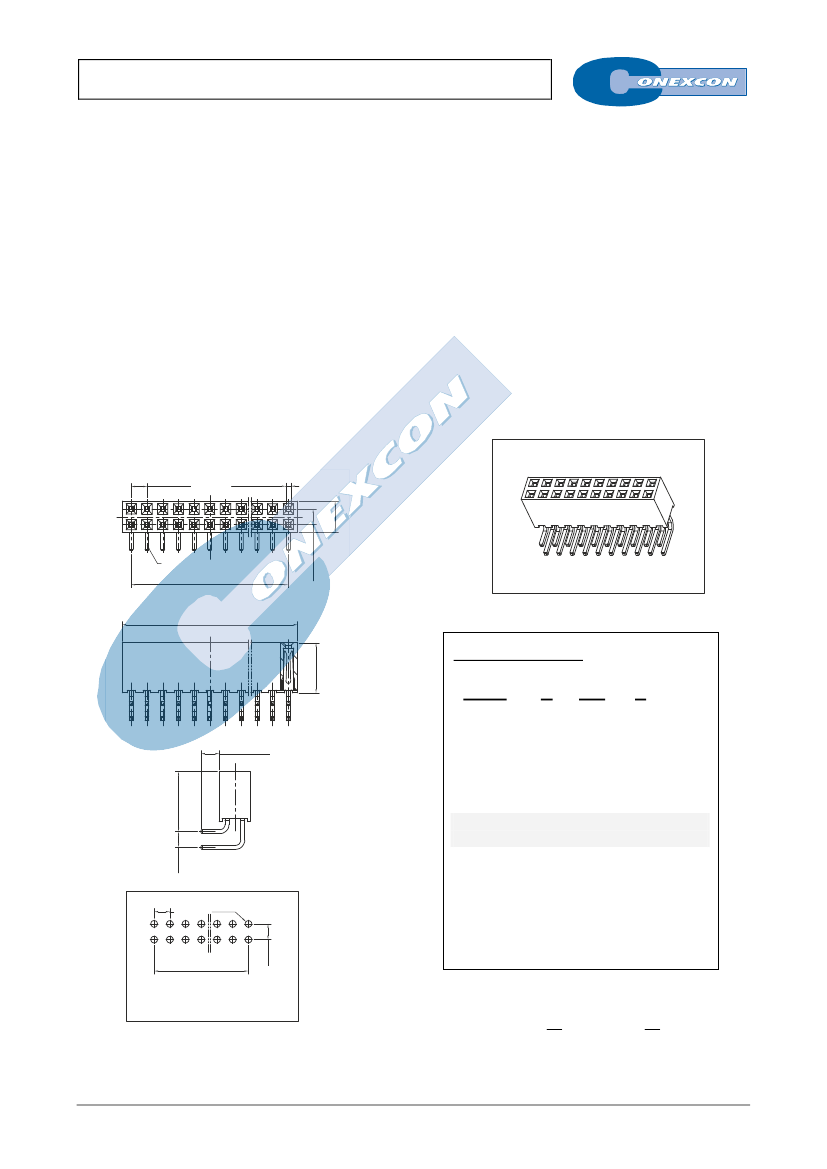

DUAL ROW RIGHT ANGLE SOCKET

2095 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits

Mates with pin header 2.00 mm. pitch 2026, 2027, 2028,

2029, 2075, 2076, 2160, 2037 and 2177 series

Accepts 0.50 mm. square pin

Dual beam contact with different plating

5.00 mm heigh



Voltage rating: < 125V

Current rating: < 2 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2pF at 1 KHz.

Materials

Insulator: Polyester nylon 6T UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features

Insertion force receptacle/plug: < 0,30 Kgf/pin

Unmating force receptacle/plug: > 0,02 Kgf/pin

Contact retention force to housing: > 0,300Kgf/pin

Durability: 50 cycles

Dimension Information

2.00±0.1

0.66±0.08

4.00

Pin 0.5x0.5

A±0.20

B±0.25

2.00±0.1

6.35

Ordering Information:

2095 -

2.30±0.25

T-

XX-

1. Connector Series

2. (T) Contact Plating

7.62±0.25



2.00

ø0.85

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

2.00

3. (XX) Number of circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05 mm.)

2.00



Available in 4 through 80 circuits

XX = Number of circuits

DIMENSIONS

2.00

















2.00











0.30





(XX) = Number of circuits

A-XX

FULL LINE CATALOGUE
