8052-5141

Description
D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size201KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

8052-5141 Overview

D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle

8052-5141 Parametric

Parameter NameAttribute value
Objectid304387875
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.602 inch
body length1.736 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleCENTRONIC
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.085 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.2926 mm
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.126 inch
Terminal pitch2.159 mm
Termination typeSOLDER
Total number of contacts14
STRAIGHT DIP SOLDER RECEPTACLE
SERIES.
8052 SERIES
For PCB Solder. Centronic Connector
Features
!
#
Shell: Steel, tin plated as standard
#
Different plating options are available.
#
For other options consult the Sales Office

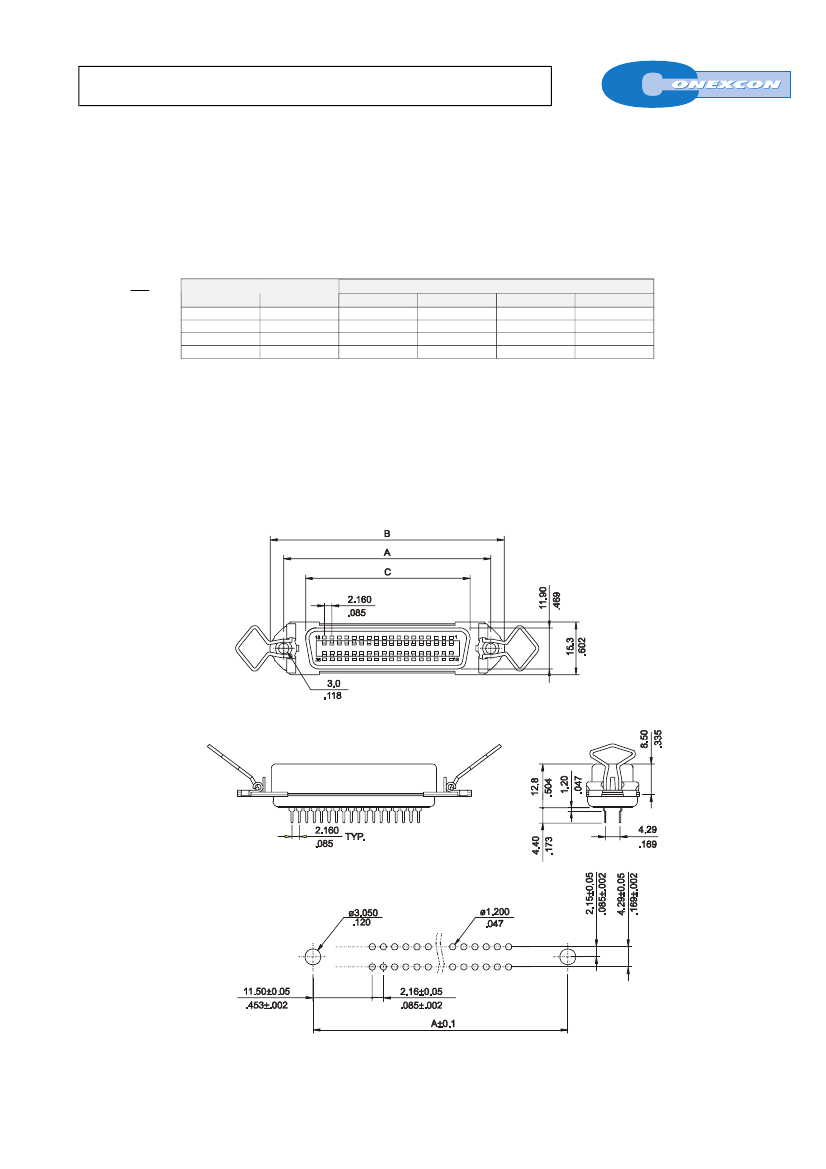

Ordering and Dimensional Information
#
Available in 14, 24, 36 and 50 circuits
#
Insulator Material: Glass filled polyester UL 94V-0
#
Contact Material: Phosphor bronze
Dimensional Information!
!
Unit:
mm.
Inch.
Circuit Size
14
24
36
50
Part Number
8052 –
T141
8052 –
T241
8052 –
T361
8052 –
T501
Dimensions
A
35.99 (1.417)
46.79 (1.842)
59.74 (2.352)
74.85 (2.947)
B
44.10 (1.736)
54.90 (2.161)
67.80 (2.669)
83.10 (3.272)
C
25.20 (0.992)
35.90 (1.413)
48.70 (1.917)
64.10 (2.524)
D
-
-
-
-
T = Contact Plating
#
T =
3.
Gold flash over 50µ” nickel
#
T =
4.
10µ” gold over 50µ” nickel
#
T =
5.
15µ” gold over 50µ” nickel
#
T =
6.
30µ” gold over 50µ” nickel
RECOMMENDED HOLE PATTERN
CONEXCON
Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
