8072-2621: DescriptionD Type Connector, 62 Contact(s), Female, 0.095 inch Pitch, Crimp Terminal, #4-40, Plug; CategoryThe connector The connector; File Size165KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8072-2621 Overview

D Type Connector, 62 Contact(s), Female, 0.095 inch Pitch, Crimp Terminal, #4-40, Plug

8072-2621 Parametric

Parameter Name	Attribute value
Objectid	304388065
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.354 inch
body length	2.729 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.095 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	62

Preview

Download Datasheet

View All

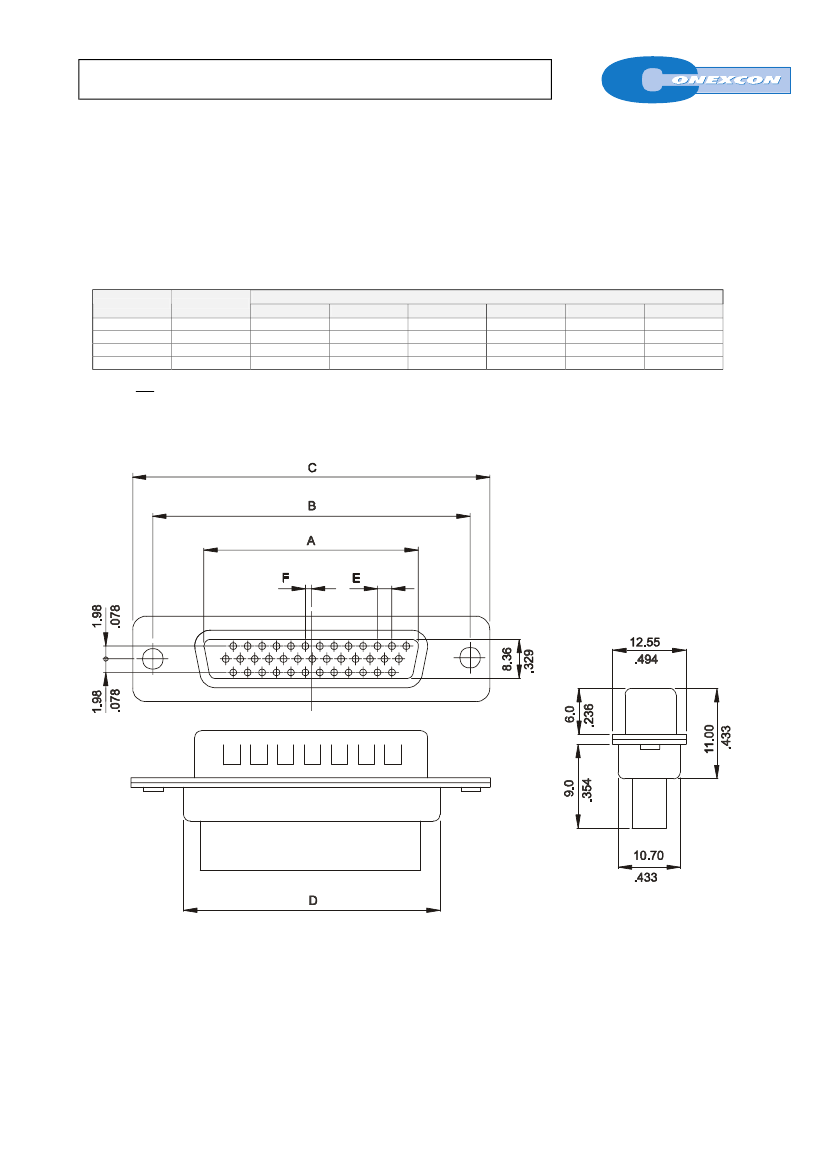

CRIMP TYPE HIGH DENSITY D-SUB PLUG

SERIES.

8072 SERIES

For Wire Crimp. High Density D-Sub Plug

Features

!

#

Can be used with terminals 8510 series

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information

#

Available in 15, 26, 44 and 62 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass, Colour: Black

Different plating options are available

Dimensional Information

Circuit Size

15

26

44

62

Unit:

mm.

Inch.

Part Number

8072 – 2151

8072 – 2261

8072 – 2441

8072 – 2621

Dimensional Information

A

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55.42 (2.182)

B

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

C

30.81 (1.213)

39.14 (1.541)

53.04 (2.088)

69.32 (2.729)

D

19.23 (0.757)

27.56 (1.085)

41.28 (1.625)

57.73 (2.273)

E

2.29 (0.090)

2.41 (0.095)

F

0.25 (0.010)

0.51 (0.020)

0.58 (0.023)

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
