8305-2421 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 8305-2421

8305-2421: DescriptionIC Socket, DIP42, 42 Contact(s), 1.778mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size172KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8305-2421 Overview

IC Socket, DIP42, 42 Contact(s), 1.778mm Term Pitch, 0.6inch Row Spacing, Solder

8305-2421 Parametric

Parameter Name	Attribute value
Objectid	304389774
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.697 inch
subject depth	0.201 inch
body length	1.47 inch
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact material	P-CUSN
Contact style	BELLOWED TYPE
Device slot type	IC SOCKET
Type of equipment used	DIP42
Shell material	GLASS FILLED POLYESTER
Manufacturer's serial number	8305
Plug contact pitch	0.07 inch
Installation method	STRAIGHT
Number of contacts	42
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	1.778 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

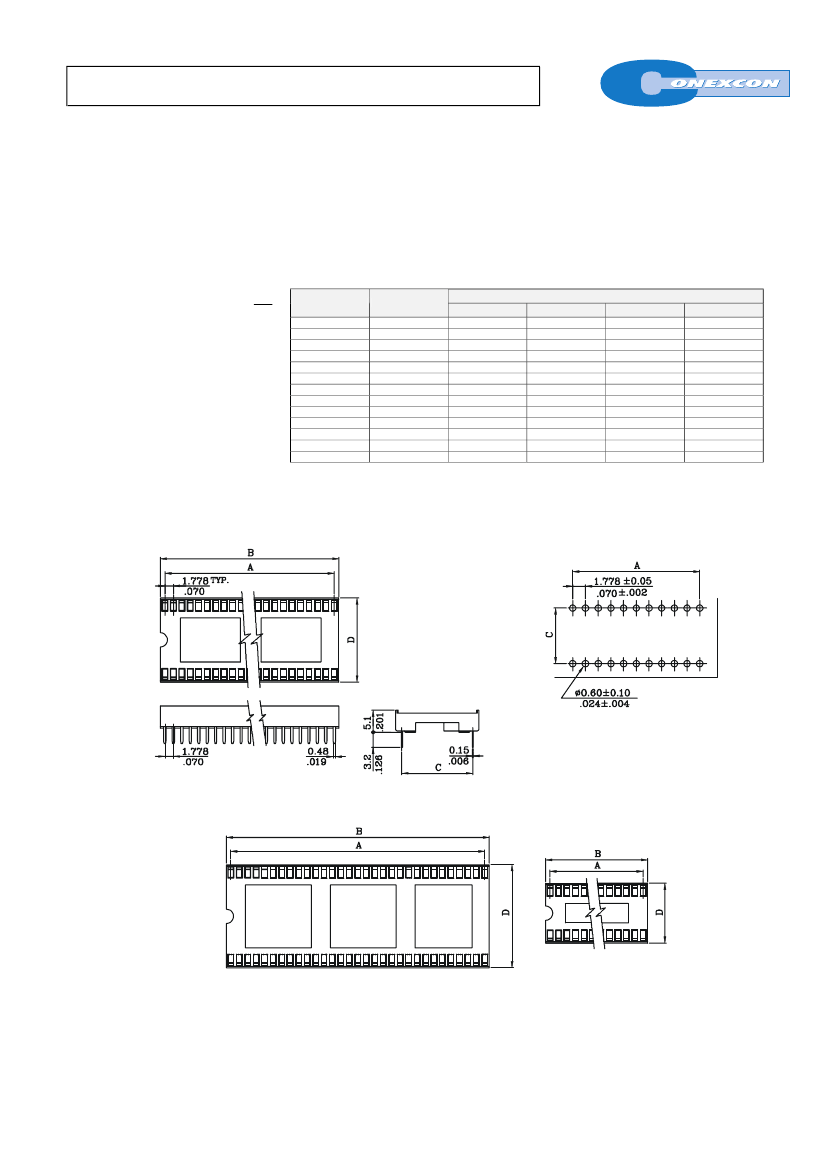

1.778mm(.070”) DIP IC SOCKET

SERIES.

8305 SERIES.

Dual In Line

Features

Available in 16, 20, 22, 24, 28, 30, 32, 40, 42, 48, 52, 56

and 64 circuits

Dual contact terminal in phosphor bronze tin plated

Insulator Material: Glass filled polyester UL 94V-0

Anti solder wicking

Saving on P.C.B. real estate

Can be manually and automatically inserted

Low profile

Ordering and Dimensional Information

Dimensional Information

mm.

Inch.

Unit:

Circuit Size

Part Number

8305 - 2161

8305 - 2201

8305 - 2221

8305 - 2241

8305 - 2281

8305 - 2301

8305 - 2321

8305 - 2401

8305 - 2421

8305 - 2481

8305 - 2521

8305 - 2561

8305 - 2641

Dimensions

12.446 (0.490)

16.002 (0.630)

17.780 (0.700)

19.558 (0.770)

23.114 (0.910)

24.892 (0.980)

26.670 (1.050)

33.782 (1.330)

35.560 (1.400)

40.894 (1.610)

44.450 (1.750)

48.006 (1.890)

55.118 (2.170)

14.22 (0.560)

17.78 (0.700)

19.55 (0.770)

21.33 (0.840)

24.89 (0.980)

26.67 (1.050)

28.45 (1.120)

35.56 (1.400)

37.34 (1.470)

42.67 (1.680)

46.22 (1.820)

49.78 (1.960)

56.90 (2.240)

7.620 (0.300)

10.160 (0.400)

15.240 (0.600)

19.050 (0.750)

10.01 (0.398)

12.60 (0.496)

17.70 (0.697)

21.50 (0.846)

RECOMMENDED HOLE PATTERN

For 40, 42, 48, 52 and 56 circuits

For 64 circuits

For 16, 20, 22, 24, 28

30 and 32 circuits

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
