8445-15-13-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8445-15-13-1

8445-15-13-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8445-15-13-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator

8445-15-13-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308958186
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.085 inch
body length	1.316 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8445
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

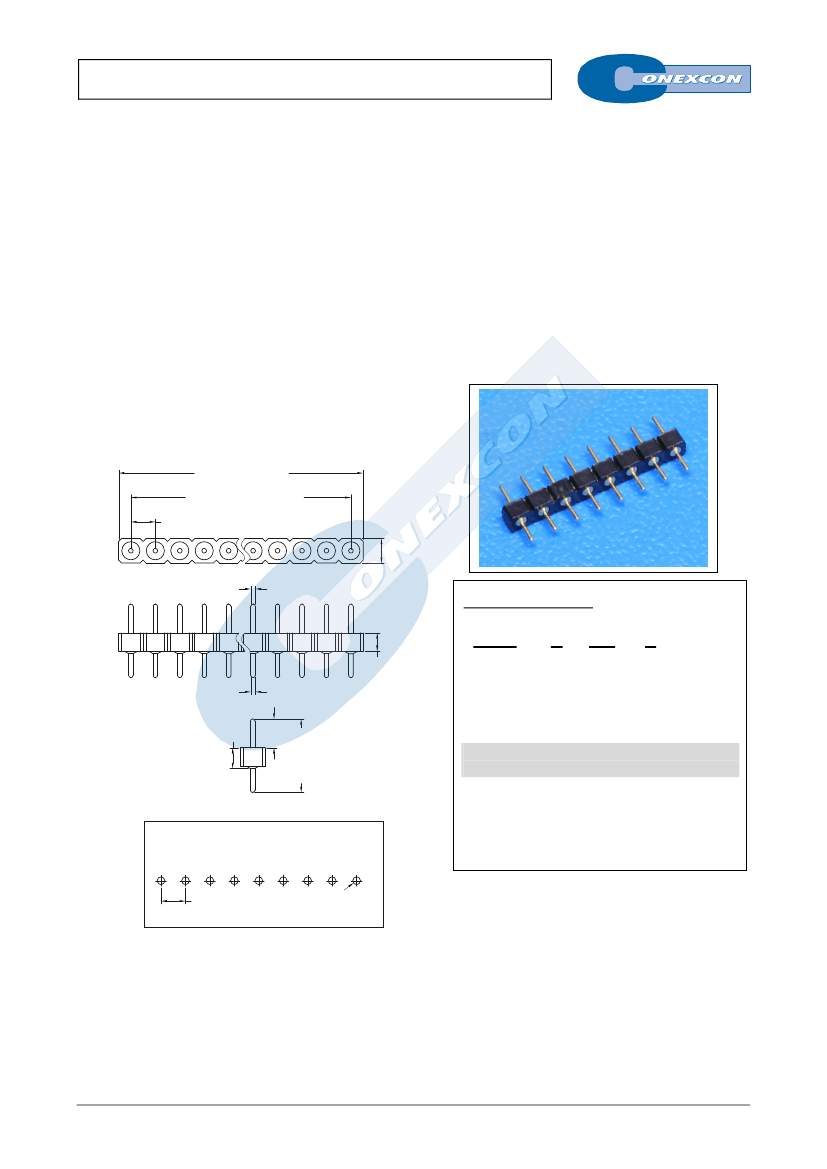

SINGLE ROW VERTICAL PIN HEADER

8445 SERIES.

2.54

General Features

mm. (0.100”) pitch. Machined contact.

Electrical Features



Available in 2 through 40 circuits

0.47 round pin in contact area with different plating

Insulator base 1.90 mm.

Low profile.



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 0.80 Kgf

Durability: 500 Cycles



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

2.54 x Nº Pos ±0.40

2.54 x Nº Cont.-2.54±0.20

2.54±0.10

2.54

ø0.47

Ordering Information:

8445 -

ø0.47

2.16

1.90

T-

XX-

1. Connector Series

2. (T) Contact Plating

3.00

7.64±0.20



T =

gold flash over 30-50µ" Ni overall

Recommended Finish

T =

15.

15µ" selec. gold over 30-50µ" Ni overall

T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



Available in 2 through 40 circuits

2.54

ø0

Dimensions:

(In mm.)

= 2.54 x (XX*-1)

= 2.54 x (XX*)+0.41

* XX

(Number of circuits)

A-XX
