Part Number:
Status:
Overview:
Description:
0700584096
Active
cgrid__sl_products
SL™ Crimp Terminal 70058, 24-30 AWG, Loose, Tin (Sn), Unplated Edges
Documents:

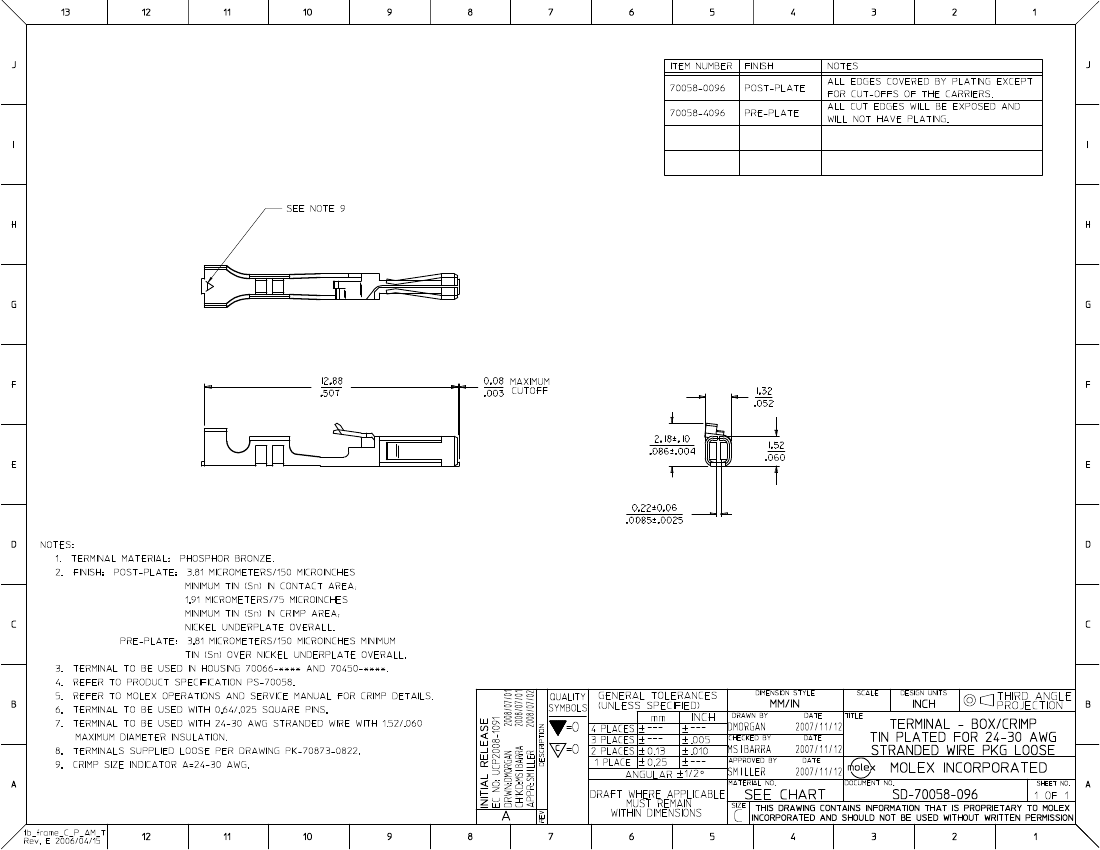

Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-70058 (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
70058
Yes
cgrid__sl_products
SL™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
Reel
150
3.81
75
1.910
Crimp or Compression
1.52mm (.060") max.
24, 26, 28, 30
N/A
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-70873-0822
PS-70058, PS-70400
SD-70058-096
TS-70058-002
Search Parts in this Series
70058Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool, UL 0638118800
Approved
Insertion Tool
0011020022
