503175-0510 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 503175-0510

503175-0510: Description1.50mm (.059") pitch clik-mate? wire-to-board pcb receptacle, single row, through hole; CategoryThe connector The connector; File Size280KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

503175-0510 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503175-0510	-	-	View	Buy Now

503175-0510 Overview

1.50mm (.059") pitch clik-mate? wire-to-board pcb receptacle, single row, through hole

503175-0510 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5031750210

Active

1.50mm (.059") Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row,

Through Hole, Right Angle, without Peg, 2 Circuits

Documents:

3D Model

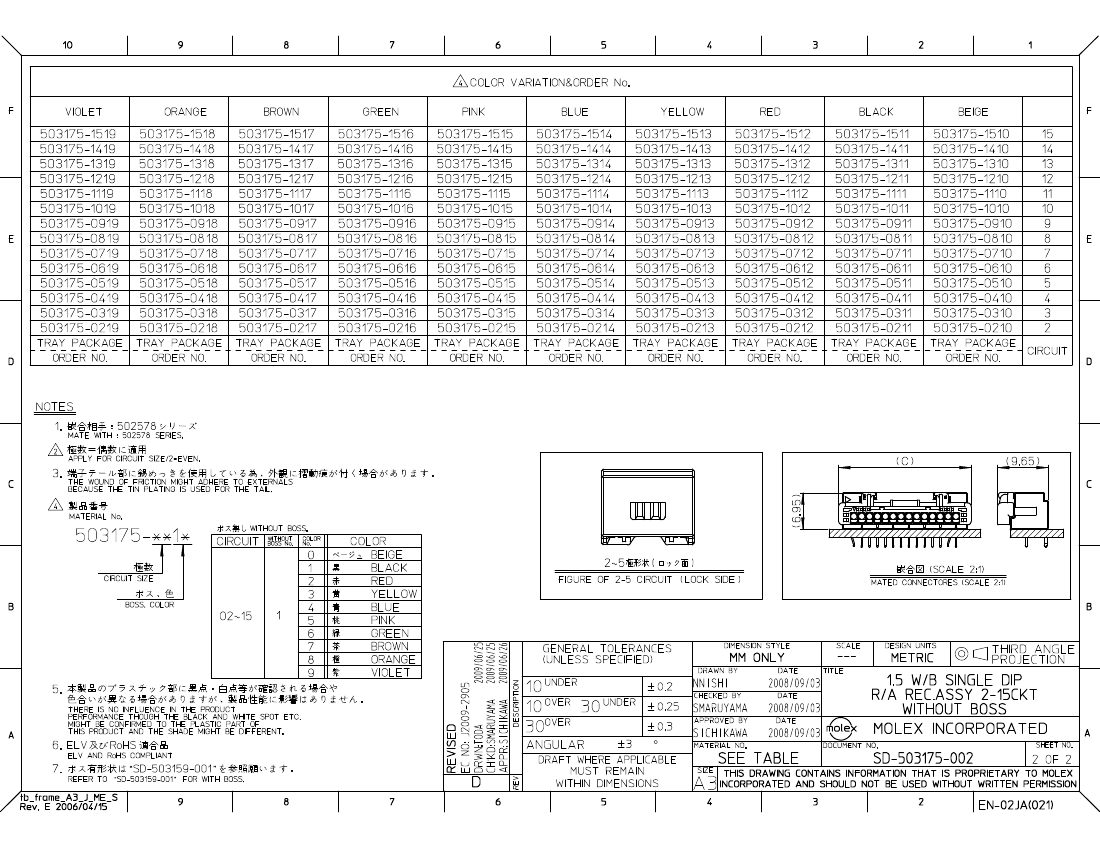

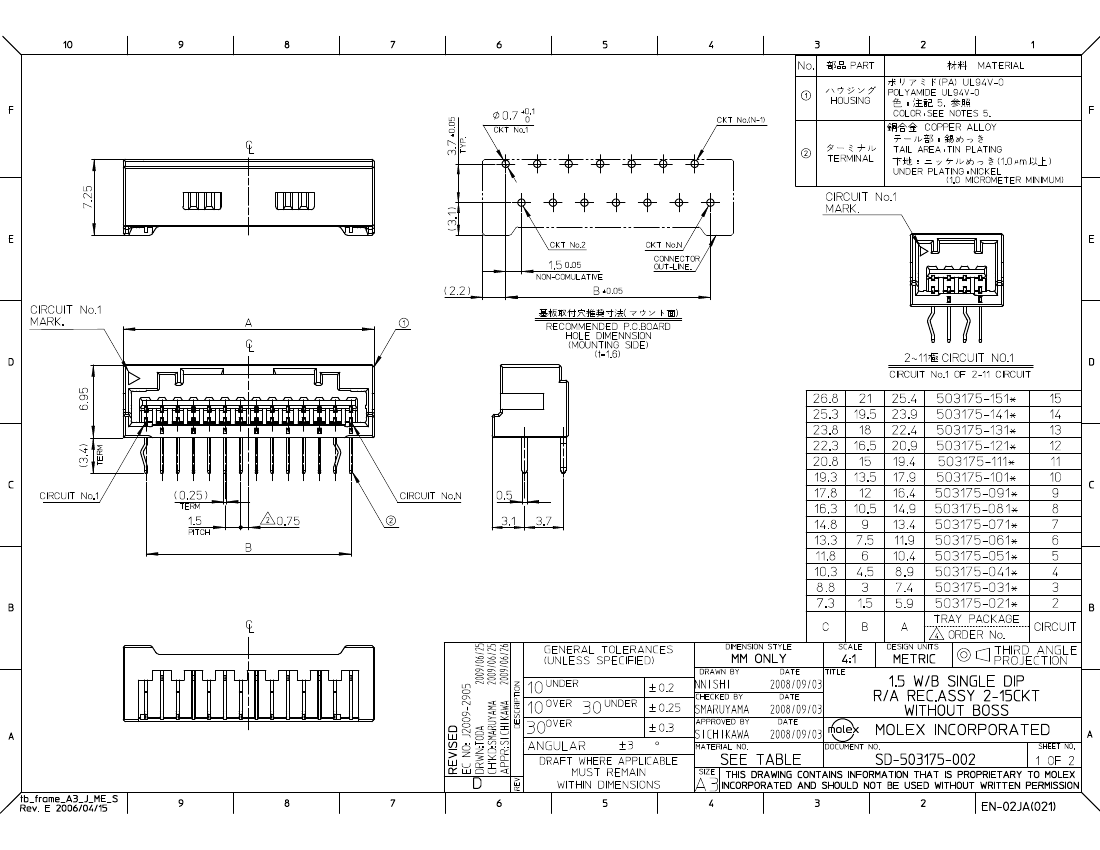

Drawing (PDF)

Product Specification PS-503175-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Receptacles

503175

Wire-to-Board

CLIK-Mate™

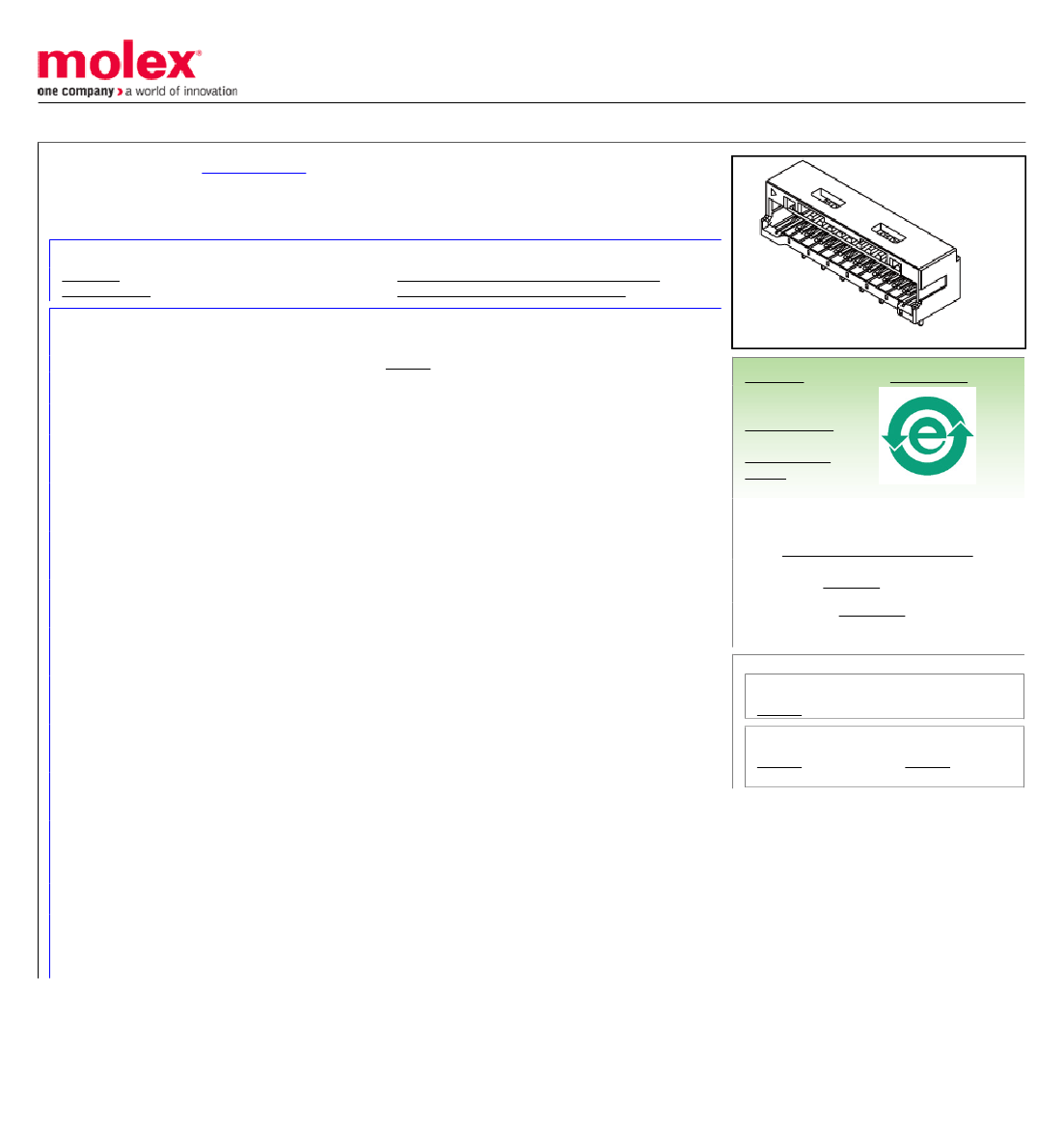

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Beige

Yes

Copper Alloy

Tin

Right Angle

Yes

0.062 In

1.60 mm

Tray

0.059 In

1.50 mm

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

503175Series

Mates With

502578 Crimp Housing . 502579 Crimp

Terminal

Electrical

Current - Maximum per Contact

Voltage - Maximum

100V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-503175-001, RPS-503175-001

SD-503175-002

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

503175-0510 Related Products

	503175-0510	5031750310	5031750410	5031750510	503175-0310	503175-0410
Description	1.50mm (.059") pitch clik-mate? wire-to-board pcb receptacle, single row, through hole	1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole	1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole	1.50mm (.059") pitch clik-mate? wire-to-board pcb receptacle, single row, through hole	1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole	1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex	-
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	-	compli	compli	compli	compli
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	DIP CONNECTOR	-	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	TIN	TIN
Contact completed and terminated	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	TIN	Tin (Sn)
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	-	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO
JESD-609 code	e3	-	e3	e3	e3	e3
MIL compliance	NO	-	NO	NO	NO	NO
Mixed contacts	NO	-	NO	NO	NO	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	-	2	2	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.5 mm	-	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	-	4	5	3	4
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0
