0009065089: Description3.96mm (.156") KK? idt trifurcon? contact, 8 circuits, tin (Sn), feed-through, 24 and 22 solid or fused Stranded, and 22 Stranded, black ID strip; CategoryThe connector The connector; File Size211KB，14 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0009065089 Overview

3.96mm (.156") KK? idt trifurcon? contact, 8 circuits, tin (Sn), feed-through, 24 and 22 solid or fused Stranded, and 22 Stranded, black ID strip

0009065089 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	7674
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0009065080

Active

3.96mm (.156") KK® IDT Trifurcon™ Contact, 8 Circuits, Tin (Sn), Feed-To, 24 and 22

Solid or Fused Stranded, and 22 Stranded, Black ID Strip

Documents:

3D Model

Drawing (PDF)

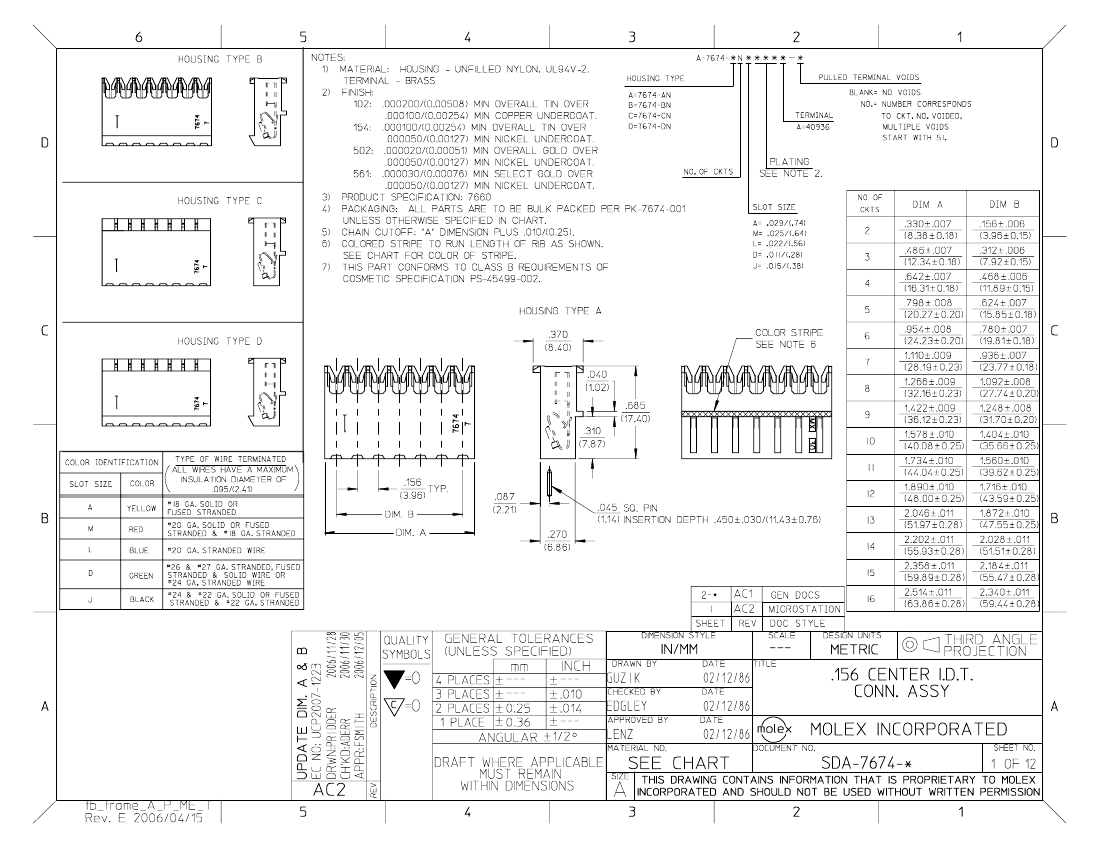

Product Specification PS-7660 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

IDT and Solder Connectors

7674

Trifurcon™ contact

Yes

KK®, Trifurcon™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

Physical

Circuits (Loaded)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

Female

Yes

Brass

Tin

Nylon

Bag

0.156 In

3.96 mm

200

0°C to +75°C

IDT or Pierce

22 Solid, 22 Stranded, 22 Stranded Topcoat, 24 Solid,

24 Stranded Topcoat

Search Parts in this Series

7674Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Tool for

0638133503

3.96mm (.156") Pitch

KK® IDT Crimp

Terminals

IDT - Manual Press 0011200314

For Ribbon Cable

IDT - Semi-automatic 0011200418

- Bench-Top

Terminator

IDT - Manual -

0011215196

Handtool

IDT Manual Handtool0621000400

Electrical

Voltage - Maximum

250V

Material Info

Old Part Number

A-7674-D08J102A

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-7674-001

PS-7660

SDA-7674-*

0009065089 Related Products
