The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

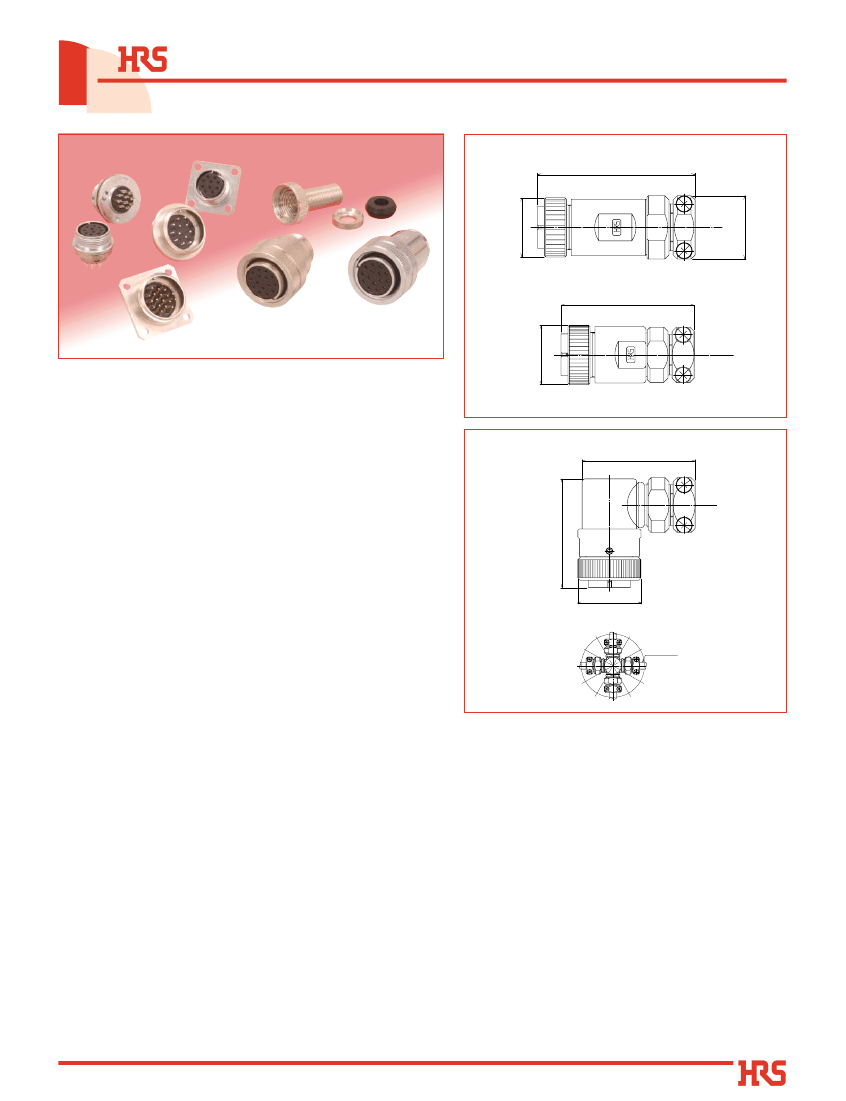

High performance waterproof circular connectors and cable
assemblies used in variety of applications requiring high
reliability, ease of assembly and small size.
Short backshell
s
Features
1. Variety of types
Plugs
: Available in 3 types - straight / long
back shell, straight / short back
shell, right angle back shell.
: Waterproof types with front, back or
flange panel mounting.
Plug _ Right angle
41
Ø21.5
Receptacles
40
All types with 2, 3, 4, 8, 10, 12, 15, 20, 31, 40, 55
contacts. Contacts in 2 plating types: gold or silver.
Ø23
360° Cable exit
Cable
360
°
2. Dust and water protection
When fully mated, the connector meet requirements of
IP67 (48 hours at depth of 1.8 m)
(Single-body waterproof receptacles also meet
requirements of IP67.)
3. Cable exit in 360° directions
The right-angle plugs permit exiting of the cable over a
360-degree range in any direction.
s
Applications
Base stations, factory automation equipment, robotic
equipment, exploration and construction equipment,
research instrumentation, variety of industrial and
measuring instruments. Any other applications requiring
high reliability waterproof circular connectors.
Ø23
2006.1
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications (RM15WT size products)
600V AC, 840V DC (2 pos.)
Voltage rating
500V AC, 700V DC (3, 4, 8 pos.)
350V AC, 490V DC (10 pos.)
Rating
Current rating
Operating temperature range (Note 1)
Storage temperature range (Note 2)
350V AC, 490V DC (12 pos.)
10A (2, 3, 4 pos.)
5A (8, 10, 12 pos.)
-25ç to +85ç
-25ç to +85ç
Characteristic
1. Contact resistance
2. Insulation resistance
Specification
2 m ø max.(2, 3, 4 pos.)
4 m ø max.(8, 10, 12 pos.)
1000 M ø min
1A DC
Conditions
3. Withstanding voltage No flashover or insulation breakdown.
4. Vibration
5. Shock
No electrical discontinuity for 10µs max.
No electrical discontinuity for 10µs max.
500V DC
1800V AC/one minute (2 pos.)
2000V AC/one minute (3 pos.)
1500V AC/one minute (4, 8 pos.)
1000V AC/one minute (10, 12 pos.)
Frequency: 10 to 55Hz, single amplitude of 0.75mm,for 3
hours in 3 axis.
Acceleration of 490m/s
2
, 11ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis.
2000 cycles
Temperature : -55ç
➝
Room temperature
➝
+85ç
➝
Room temperature
Time
: 30
➝
10 to 15
➝
30
➝
10 to 15 (Minutes)
5 cycles
96 hours at temperature 0f 40ç and humidity 0f 90% to 95%.
Complete dust protection. No water penetration
when submerged for 48 hours at the depth of 1.8 meter.
4 m ø max.(2, 3, 4 pos.)
6. Durability
(insertion/withdrawal) 8 m ø max.(8, 10, 12 pos.)
7. Temperature cycle
8. Humidity
Insulation resistance: 100 M ø min.
Insulation resistance: 100 M ø min. (Dray state)
9. Water / dust protection 0When mated with corresponding connector.
Note 1: Includes temperature rise caused by the current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating temperature range and humidity range
Note 2:
covers non-conducting condition of installed connectors in storage, shipment or during transportation.
sMaterials
Item
Body
Insulator
Contacts
Gasket
Note: Do not mix different contact plating.
Material
Zinc alloy, brass, pliable PVC
Diallyl phthalate, PBT
Brass, phosphor bronze, or copper alloy
SIR (black or red), or NBR (gray)
Finish
Chrome plated or nickel plated
Color: Black
Silver plated or gold plated
Color: black or red (SIR), color: gray (NBR)
Remarks
-------------------
UL94V-0
-------------------
-------------------
sOrdering
Information
*
RM 15 W T P*
*
- 2 P (
* *
)
1
2
1
3
4
5
6
7
1
Series name : RM-W
2
Shell size
3
Lock type
T : Screw Lock
5
Number of Contacts
6
Contact type
P : Male contact
S : Female contact
4
Connector type
P : Plug
R : Receptacle
7
Plating
(71) : Silver plated
(72) : Gold plated
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

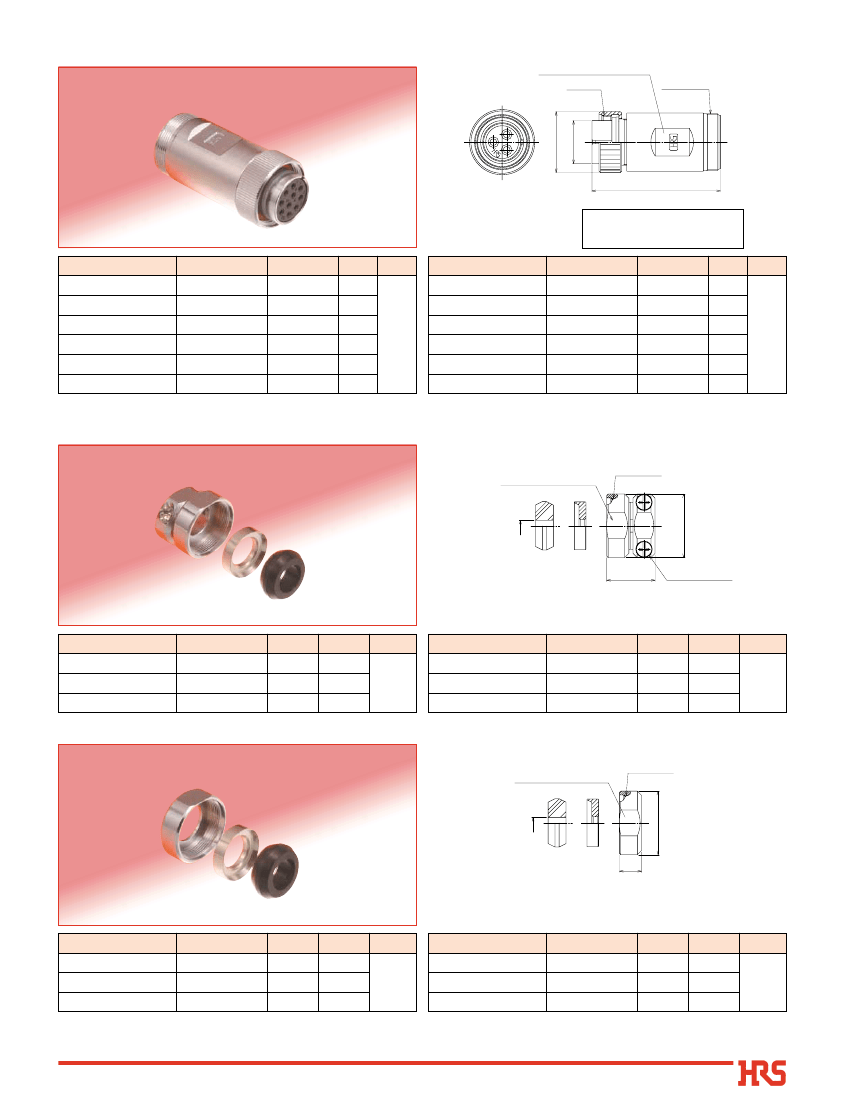

sPlugs
- straight, long back shell
RM15WTPZA-10S(71)
Wrench opening dimension
of 18 mm
M19∞1
M20∞0.75
Ø21.5
Ø15.2
2
13
45.3
(shown one example)
[Specification number] (**), -**
(71) : Silver plated contacts
(72) : Gold plated contacts
Part Number
RM15WTPZA-2P(ππ)
RM15WTPZA-3P( 72 )
RM15WTPZA-4P(ππ)
RM15WTPZA-8P(ππ)
RM15WTPZA-10P(ππ)
RM15WTPZA-12P(ππ)
CL No.
109-1734-5-ππ
109-1602-4- 72
109-1735-8-ππ
109-1736-0-ππ
109-1737-3-ππ
109-1738-6-ππ
Number of Contacts Weight RoHS
2
3
4
8
10
12
43g
45g
44g
43g
44g
44g
YES
Part Number
RM15WTPZA-2S(ππ)
RM15WTPZA-3S(ππ)
RM15WTPZA-4S(ππ)
RM15WTPZA-8S(ππ)
RM15WTPZA-10S(ππ)
RM15WTPZA-12S(ππ)
CL No.
109-1729-5-ππ
109-1601-1-ππ
109-1730-4-ππ
109-1731-7-ππ
109-1732-0-ππ
109-1733-2-ππ
Number of Contacts Weight RoHS
2
3
4
8
10
12
45g
47g
45g
45g
45g
45g
YES
sApplicable
Strain reliefs
q
External cable clamp + internal, self-tightening
JR16WCC-10(72)
Wrench opening dimension
of 21 mm
M20∞0.75
A
17.5
Drive screw(2)
(shown one example)
Part Number
JR16WCC-4(72)
JR16WCC-6(72)
JR16WCC-8(72)
CL No.
114-2052-6-72
114-2053-9-72
114-2054-1-72
A
4
6
8
Weight
17.5g
17.5g
17.5g
YES
RoHS
Part Number
JR16WCC-10(72)
JR16WCC-11(72)
JR16WCC-12(72)
CL No.
114-2055-4-72
114-2154-6-72
114-2056-7-72
A
10
11
12
Ø23
Weight
17.5g
17.5g
17.5g
RoHS
YES
q
Internal, self tightening
JR16WCCA-10(72)
Wrench opening dimension
of 21 mm
M20∞0.75
8
(shown one example)
Part Number
JR16WCCA-4(72)
JR16WCCA-6(72)
JR16WCCA-8(72)
CL No.
114-2076-4-72
114-2077-7-72
114-2078-0-72
A
4
6
8
Weight
16g
16g
16g
YES
RoHS
Part Number
JR16WCCA-10(72)
JR16WCCA-11(72)
JR16WCCA-12(72)
CL No.
114-2079-2-72
114-2155-9-72
114-2080-1-72
A
10
11
12
Weight
16g
16g
16g
YES
RoHS
Notes : 1. Cable jacket diameter:Use A ± 0.2mm
2. When using the self-tightening strain relief verify the cable pull force requirements.
Ø23
A
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

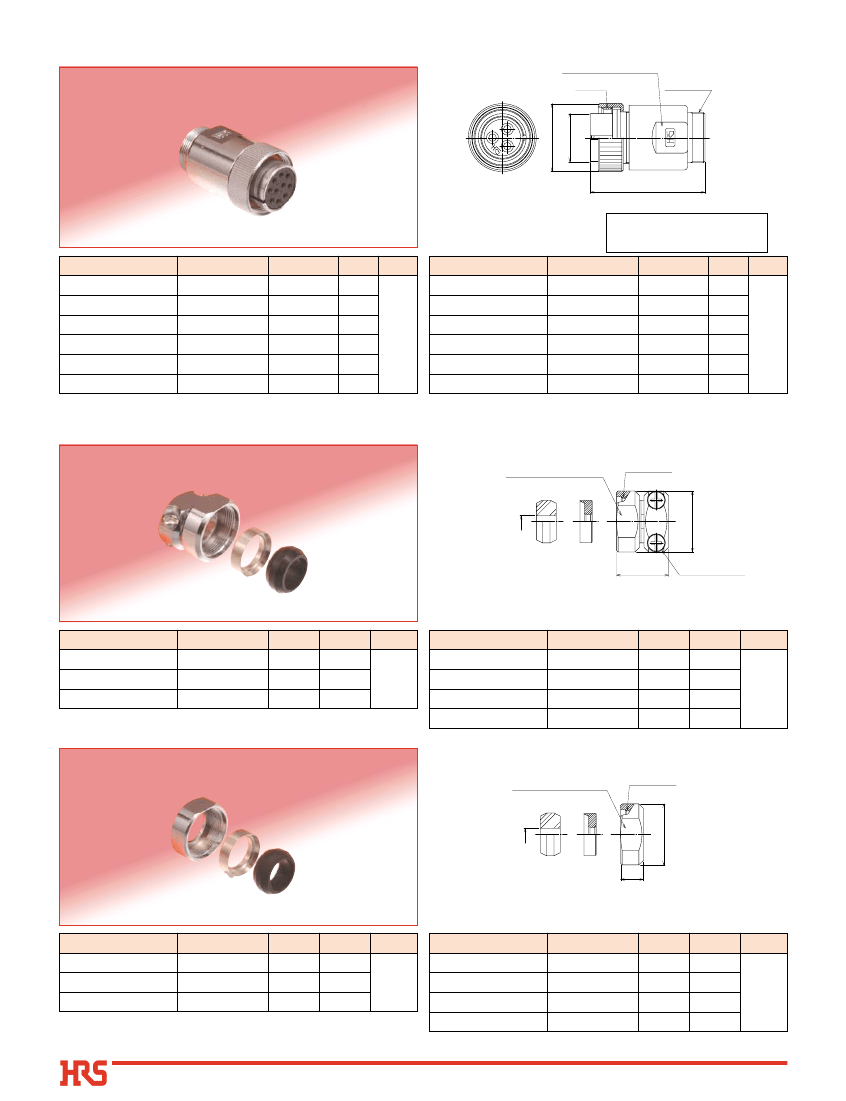

sPlugs
- Straight, short back shell
RM15WTPZ-10S
Wrench opening dimension
of 18 mm
M19∞1
M16∞0.75
Ø21.5
Ø15.2
2
13
36.3
(shown one example)
[Specification number] (**), -**
(71) : Silver plated contacts
(72) : Gold plated contacts
Part Number
RM15WTPZ-2P(ππ)
RM15WTPZ-3P(ππ)
RM15WTPZ-4P(ππ)
RM15WTPZ-8P(ππ)
RM15WTPZ-10P(ππ)
RM15WTPZ-12P(ππ)
CL No.
109-1616-9-ππ
109-1622-1-ππ
109-1617-1-ππ
109-1618-4-ππ
109-1619-7-ππ
109-1620-6-ππ
Number of Contacts
Weight RoHS
Part Number
RM15WTPZ-2S(ππ)
RM15WTPZ-3S(ππ)
CL No.
109-1611-5-ππ
109-1621-9-ππ
109-1612-8-ππ
109-1613-0-ππ
109-1614-3-ππ
109-1615-6-ππ
Number of Contacts Weight RoHS
2
3
4
8
10
12
34g
36g
34g
34g
34g
34g
YES
2
3
4
8
10
12
32g
34g
33g
32g
33g
33g
YES
RM15WTPZ-4S(ππ)
RM15WTPZ-8S(ππ)
RM15WTPZ-10S(ππ)
RM15WTPZ-12S(ππ)
sApplicable
Strain reliefs
q
External cable clamp + internal, self-tightening
JR13WCC-10(72)
Wrench opening dimension
of 17 mm
M16∞0.75
17
Drive screw(2)
(shown one example)
Part Number
JR13WCC-4(72)
JR13WCC-5(72)
JR13WCC-6(72)
CL No.
114-2045-0-72
114-2046-3-72
114-2047-6-72
A
4
5
6
Weight
17g
17g
17g
YES
RoHS
Part Number
JR13WCC-7(72)
JR13WCC-8(72)
JR13WCC-9(72)
JR13WCC-10(72)
CL No.
114-2048-9-72
114-2049-1-72
114-2050-0-72
114-2051-3-72
A
7
8
9
10
Weight
17g
17g
17g
17g
YES
RoHS
q
Internal, self tightening
JR13WCCA-10(72)
Wrench opening dimension
of 17 mm
M16∞0.75
7.5
(shown one example)
Part Number
JR13WCCA-4(72)
JR13WCCA-5(72)
JR13WCCA-6(72)
CL No.
114-2069-9-72
114-2070-8-72
114-2071-0-72
A
4
5
6
Weight
12g
12g
12g
YES
RoHS
Part Number
JR13WCCA-7(72)
JR13WCCA-8(72)
JR13WCCA-9(72)
CL No.
114-2072-3-72
114-2073-6-72
114-2074-9-72
114-2075-1-72
A
7
8
9
10
Weight
12g
12g
12g
12g
YES
RoHS
JR13WCCA-10(72)
Notes : 1. Cable jacket diameter: Use A ± 0.2mm
2. When using the self-tightening strain relief verify the cable pull force requirements.
4
Ø20
A
Ø20
A
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

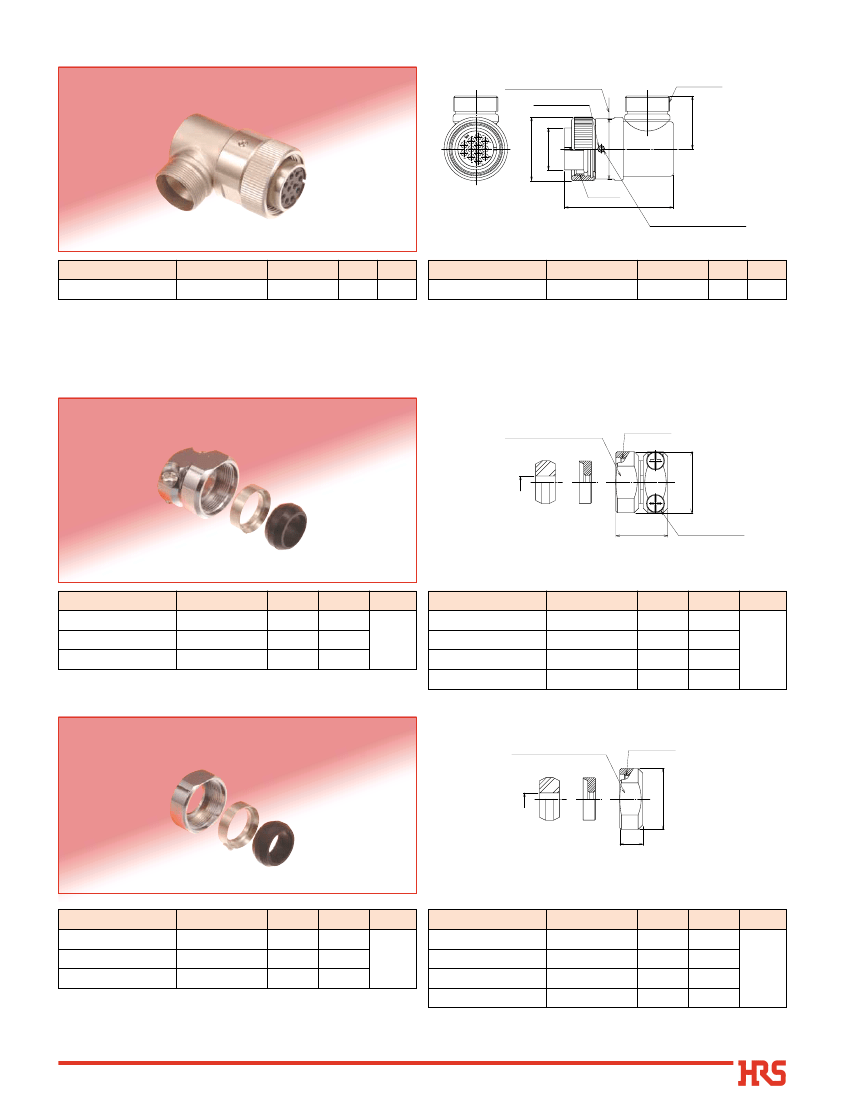

sPlugs
- right angle
RM15WTLP-10S
Wrench opening dimension
of 21.8 mm
Set screw(2)
19.15
Ø15.2
Ø23
M19∞1
39.5
Hexagonal hole
opposite side
1.27 mm
(1.27HEX)
M16∞0.75
(shown one example)
Part Number
RM15WTLP-12P(71)
CL No.
109-0997-9-71
Number of Contacts Weight RoHS
12
62.3g
YES
Part Number
RM15WTLP-10S(71)
CL No.
109-0999-4-71
Number of Contacts Weight RoHS
10
63.1g
YES
Notes : 1 Gasket material: NBR, body plating: nickel
2 Recommended set screw tightening torque: 0.2 to 0.3 N•m.
HRS recommended tool: PB205/1.27(CL 150-0066-3)
sApplicable
Strain reliefs
q
External cable clamp + internal, self-tightening
JR13WCC-10(72)
Wrench opening dimension
of 17 mm
M16∞0.75
17
Drive screw(2)
(shown one example)
Part Number
JR13WCC-4(72)
JR13WCC-5(72)
JR13WCC-6(72)
CL No.
114-2045-0-72
114-2046-3-72
114-2047-6-72
A
4
5
6
Weight
17g
17g
17g
YES
RoHS
Part Number
JR13WCC-7(72)
JR13WCC-8(72)
JR13WCC-9(72)
JR13WCC-10(72)
CL No.
114-2048-9-72
114-2049-1-72
114-2050-0-72
114-2051-3-72
A
7
8
9
10
Weight
17g
17g
17g
17g
YES
RoHS
q
Internal, self tightening
JR13WCCA-10(72)
Wrench opening dimension
of 17 mm
M16∞0.75
7.5
(shown one example)
Part Number
JR13WCCA-4(72)
JR13WCCA-5(72)
JR13WCCA-6(72)
CL No.
114-2069-9-72
114-2070-8-72
114-2071-0-72
A
4
5
6
Weight
12g
12g
12g
YES
RoHS
Part Number
JR13WCCA-7(72)
JR13WCCA-8(72)
JR13WCCA-9(72)
JR13WCCA-10(72)
Notes : 1 Cable jacket diameter: Use A ± 0.2mm
2 When using the self-tightening strain relief verify the cable pull force requirements.
_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
