Part Number:
Status:
Overview:
Description:
0678005021
Active
serial_ata_products
1.27mm (.050") Pitch Serial ATA High Speed Header, Vertical, Surface Mount, with
Locking Latch, 7 Circuits, Gold (Au) Flash, for 2.40mm (.094") PCB, with PCB Locator
Pegs, Lead-free
Documents:
3D Model

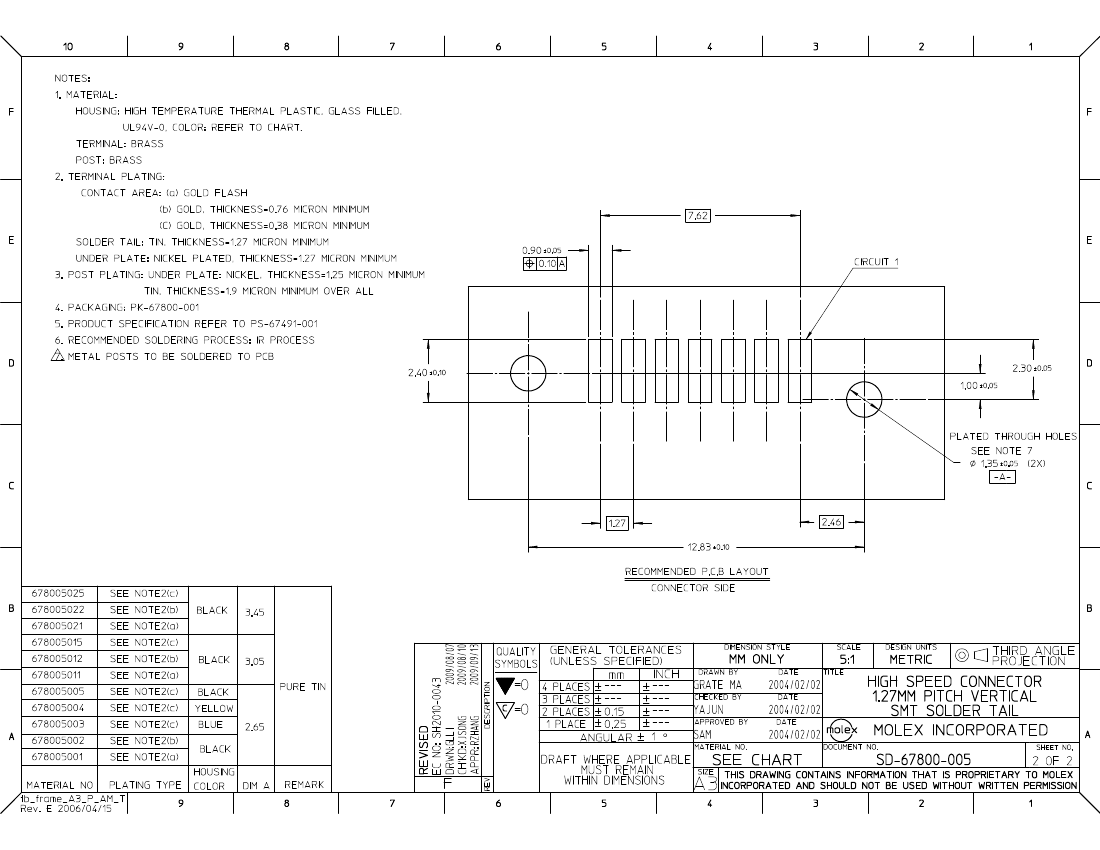

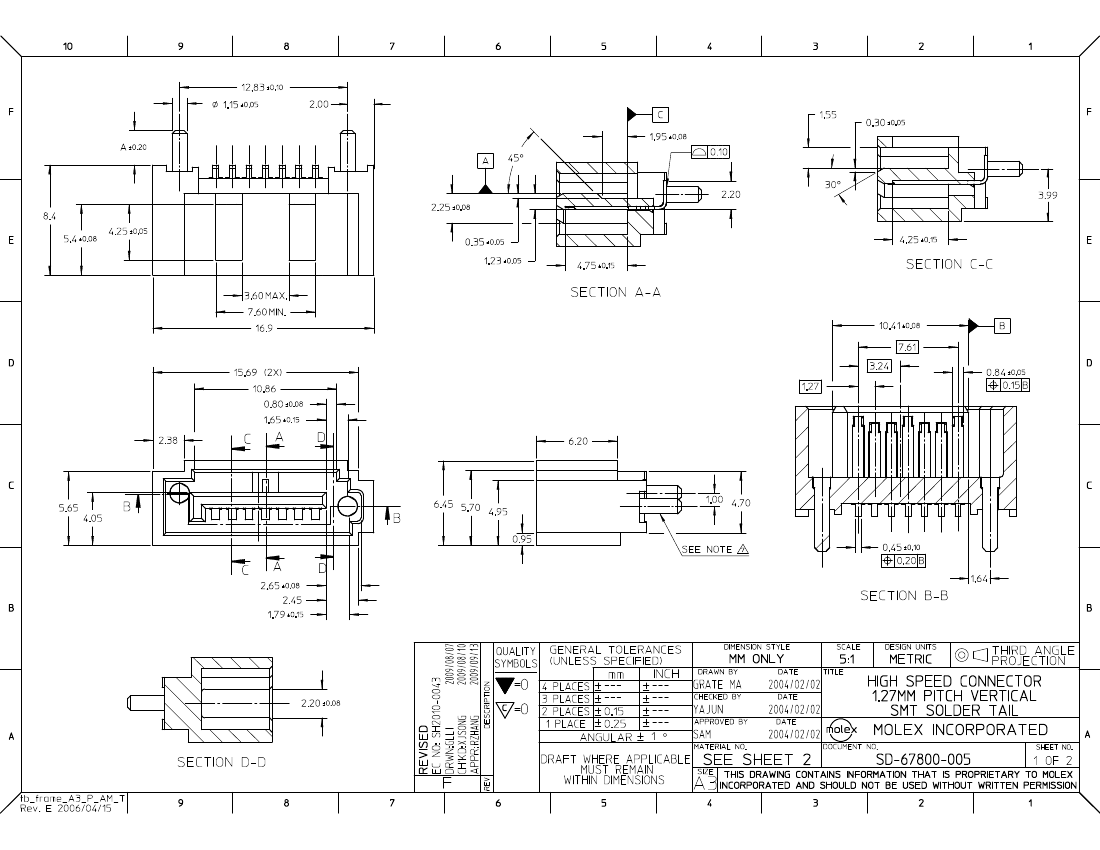

Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR 19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
67800
Board-to-Board, Wire-to-Board
Staggered Solder Pin|Metal Post Length 3.45mm (.136")
serial_ata_products
Serial ATA
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
No
7
7
Black
50
Yes
94V-0
No
No
Yes
Yes
Brass
Gold
Tin
High Temperature Thermoplastic
1
Vertical
Yes
Yes
Tray
0.050 In
1.27 mm
0.050 In
1.27 mm
2
0.05
75
1.9
Yes
Yes
Fully
No
Search Parts in this Series
67800Series
Temperature Range - Operating
Termination Interface: Style
-35°C to +85°C
Surface Mount
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
15V DC
Solder Process Data
Lead-free Process Capability
Reflow Capable (SMT only)
Material Info
Reference - Drawing Numbers
Packaging Specification
Sales Drawing
PK-67800-001
SD-67800-005
