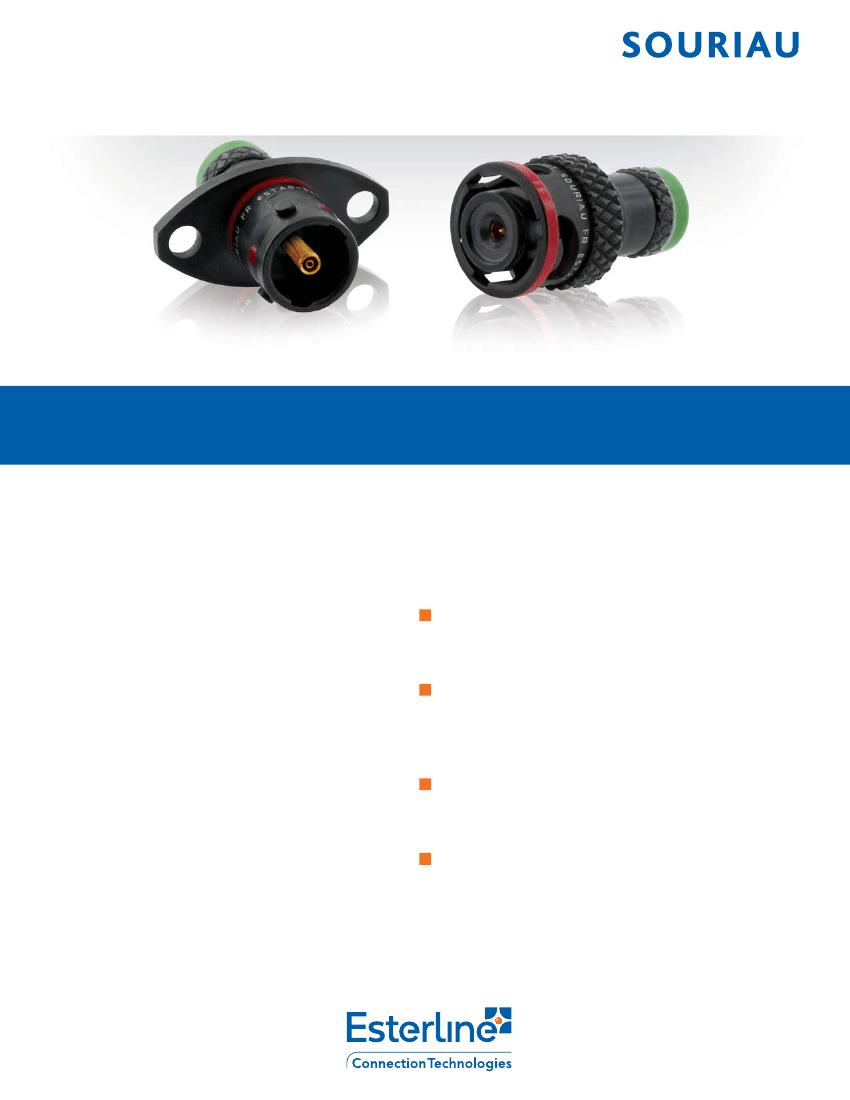

Reliable coax contact for high frequency data transmission. Excellent
performance in harsh environment.
Contact versatility
Coax contact available for AWG 16, 12 and 8.
Very high performance
Up to 18 GHz DC under vibration with the
proper #8 coax contact.
Easy maintenance
Removable contacts.
Smart design
Available in shell size 02!
Consult us for any other size up to size 24.

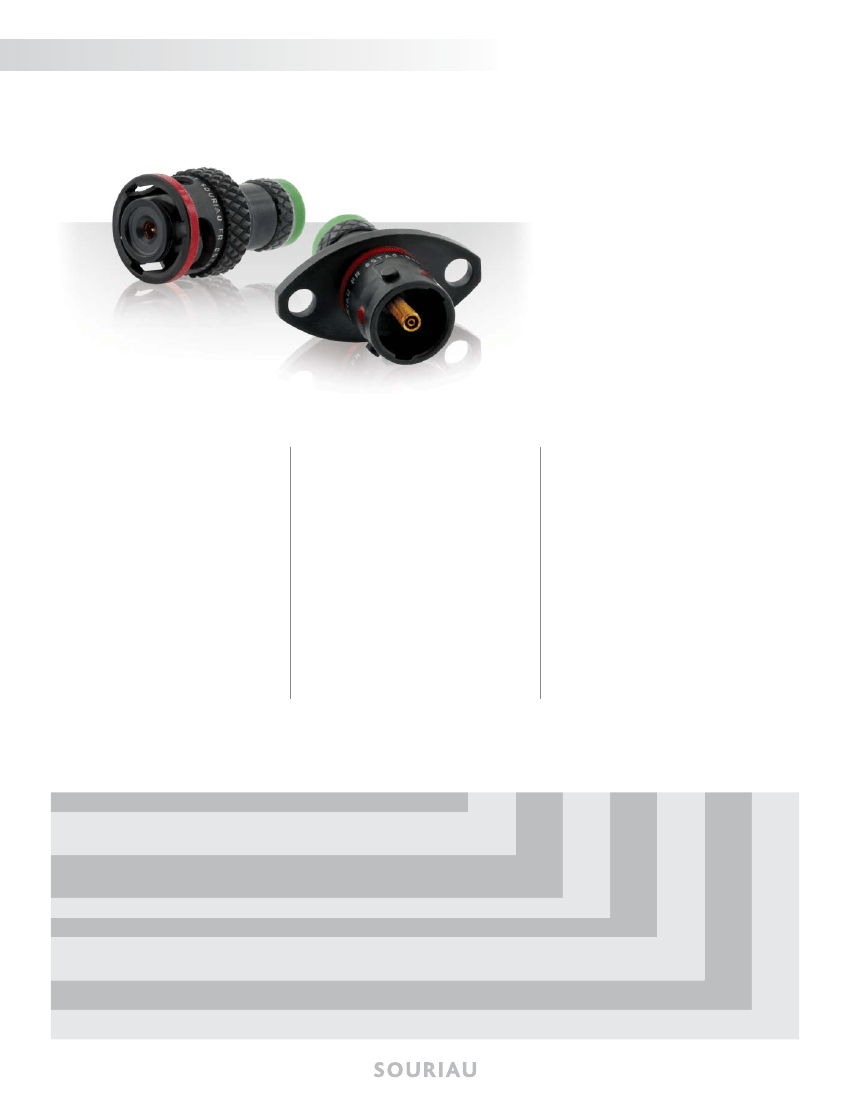

8STA Series
|
Coax Contacts
Description
• High vibration resistance
• Coax contact available for AWG 16, 12 and 8
• Removable contacts
• Available in shell size 02
Technical features
Mechanical
• Shell:
Aluminium alloy
• Shell plating:
Conductive black zinc
Nickel
• Grommet & seal:
Liquid silicone rubber
• Contact:
Copper alloy
• Contact plating:
Gold
• Endurance:
500 mating cycles
• Shock:
300g for 3ms and EIA-364-27
• Vibration:
147m/s², 10 to 2000Hz
• Contact retention:
Size 16:
100 N
Size 12:
100 N
Size 8:
110 N
Environmental
• Operating temperature:
-55°C to +175°C
• Sealing mated connectors:
IP67 (1 metre for 30 min minimum)
• Salt spray:
Aluminum Nickel: 48 hours
Aluminum conductive Black Zinc: 48 hours
Electrical
• Grounding:
Contact grounded with shell
• Contact definition:
Coax compliant with M39029/76-424
• #16 coax contact accomodated cable:
M17/119-RG174
M17/113-RG316
M17/094-RG179
For other contact size or cable please consult us.
Ordering information
Basic series
Shell type
0:
Oval flange receptacle
6:
Plug
Material & Plating
None:
Aluminum Black zinc
F:
Aluminum Nickel
Shell size: 02,
consult us for other sizes
Contact layout: 01,
consult us for other layouts
Type of contact
P:
Pin, for oval flage receptacle only
S:
Socket, for plug only
Orientation
N:
Red /
A:
Yellow /
B:
Blue /
C:
Orange /
D:
Green
Mandatory specification
801:
Delivered with grounded coax contact
8STA
0
02
01
P
N
801
2
8STA Series
|
Coax Contacts

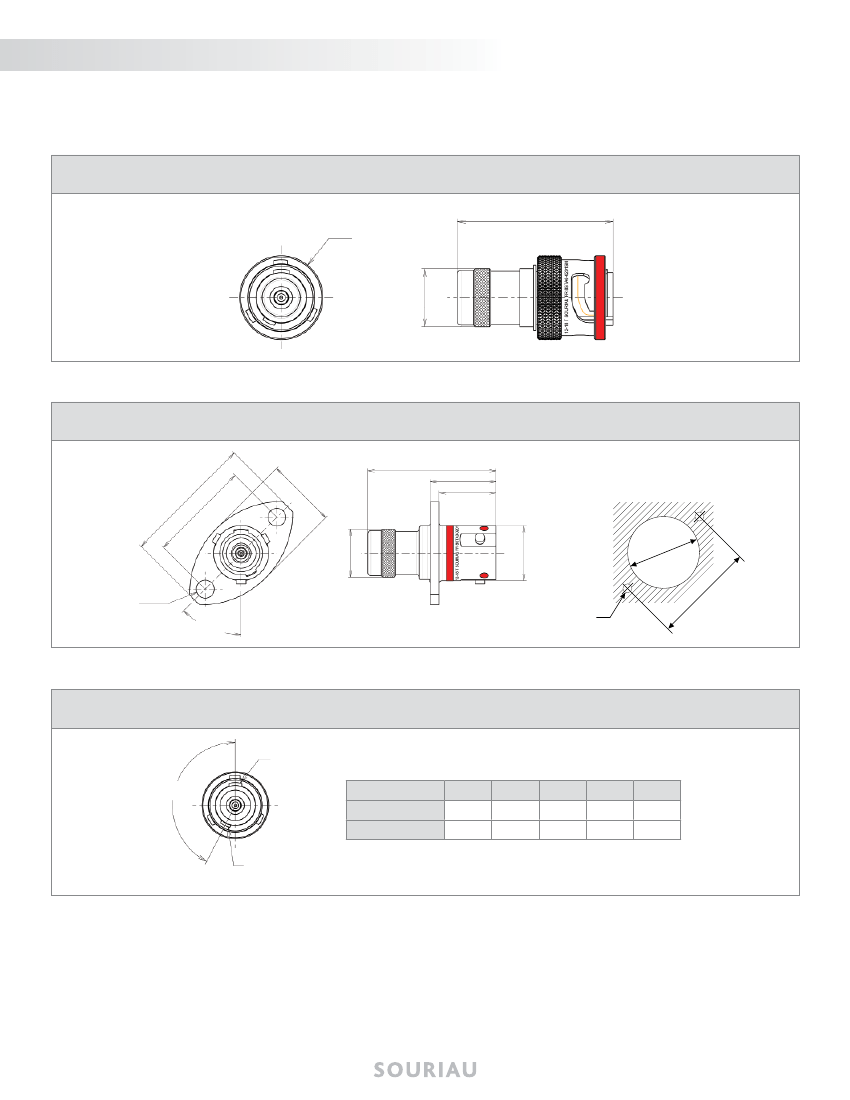

Dimensions
Plug
19.6/0.77’’
Ø10.6/0.42’’
All information in this document presents only general particulars and shall not form part of any contract. All rights reserved to SOURIAU for changes without prior notification or public announcement. Any duplication is prohibited, unless approved in writing.
Oval flange receptacle
19.6/0.77’’
10.0/0.39’’
8.6/0.34’’
’
2’
.4
/0
.7
10
Ø7.2/0.28’’
15
2/
.3 0.8
/0
’
.6 ’
’’
Panel cut out
20
.
Ø7.2/0.28’’
8.3/0.33’’
Ø
’’
.37
3/0
9.
/0
.
6’
’
Ø3.1/0.12’’
45°
15
Ø2.7/0.11’’
.3
Orientations
Master key
A°
Key positions
Angle A°
Color band
Secondary key
View from front face of plug.
N
153°
Red
A
51°
Yellow
B
102°
Blue
C
204°
Orange
D
255°
Green
Note: All dimensions are in millimeters and inches (mm/inch). For other shell sizes, please consult us.
