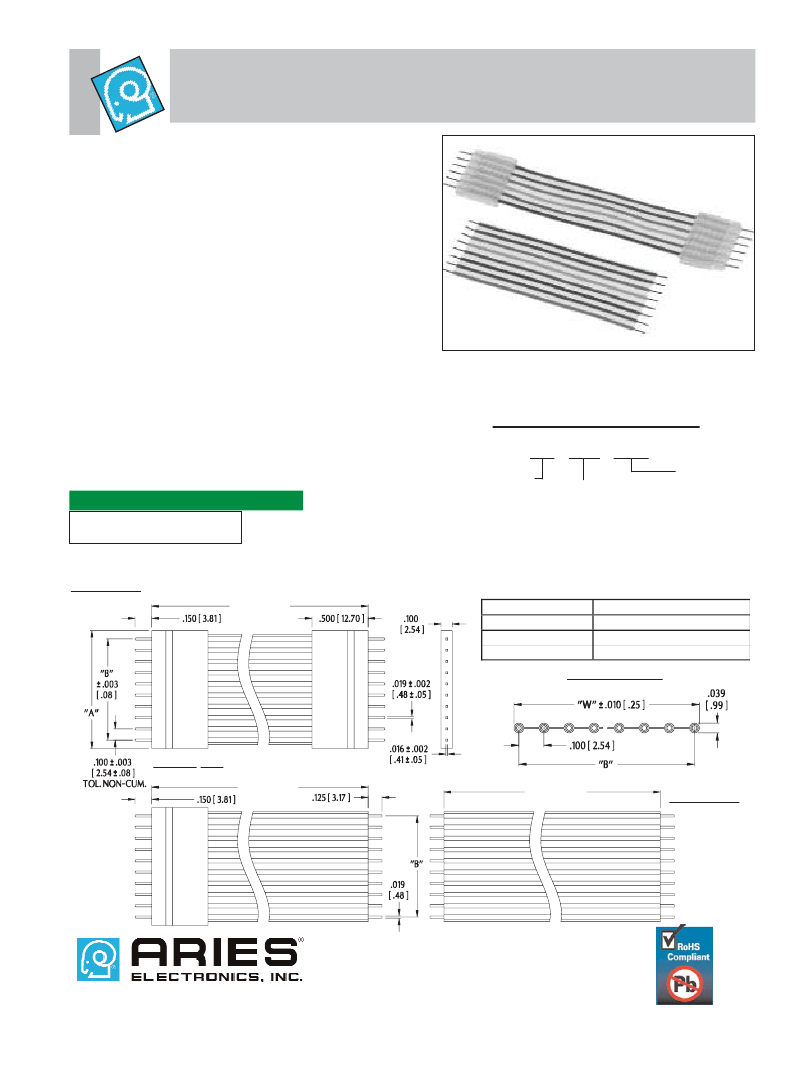

Series 152, 156 & 157
In-Line Jumpers on .100 [2.54] Centers
FEATURES:
• End connectors have Gold plated, solid Brass pins on .100
[2.54] centers.
• Available single-ended (Series 156), double-ended (Series
157), or bare-ended (Series 152).
• Reliable, electronically tested solder connections.
• 10-color cable allows for easy identification and tracing.
SPECIFICATIONS:
• Housing is natural UL 94-HB Nylon 6/6.
• Header pins are Brass, 1/2 hard.
• Pin plating is 10
μ
[.25μm] min. Gold per MIL-G-45204 over
50μ [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
• Cable insulation is UL Style 1061 Polyvinyl Chloride (PVC),
semi-rigid.
• Laminate is clear PVC, self-extinguishing.
• Conductors are 26 AWG, 7/34 strand, Tinned Copper per
ASTM B 33. Series 152 conductors are not pre-tinned.
Consult factory for pre-tinned, bare-ended jumpers.
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
• Cable voltage rating=300 Volts.
• Cable temperature rating=176°F [80°C].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.033 ± .002 [.86 ± .05].
Note: Aries specializes in custom design and production. In addition to the stan-
dard products shown on this page, special materials, platings, sizes, and configu-
rations can be furnished, depending on quantities. Aries reserves the right to
change product specifications without notice.
ORDERING INFORMATION
XX-XXX-XXX
No. of conductors
(4 thru 22)
Length “L” in
inches
(see table)
Series:
156=single-ended*
157=double-ended*
152=bare-ended
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified “A”=(NO. OF CONDUCTORS X .100 [2.54]) + .040 [1.02]
* Not available
“B”=(NO. OF CONDUCTORS - 1) X .100 [2.54]
in RoHS
“W”=(NO. OF CONDUCTORS X .100 [2.54]) - .020 [.51]
Consult factory for sizes not shown
STYLE 157
“L”
± .125
No. of Conductors
4 thru 8
9 and 10
11 thru 22
Minimum Insulation Length
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
CABLE DETAIL
STYLE 156
“L”
± .125
“L” ± .125
STYLE 152
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
abc
11014
REV. J
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
