BR05BA2291EXA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BR05BA2291EXA

BR05BA2291EXA: DescriptionArray/Network Resistor, Bussed, Metal Film, 0.8W, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2640, BGA; CategoryPassive components The resistor; File Size43KB，1 Pages; ManufacturerThin Film Technology Corp (TFT)

Download Datasheet Parametric View All

BR05BA2291EXA Overview

Array/Network Resistor, Bussed, Metal Film, 0.8W, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 2640, BGA

BR05BA2291EXA Parametric

Parameter Name	Attribute value
Objectid	1990622440
package instruction	BGA
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
The first element resistor	2290 Ω
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	15
Number of functions	1
Number of terminals	16
Maximum operating temperature	175 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	0.8 W
Rated temperature	125 °C
Resistor type	ARRAY/NETWORK RESISTOR
size code	2640
surface mount	YES
technology	METAL FILM
Temperature Coefficient	25 ppm/°C
Temperature coefficient tracking	1 ppm/°C
Terminal shape	BALL
Tolerance	0.1%

Preview

Download Datasheet

View All

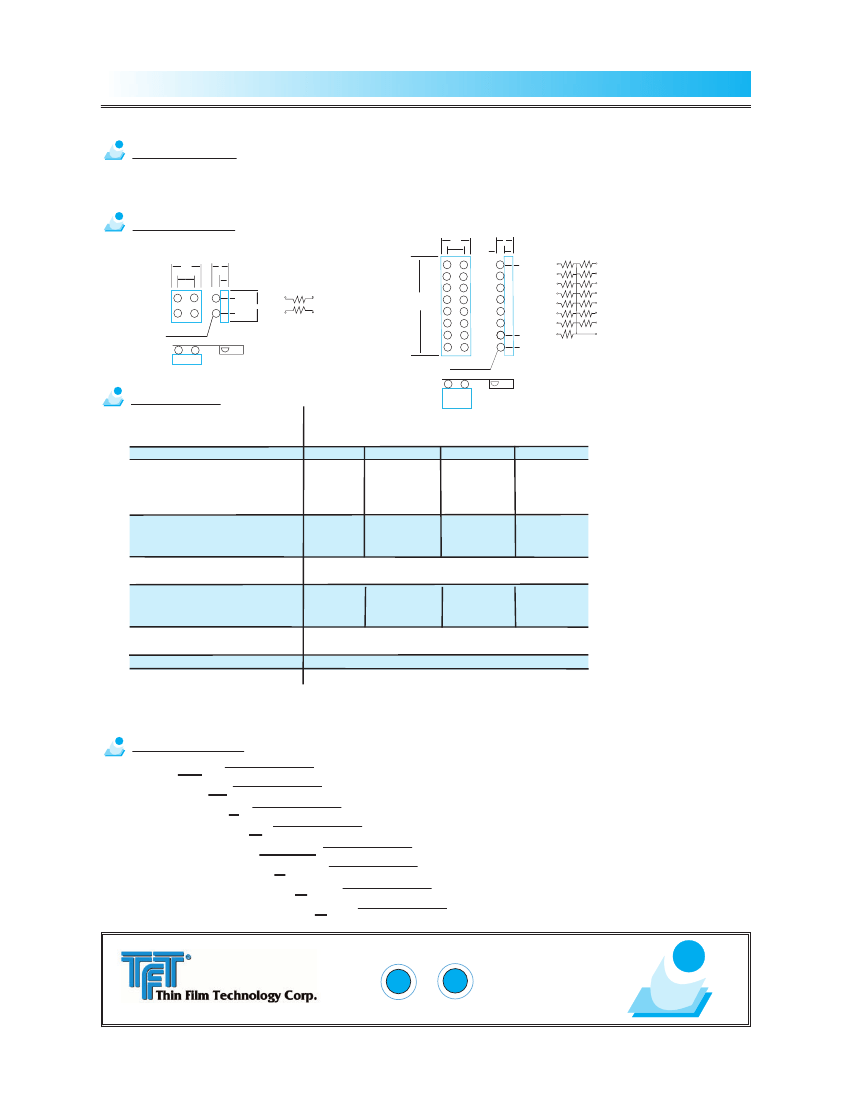

Precision Resistor Network

BR Series

Specification subject to change - Please call factory.

1.0 Description

The BR series resistor networks are precision-class metal film components featuring tight resistance tolerance

and low values of temperature coefficient of resistance (TCR). This resistor network package provides both

excellent resistance ratio and TCR tracking with BGA terminations.

2.0 Mechanical

3.20

±0.20

2.54

0.65

MAX

-Please refer to page 43 for land pattern

BR04 Series

5.30

0.80

MAX

Pitch

1.27

2.5

±0.20

10.16

±0.20

0.300 (12mil.) Dia.

63 / 37 Sn / Pb Sphere

0.076

dimension mm

0.711 (28mil.) Dia.

63 / 37 Sn / Pb Sphere

0.076

3.0 Electrical

BR04 series: 10K

BR05 series: 11K

Resistance range (ohms):

10 - <20

20 - <100

100 - <5K

Absolute resistance tolerance (%): ±0.05 (A)

±0.02 (Q)

±0.01 (T)

±0.10 (B

±0.05 (A)

±0.02 (Q)

±0.10 (B)

±0.05 (A)

±0.10 (B)

Absolute TCR (ppm/°C)

±25 (E)

±5 (M)

±10 (Y)

±25 (E)

Resistance ratio tolerance (%)

±0.02 (Q)

±0.05 (A)

TCR tracking (ppm/°C)

±5 (M)

±2 (R)

±1 (X)

(refer to note 1 & 2)

±5 (M)

±2 (R)

±5 (M)

Package power rating:

BR04 series: 0.1 watt @125°C

(refer to derating curve)

BR05 series: 0.8 watt @125°C

Operating temperature:

-40°C to +175 °C

Storage temperature:

-55°C to +125 °C

Maximum resistance (ohms):

Note 1:

Ratio values greater than 50:1 only available in ±5 ppm/°C TCR tracking tolerance

Note 2:

±1ppm/°C TCR Tracking only available for identical resistance values.

4.0 Part Number

****/****

Product designator

Form factor

Absolute resistance tolerance

Resistance ratio tolerance

Resistance value

Absolute TCR tolerance

TCR tracking tolerance

Packaging (1,000 on tape and reel)

TERE

ISO9001 ISO14001

303

561

Manufacturer(s) of the products described on this page are indicated by their respective logos.

6.57

±0.20

1.65

MAX

BR05 Series

R8 H

R7 G

R6 F

R5 E

R4 D

R3 C

Pitch

1.27 x 7

R10

R11

R12

R13

R14

R15

R2 B

R1 A

5K -Max

±0.01 (T)

±0.02 (Q)

±0.05 (A)

±0.10 (B)

±10 (Y)

±25 (E)

±2 (R)

±5 (M)
