1N4109D2A

Description
silicon zener diode
File Size188KB,3 Pages
ManufacturerAll Sensors
Download Datasheet Compare View All

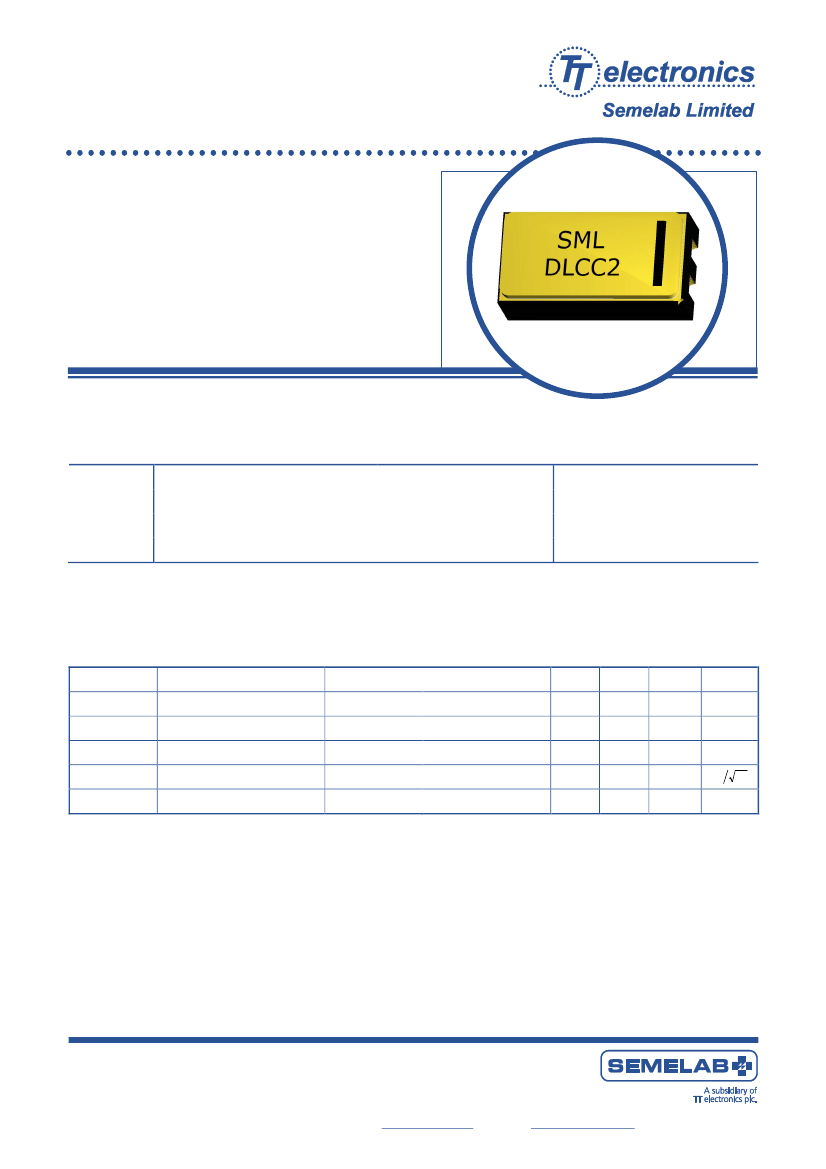

1N4109D2A Overview

silicon zener diode

SILICON
ZENER DIODE
1N4109D2A / 1N4109D2B
VZ = 15V
Low Noise
Standard
±5%
Zener Voltage Tolerance
Hermetic Ceramic Package Designed as a Drop-In Replacement
for “D-5A”/”B-MELF” Package.
Space Level and High-Reliability Screening Options Available
Low Leakage
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise stated)
PT
TJ
TSTG
TSP
TA = 25°C
Total Power Dissipation at
Junction Temperature Range
Storage Temperature Range
Maximum Soldering Pad Temperature for 20s
250mW
-65 to +200°C
-65 to +200°C
300°C
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise stated)
Symbols
VZ
ZZT
IR
ND
IZM
Parameters
Zener Voltage
Maximum Zener Impedance
Reverse Leakage Current
Noise Density
Zener Current
Test Conditions
IZT = 250µA
IZT = 250µA
VR = 11.4V
IZT = 250µA
Min.
14.25
Typ.
15
Max.
15.75
100
0.05
40
16.3
Units
V
µA
µ
V
Hz
mA
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 8856
Website:
http://www.semelab-tt.com
Issue 1

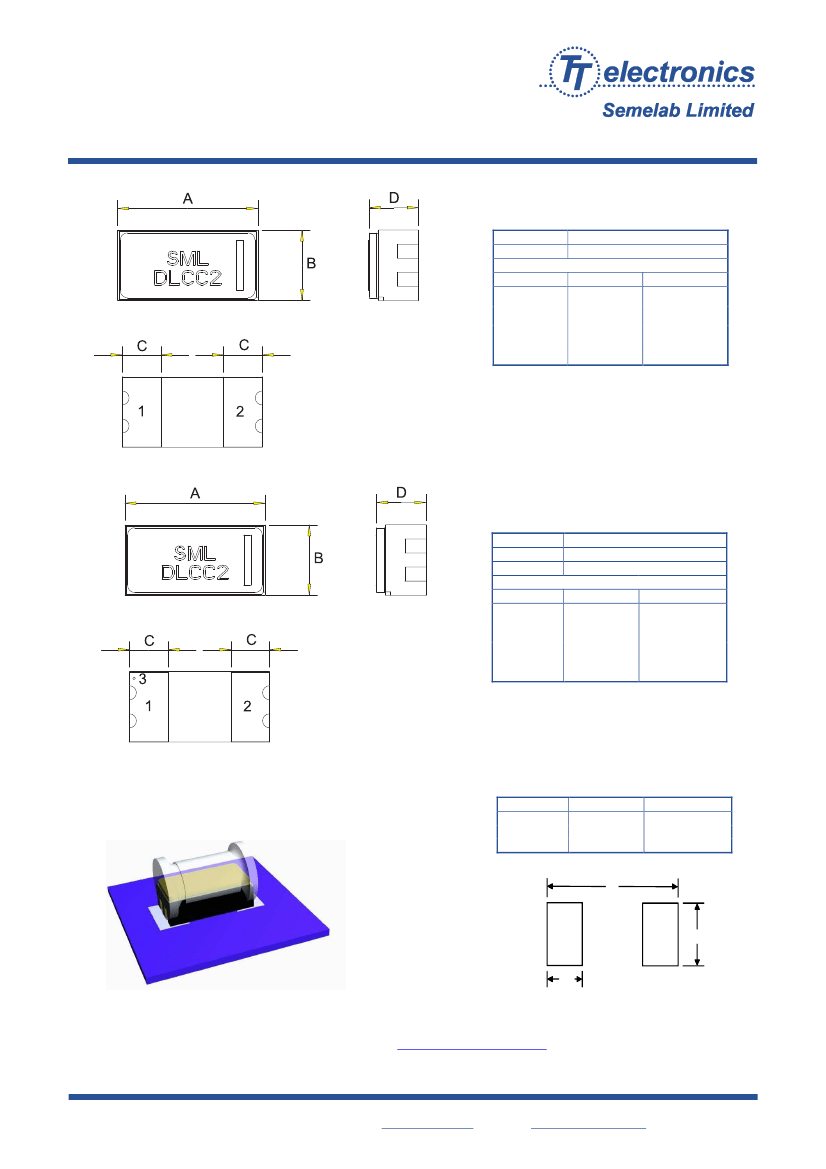

Page 1 of 3
