74026-6430: Description2.00mm (.079") pitch vhdm? board-to-board daughtercard receptacle, right angle,6-row, 2 blade power module, 1 circuit; CategoryThe connector The connector; File Size113KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

74026-6430 Overview

2.00mm (.079") pitch vhdm? board-to-board daughtercard receptacle, right angle,6-row, 2 blade power module, 1 circuit

74026-6430 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	VHDM, SURFACE MOUNT ALSO AVAILABLE
body width	0.236 inch
subject depth	1.057 inch
body length	0.581 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	3 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.0032 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	74026
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

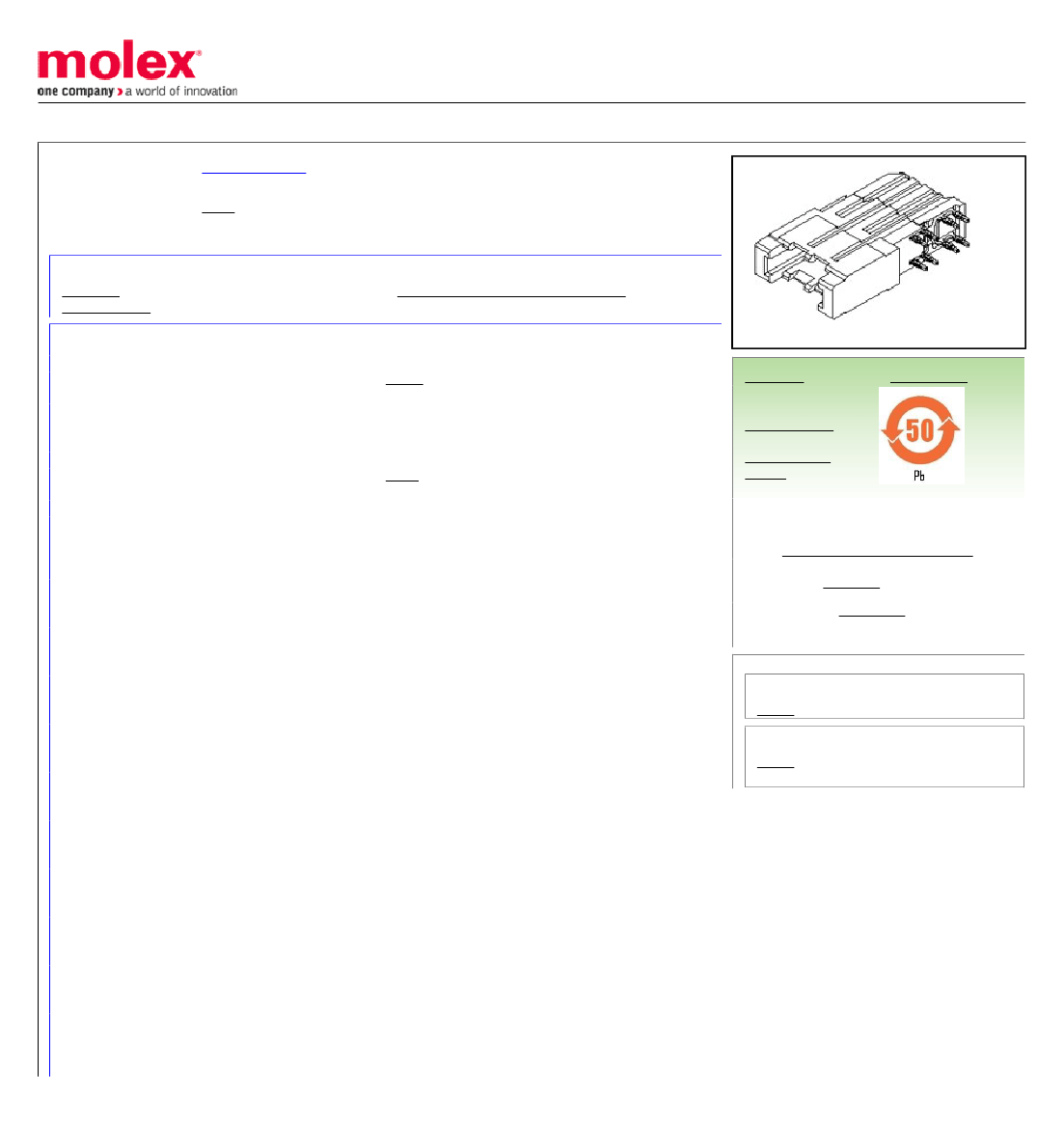

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0740266110

Active

vhdm

2.00mm (.079") Pitch VHDM® Board-to-Board Daughtercard Receptacle, Right Angle,

6-Row, 2 Blade Power Module, 1 Circuit

Documents:

3D Model

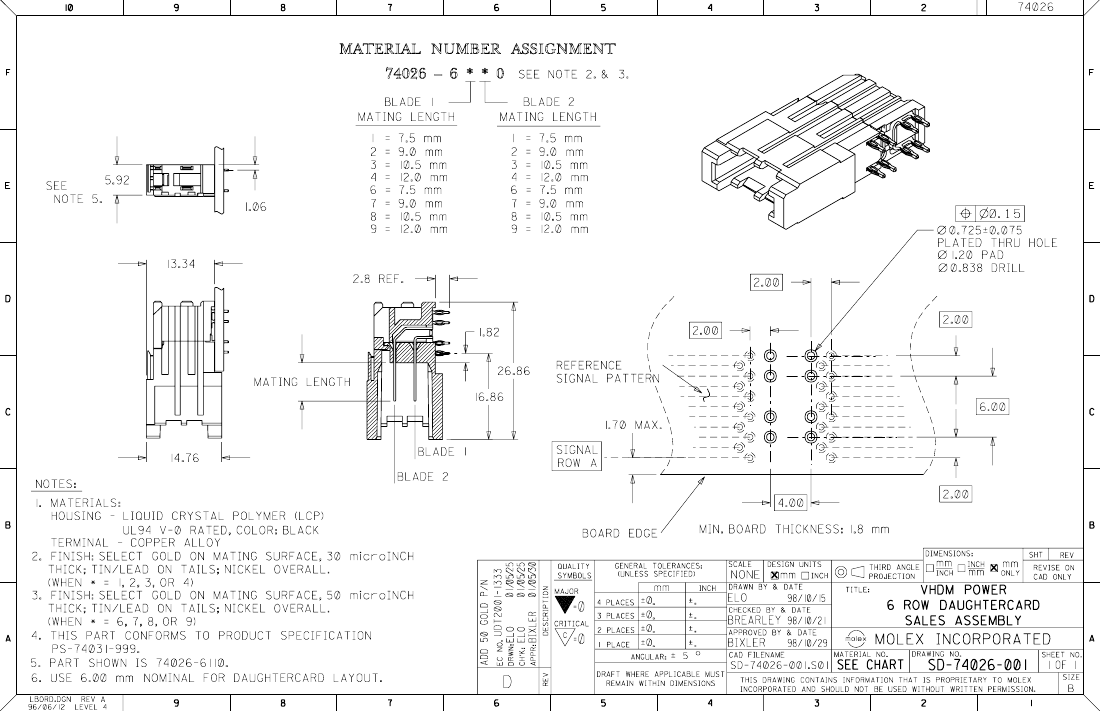

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

74026

Daughtercard

<a href="http://www.molex.com/pdm_docs/ats/

TM-622010999.pdf">Tooling Manual</a>

Daughtercard Receptacle Module, Power, 2-Blade

Power Receptacle

vhdm

VHDM®

N/A

image - Reference only

EU RoHS

China RoHS

RoHS Compliant by

Exemption

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

200

None

High Performance Alloy (HPA)

Gold

Tin-Lead

High Temperature Thermoplastic

N/A

Open Pin Field

Right Angle

None

0.070 In

1.80 mm

Tube

0.079 In

2.00 mm

0.75

35.2

0.88

Yes

-55°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

74026Series

Mates With

74029 VHDM® Board-to-Board Backplane

Receptacle Power Module

Electrical

Current - Maximum per Contact

Data Rate

10A

2.5 Gbps
