37-92500-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 37-92500-24

37-92500-24: DescriptionD type micro connector 50p pcb mini ribbon R/A socket blue; CategoryThe connector; File Size298KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

37-92500-24 Overview

D type micro connector 50p pcb mini ribbon R/A socket blue

37-92500-24 Parametric

Parameter Name	Attribute value
Maker	Kycon
RoHS	no
product	Micro Hoods & Connectors
Number of locations/contacts	50
Current rating	5 A
Contact plating	Gold Flash over Nickel
Shell plating	Nickel
Type	Female
Installation style	PCB
Installation angle	Vertical
Termination type	Solder Pi
Contact material	Phosphor Bronze
Shell material	PBT Thermoplastic
range of working temperature	- 55 C to + 105 C

Preview

Download Datasheet

View All

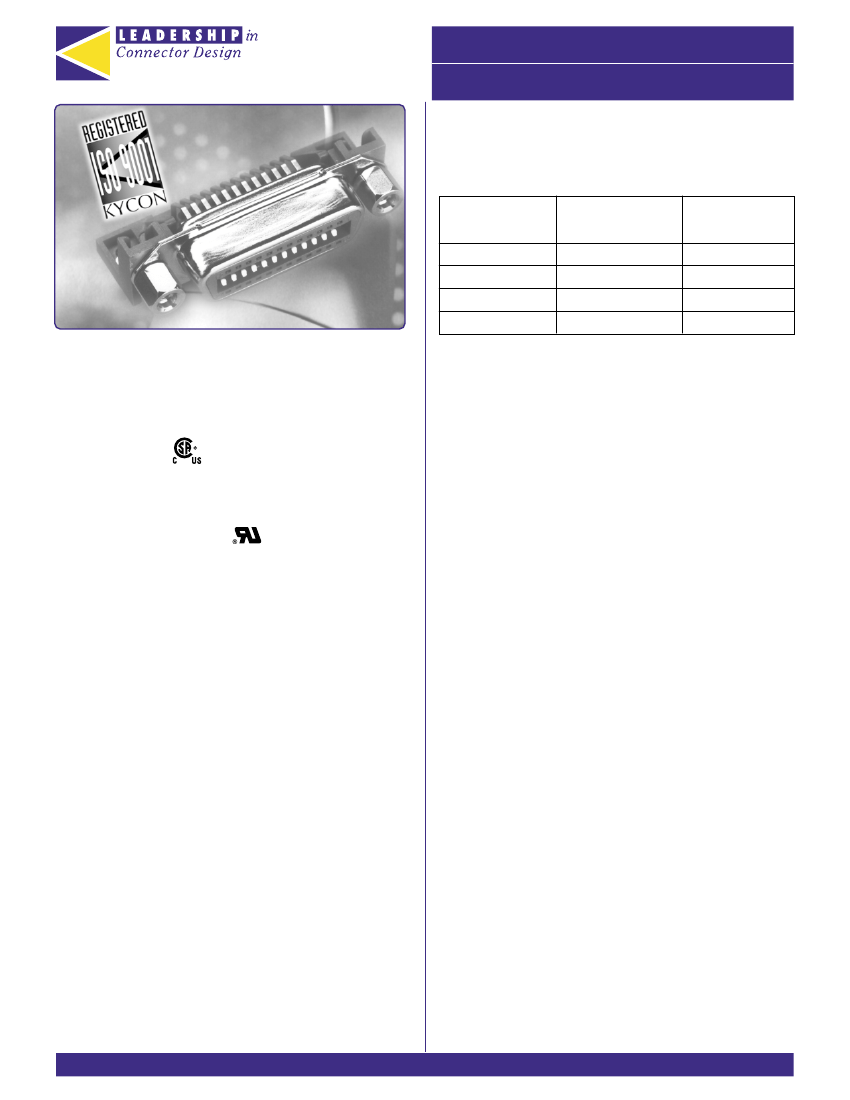

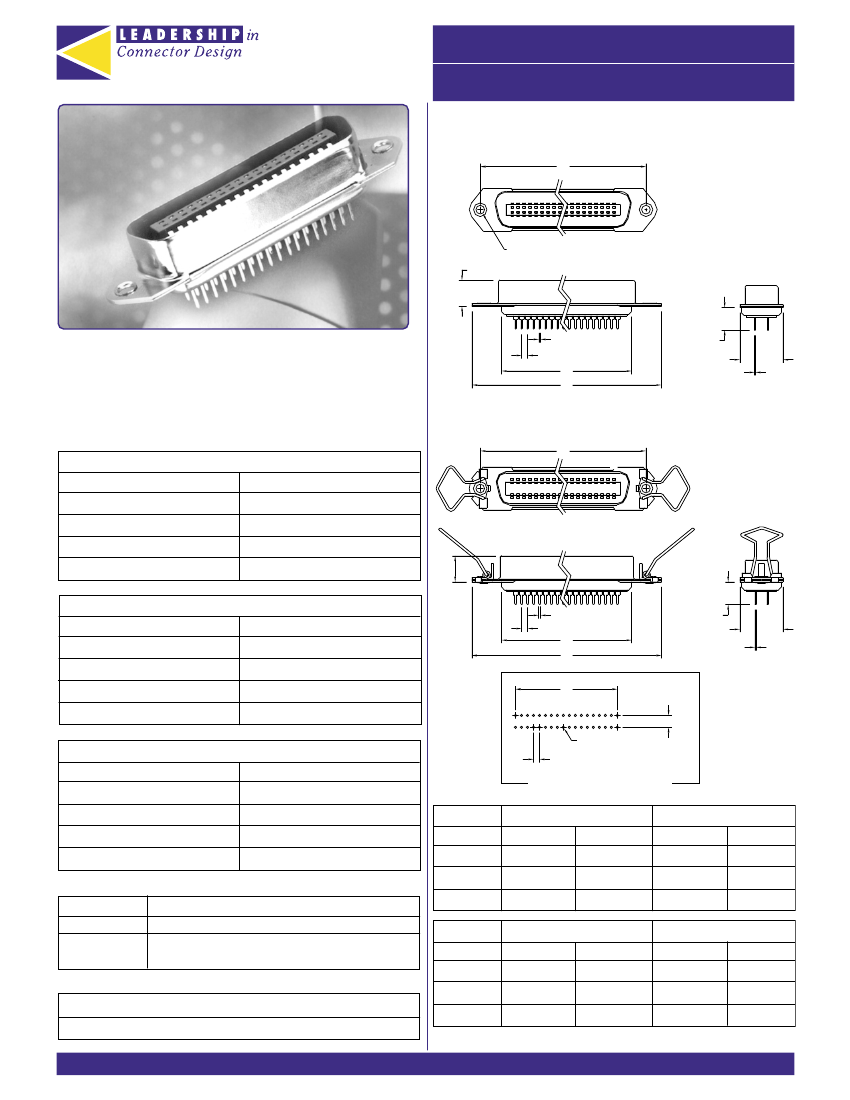

MINIATURE RIBBON CONNECTORS

KYCON

37 Series

Mechanical Characteristics

Insertion and Withdrawal Force

Number of

Contacts

Insertion

Force (kg)

1.4

2.7

3.7

4.6

Withdrawal

Force (kg)

1.0

1.9

2.0

4.3

37 Series

Miniature Ribbon

Connectors

Features

LR78160

Durability

Subjected to 500 Cycles of Insertions and Withdrawals,

After Test, Connectors Meet the Maximum Contact

Resistance Specifications

Electrical Characteristics

Contact Current Rating

5 Amps

Contact Resistance

Voltage Drop, at DC 5 Amps Current,

Shall be 8.5 Millivolts Max

Dielectric Withstanding Voltage

1200 V AC Min

Insulation Resistance

1000 Megohms Min

Temperature Rating

-55°C to + 105°C

• Applications Include Computer Peripherals, Data Processing,

Telecommunications and Industrial Controls

• UL Recognized Material

• Design Meets the Requirements of IEEE-488 and SCSI

Applications

• Plug and Socket Available in 14, 24, 36, and 50 Positions

• Bright Nickel Plated Shells for EMI/RFI Shielding

• D Shaped Connector Mating and Polarization

• CSA/NRTL Certified File No. LR78160

Performance Specifications

Materials and Finish

Shell

Steel Material, Nickel Finish

Insert

PBT Thermoplastic, Blue, 30% Glass

Filled, Self-Extinguishing, 94V-0 Rated

Contact Material

Phosphor Bronze

Contact Finish

Gold Flash Over 0.0001 (0.00254) Nickel

136

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2002

37-92500-24 Related Products

	37-92500-24	37-92360-12	37-92500-24-XJ	37-92240-24
Description	D type micro connector 50p pcb mini ribbon R/A socket blue	D type micro connector 36p pcb mini ribbon R/A socket blue	D type micro connector 50p pcb mini ribbon R/A socket blue	D type micro connector 24p pcb mini ribbon R/A socket blue
Maker	Kycon	Kycon	Kycon	-
RoHS	no	no	no	-
product	Micro Hoods & Connectors	Micro Hoods & Connectors	Micro Hoods & Connectors	-
Number of locations/contacts	50	36	50	-
Current rating	5 A	5 A	5 A	-
Contact plating	Gold Flash over Nickel	Gold Flash over Nickel	Gold Flash over Nickel	-
Shell plating	Nickel	Nickel	Nickel	-
Type	Female	Female	Female	-
Installation style	PCB	PCB	PCB	-
Installation angle	Vertical	Vertical	Vertical	-
Termination type	Solder Pi	Solder Pi	Solder Pi	-
Contact material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	-
Shell material	PBT Thermoplastic	PBT Thermoplastic	PBT Thermoplastic	-
range of working temperature	- 55 C to + 105 C	- 55 C to + 105 C	- 55 C to + 105 C	-
