14150-EZBB-250-0LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 14150-EZBB-250-0LC

14150-EZBB-250-0LC: DescriptionINTERCONNECTION DEVICE, ROHS COMPLIANT; CategoryThe connector The connector; File Size230KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric View All

14150-EZBB-250-0LC Overview

INTERCONNECTION DEVICE, ROHS COMPLIANT

14150-EZBB-250-0LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

™

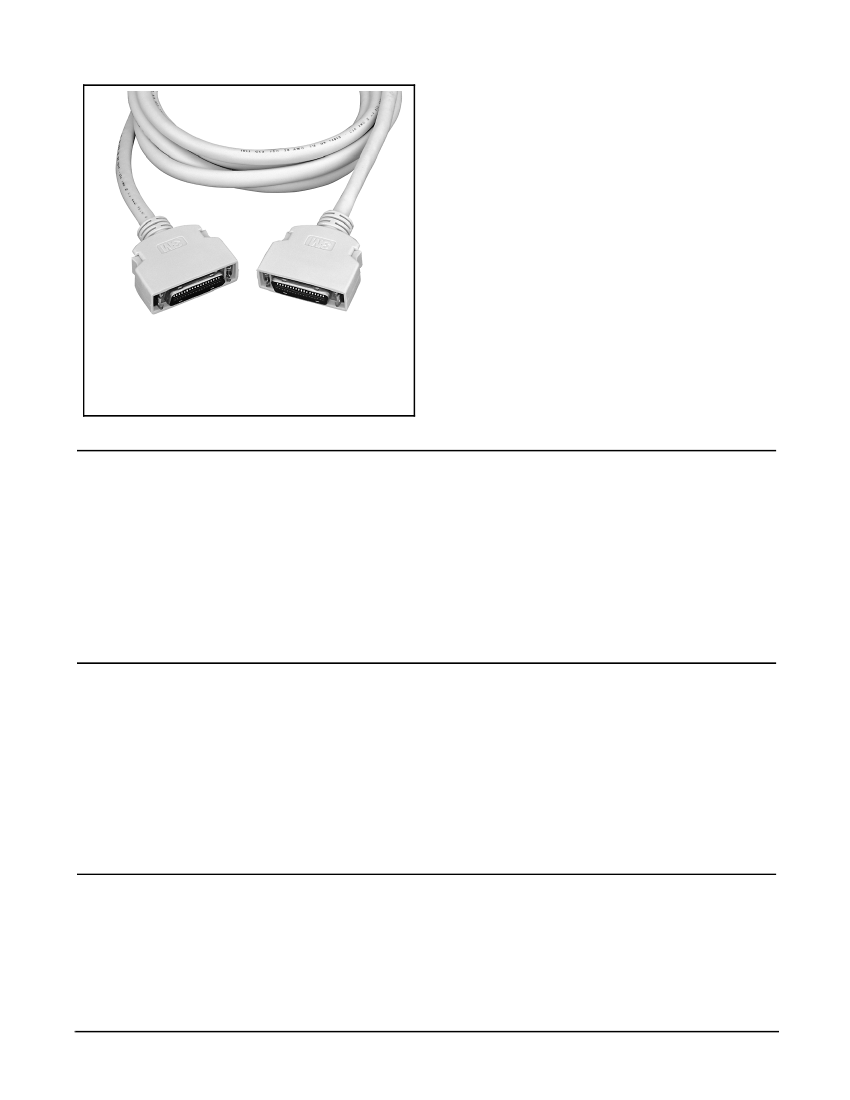

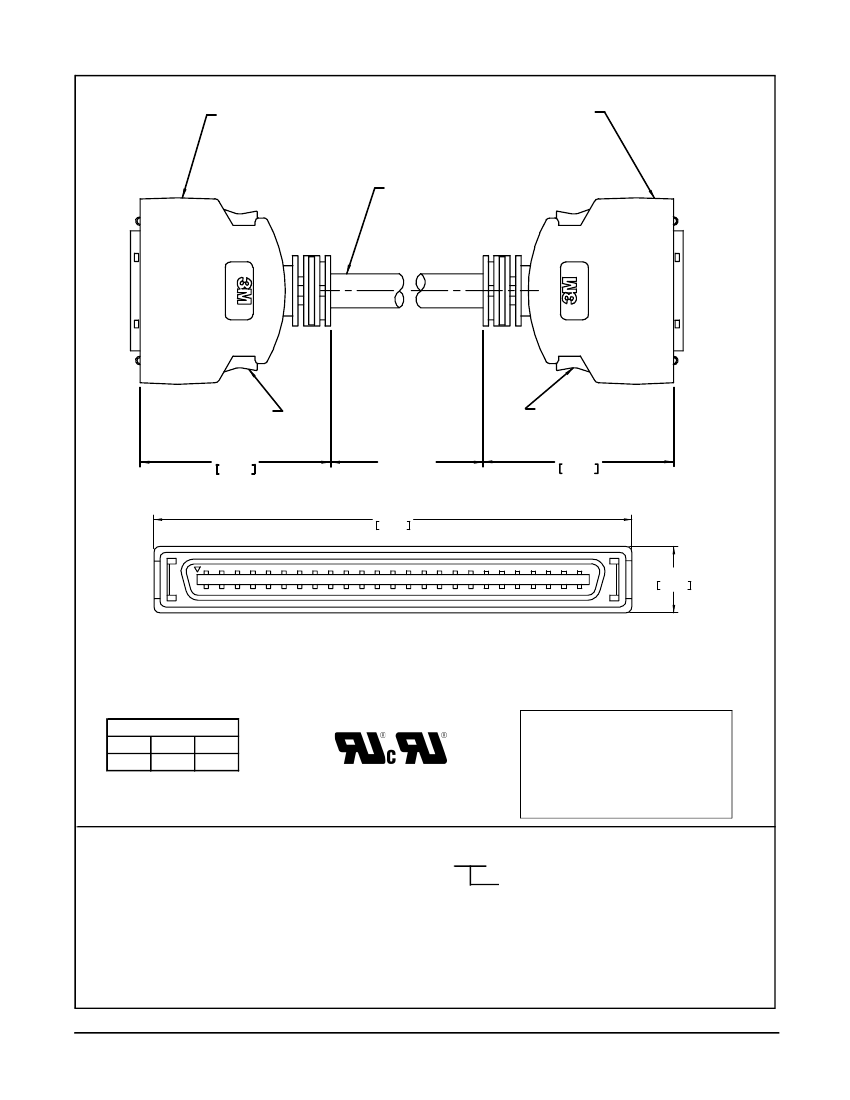

Mini D Ribbon (MDR) Cable Assembly

.050″ High Speed Digital Data Transmission System, 50 Position

14150-EZBB-XXX-0LC

• Supports LVDS Channel Link™ signaling

• Ideal for high speed switch backplanes

• 20 shielded pairs (100 ohm) +6 grounds for high

bandwidth applications

• High density 50 position MDR with rugged

ribbon type contact

• Quick release latches

• RoHS* compliant

Date Modified: January 25, 2007

TS-0959-08

Sheet 1 of 3

Physical

Connector Contact Plating

Wiping Area: 30μ″ [ 0.76μm ] Min. Gold

Shell

Color: Beige

Material: Acrylonitrile Butadiene Styrene (ABS)

Cable

Color: Beige

Jacket Material: Polyvinyl Chloride (PVC)

Flammability: AWM VW-1

Electrical

Voltage Rating:

30 V

Current Rating:

Insulation Resistance:

> 1

at @100 V

Withstanding Voltage:

350 V

RMS

for 1 minute

Individually Shielded Twisted Pairs

Characteristic Impedance:

100

10Ω

Conductor Size:

28 AWG Stranded

Propogation Delay:

1.25 ns/ft [ 4.1 ns/m ]

Environmental

Temperature Rating:

-20°C to +75°C

*"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration

values in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury,

hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by

3M in writing, this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.

UL File No.: E86982

Interconnect Solutions

http://www.3M.com/interconnects/

ChannelLink is a trademark of National Semiconductor Corporation.

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
