D40WS000-20505AFB-G datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> D40WS000-20505AFB-G

D40WS000-20505AFB-G: DescriptionParallel - Fundamental Quartz Crystal, 40MHz Nom,; CategoryPassive components Crystal/resonator; File Size488KB，3 Pages; ManufacturerDB Lectro Inc; Environmental Compliance

Download Datasheet Parametric View All

D40WS000-20505AFB-G Overview

Parallel - Fundamental Quartz Crystal, 40MHz Nom,

D40WS000-20505AFB-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1356745282
Reach Compliance Code	unknown
Other features	AT-CUT; BULK
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	45 Ω
surface mount	YES

Preview

Download Datasheet

View All

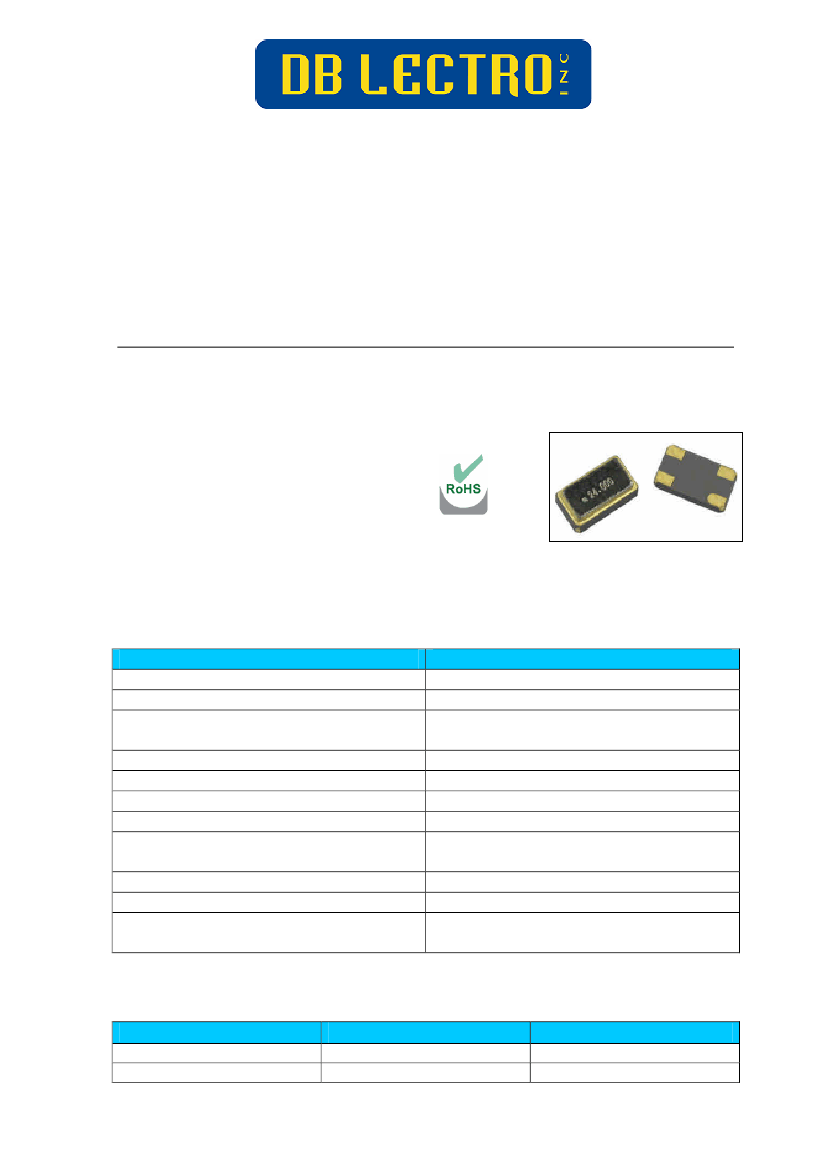

QUARTZ CRYSTAL

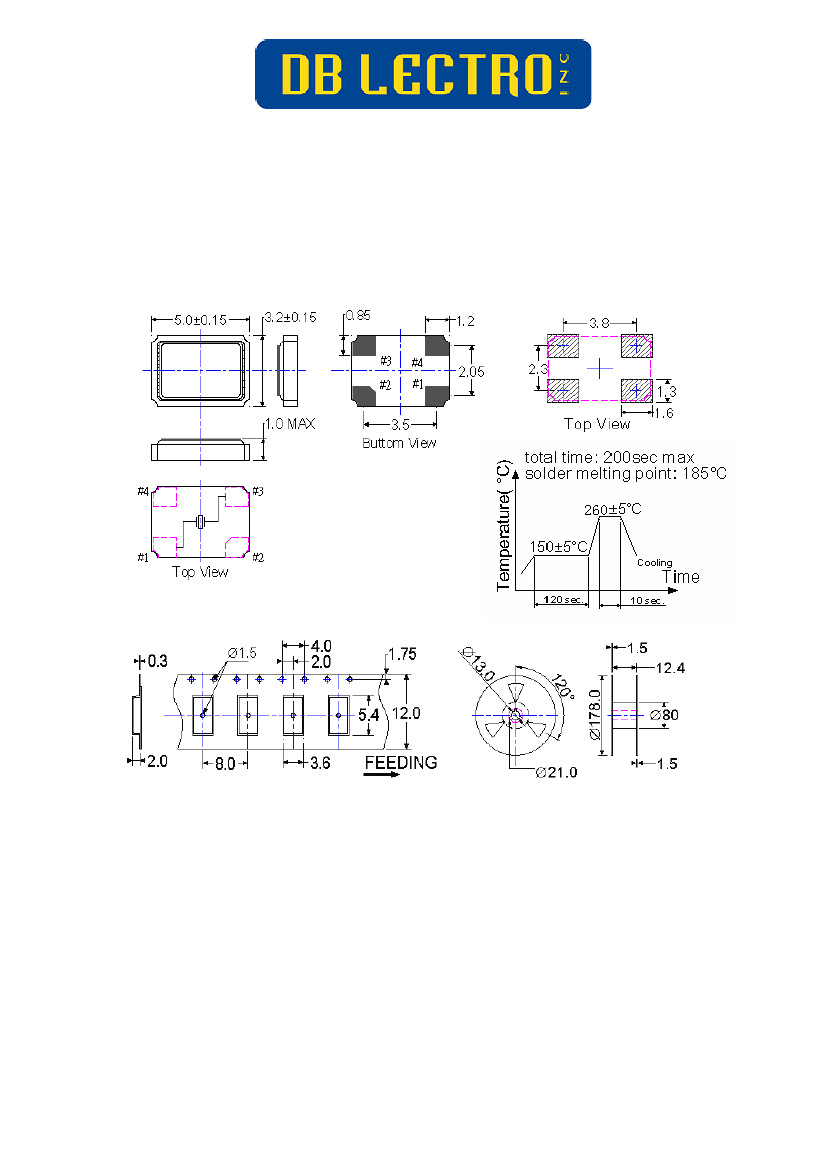

Holder Coder WS, SEAM SEALED CERAMIC 5 X 3.2MM SURFACE MOUNT PACKAGE

FEATURE



Ultra thin, thickness 1.0mm

Leadless type

High precision characteristic covering up to high frequency range

Automatic mounting

Embossed taping specification

Suitable for Reflow soldering

Lead Free & RoHS Compliant

APPLICATIONS



Ideally suited designed for disc drives, NB, PCs and hand-held electronic

products

ELECTRICAL SPECIFICATIONS

Output Frequency Range

Mode

Frequency Tolerance (at 25°C)

Frequency Stability Over Operating

Temperature Characteristics

Storage Temperature Range

Operable Temperature Range

Shunt Capacitance (C

)

Driver Level (Typical)

Load Capacitance(C

)

Equivalent Series Resistance ESR

Aging @25°C

year (Max)

Shock Resistance

10.000 MHz to 40.000 MHz

See Table 1*

±30ppm ~ ±50ppm, or specify

-10°C ~+60°C ±30ppm,

-20°C ~+70°C ±50ppm or specify

-55

°C

to +125

°C

-40

°C

to + 85

°C

5.0 pF Max

10µW~100µW

Series, 16pF, 20pF, 30pF, 32pF, or

specify

See Table 1*

±3ppm, ±5ppm/year

Drop test of 3 times on 2mm

stainless plate from 75cm height

REMARK:

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES

ENGINEER.

Frequency and Equivalent Series Resistant

Frequency Range

10.000 MHz ~ 30.000 MHz

30.000 MHz ~ 40.000 MHz

E.S.R. (Ω)

60 Max

45 Max

Mode

Fundamental / AT

DB Lectro Inc. 3755 Place Java, Suite 140, Brossard, Québec, J4Y 0E4, Canada - T: 1-450-444-1424 / F: 1-450-444-4714 / www.dblectro.com
