300206AG

Description
5.08mm (.200") pitch KK? PC board connector, right angle mount style A, 0.5??m (20??") gold (Au), 6 circuits
File Size146KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

300206AG Overview

5.08mm (.200") pitch KK? PC board connector, right angle mount style A, 0.5??m (20??") gold (Au), 6 circuits

This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0010101064
Active
kk
5.08mm (.200") Pitch KK® PC Board Connector, Right Angle Mount Style A, 0.5µm
(20µ") Gold (Au), 6 Circuits
Documents:
3D Model

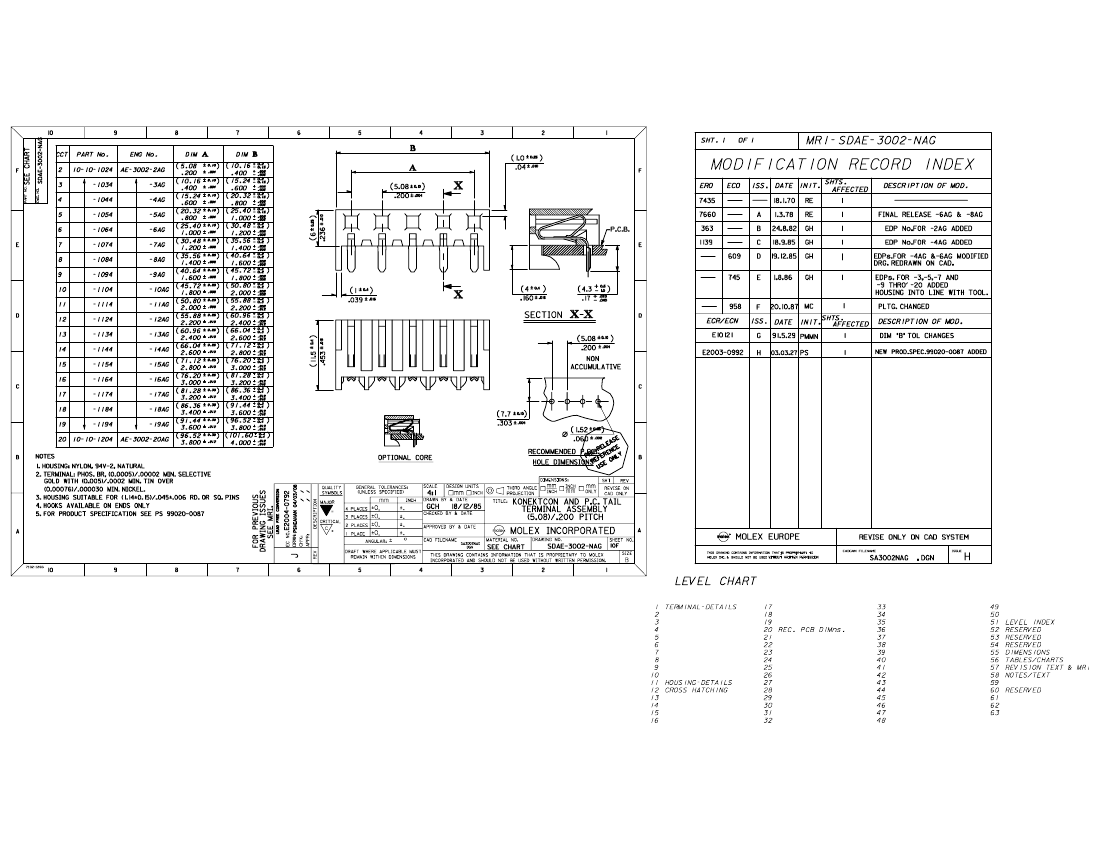

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
3002
Board-to-Board
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
6
Natural
25
94V-2
No
Phosphor Bronze
Gold
Gold
Nylon
1
Right Angle
0.169 In
4.30 mm
No
Yes
0.062 In
1.60 mm
Tray
0.200 In
5.08 mm
15
0.375
2
0.05
Yes
0°C to +75°C
Through Hole
Search Parts in this Series
3002Series
Mates With
3003 , 2599 , 3008
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)

300206AG Related Products

300206AG 0010101064
