300204A: Description5.08mm (.200") pitch KK? PC board connector, right angle mount style A, 1.0??m (40??") tin (Sn), 4 circuits; File Size127KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

300204A Overview

5.08mm (.200") pitch KK? PC board connector, right angle mount style A, 1.0??m (40??") tin (Sn), 4 circuits

Preview

Download Datasheet

View All

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0010101041

Active

5.08mm (.200") Pitch KK® PC Board Connector, Right Angle Mount Style A, 1.0µm

(40µ") Tin (Sn), 4 Circuits

Documents:

3D Model

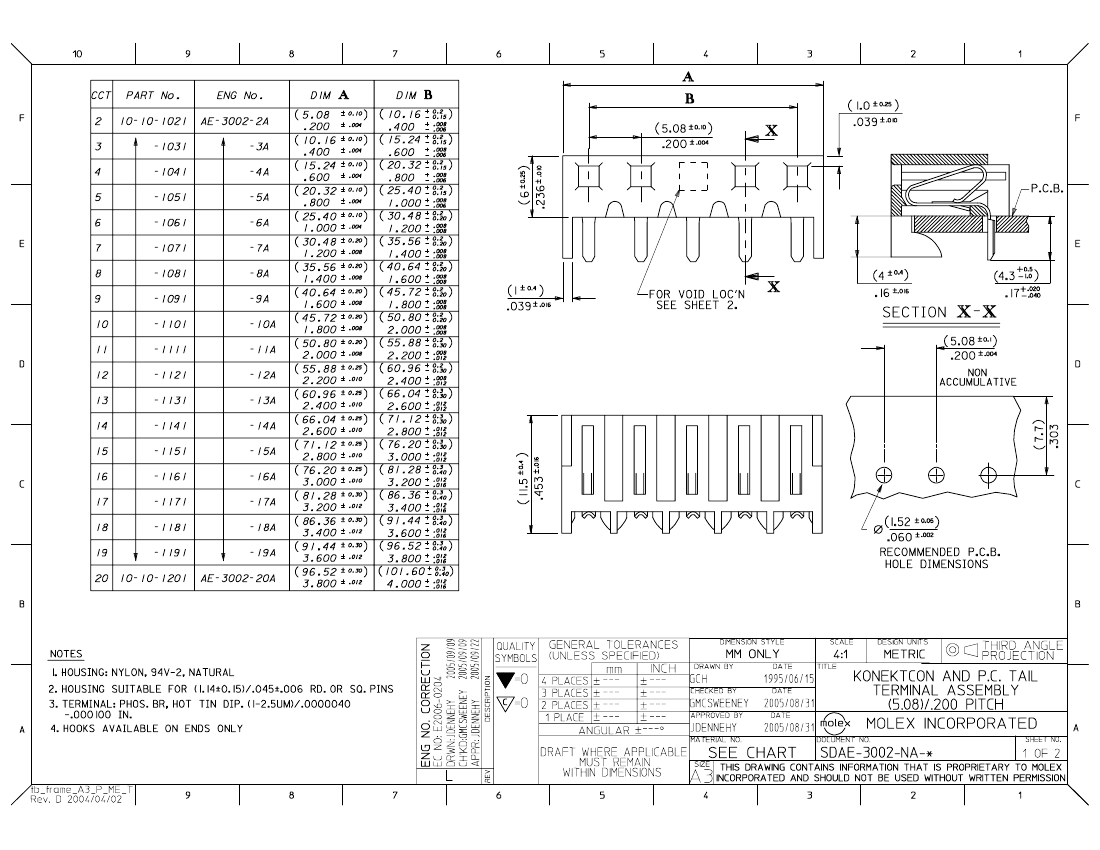

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

3002

Board-to-Board

KK®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Natural

94V-2

Phosphor Bronze

Tin

Nylon

Right Angle

0.169 In

4.30 mm

Yes

0.062 In

1.60 mm

Tray

0.200 In

5.08 mm

40.00

1.000

40.00

1.00

Yes

0°C to +75°C

Through Hole

Search Parts in this Series

3002Series

Mates With

3003 , 2599 , 3008

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

300204A Related Products

	300204A	AE-3002-4A
Description	5.08mm (.200") pitch KK? PC board connector, right angle mount style A, 1.0??m (40??") tin (Sn), 4 circuits	5.08mm
