300212C: Description5.08mm (.200") pitch KK? PC board connector, top entry mount style C, 1.0??m (40u") tin (Sn), 12 circuits; File Size172KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

300212C Overview

5.08mm (.200") pitch KK? PC board connector, top entry mount style C, 1.0??m (40u") tin (Sn), 12 circuits

Preview

Download Datasheet

View All

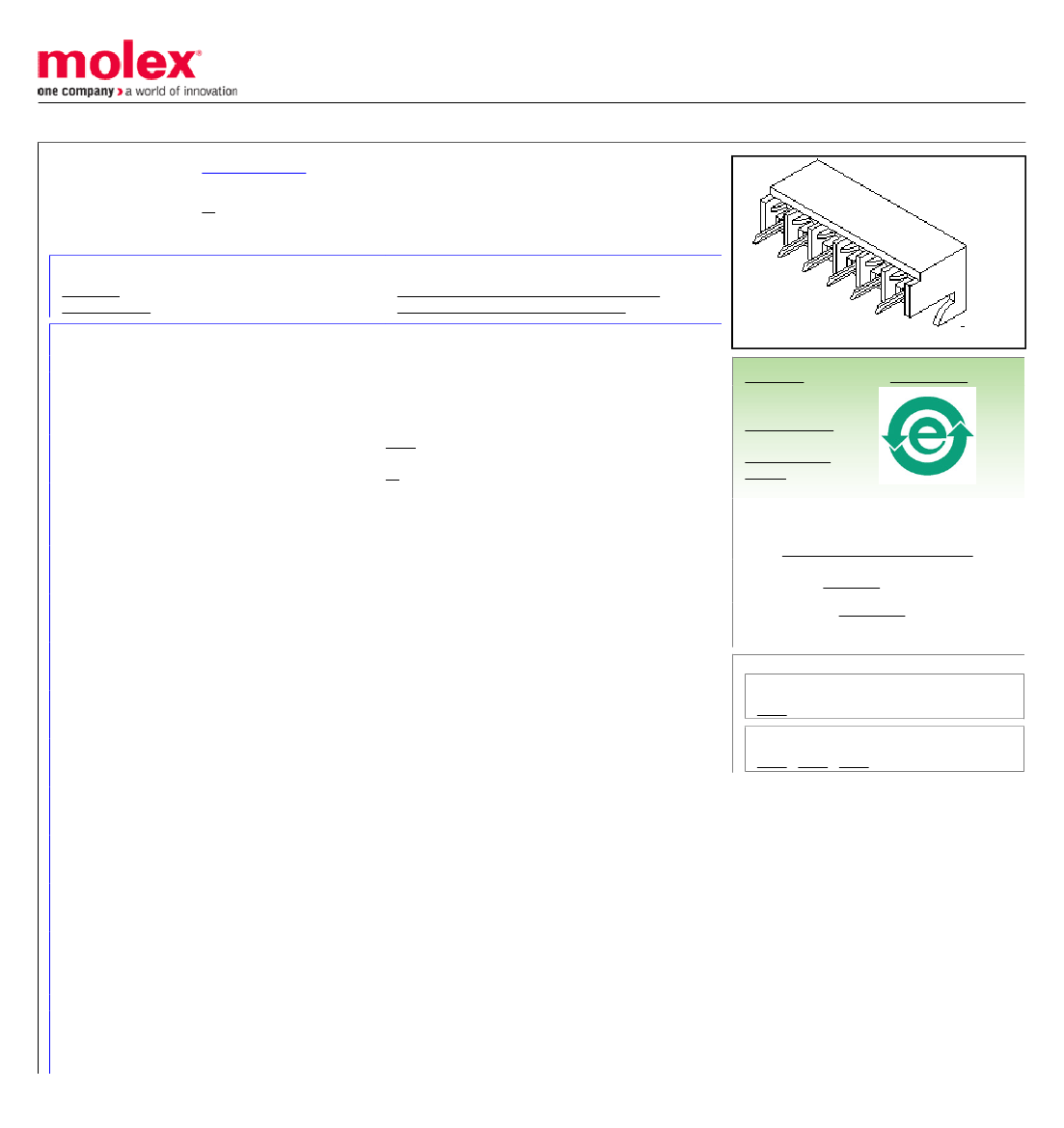

This document was generated on 05/21/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0010101123

Active

5.08mm (.200") Pitch KK® PC Board Connector, Top Entry Mount Style C, 1.0µm

(40µ") Tin (Sn), 12 Circuits

Documents:

3D Model

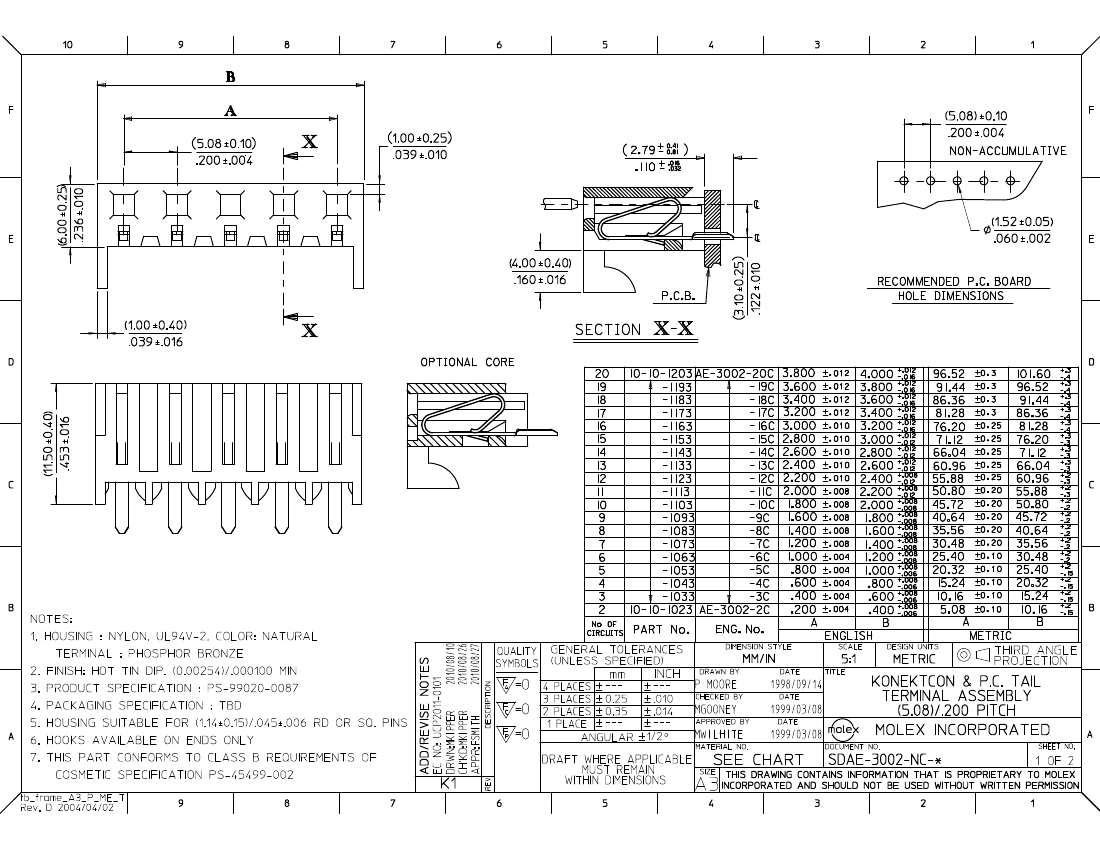

Drawing (PDF)

Product Specification PS-99020-0087 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

3002

Board-to-Board

KK®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Natural

94V-2

Phosphor Bronze

Tin

Nylon

Vertical

0.110 In

2.79 mm

None

0.062 In

1.60 mm

Tray

0.200 In

5.08 mm

40.00

1.000

40.00

1.00

0°C to +75°C

Through Hole

Search Parts in this Series

3002Series

Mates With

3003 , 2599 , 3008

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)
